AC digital clamp meter New 6052 clamp meters 5999 AC2000A with Max/Min NCV V.F.C multimeter clamp meter

VICTOR 6052 Digital Amper Clamp Meter Auto Range 2000A AC larger Current Voltage frequency capacitance Diode tester Clamp Meters

1. General

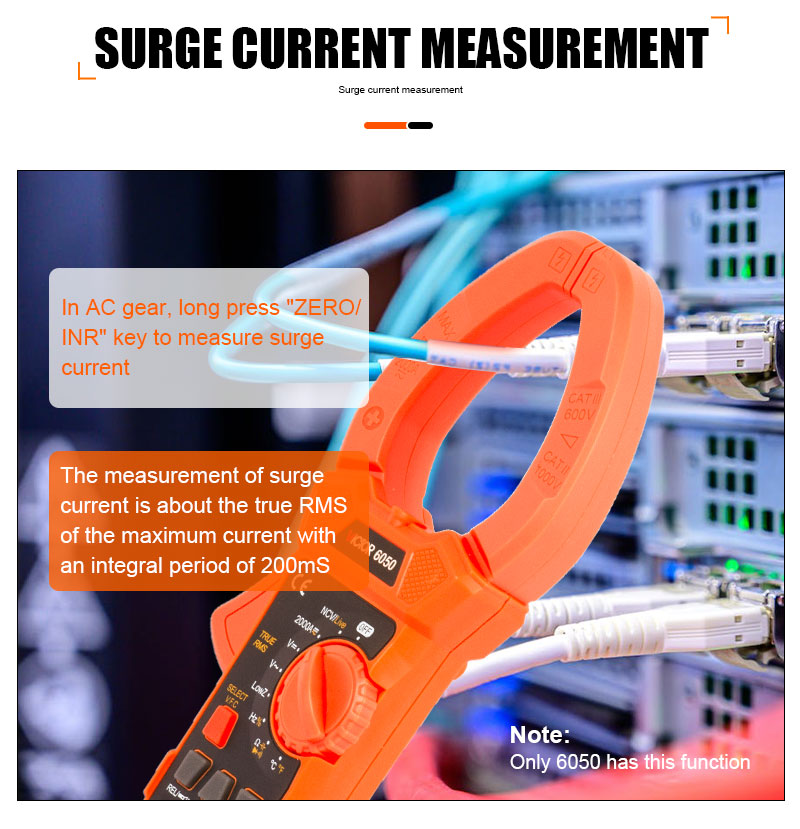

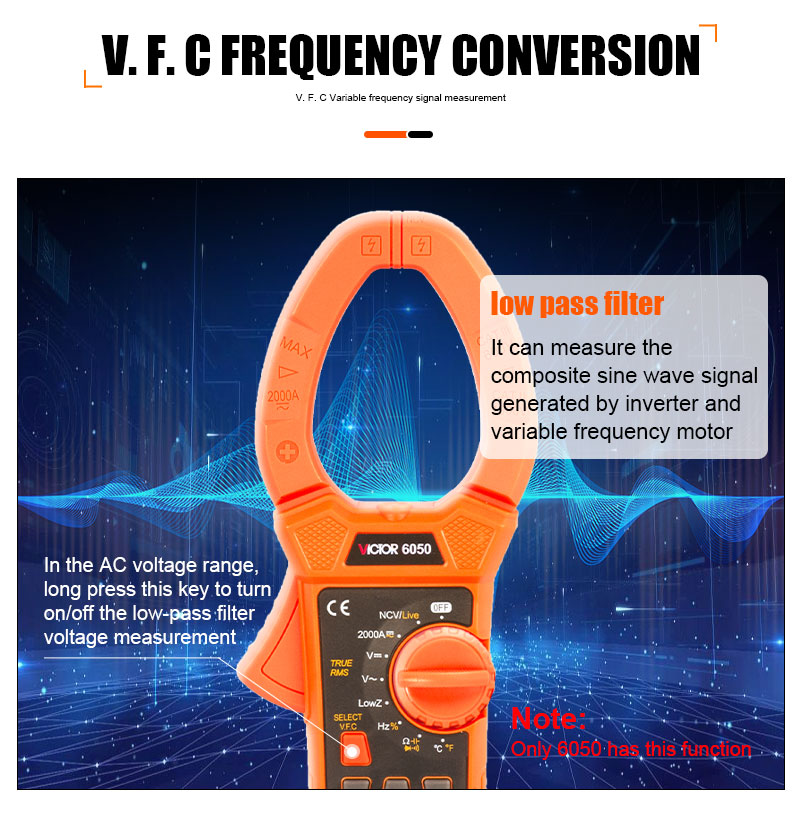

This instrument is a 6000 counts hand-held automatic range True RMS digital clamp meter. The circuit design of the meter takes the large-scale integrated circuit ∑/△ analog-to-digital converter (ADC) as the core, and it has the full-range overload protection. It can be used to measure AC and DC voltage, low-pass filter V.F.C, low-impedance Low Z voltage, AC and DC current, resistance, diode, continuity test, capacitance, frequency, duty cycle, temperature and other parameters, at the same time, it has the data hold, relative value measurement, surge current measurement function, flashlight function, NCV function, Live line judgment, low voltage display and automatic shutdown function.

2. General Features

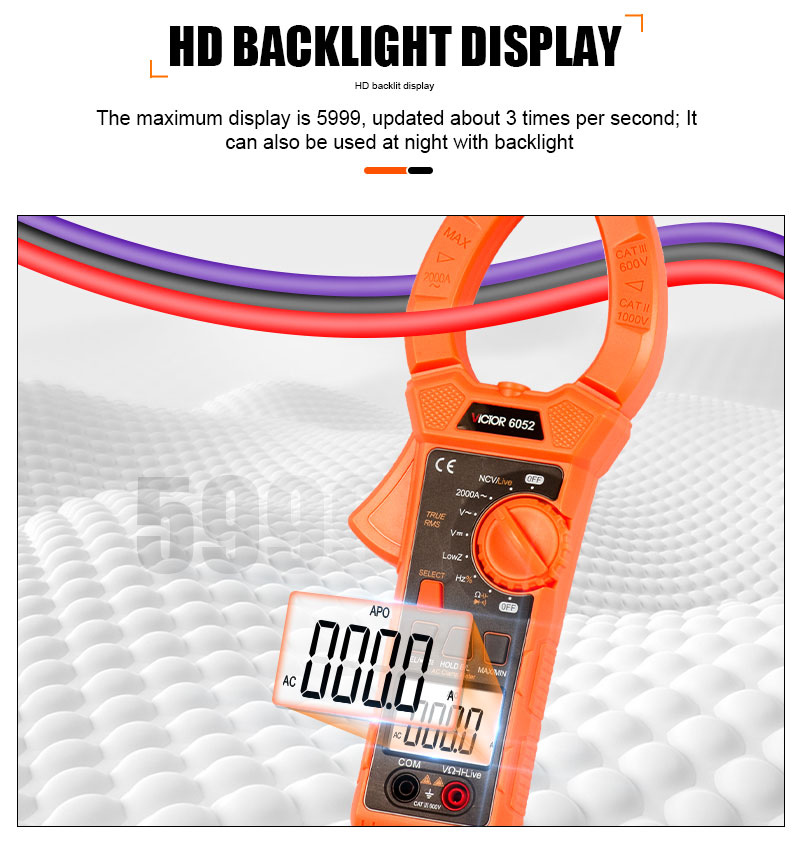

1. Max. Display: 5999, sampling rate 3 times / sec.

2. Polarity indication: The positive and negative polarities automatically display.

3. Over load indication: LCD displays OL or -OL

4. Low battery indication: “” symbol displays

5. Operation temperature: 0～40℃, relative humidity <75%

6. Storage environment:-10℃~50℃, relative humidity <80%RH;

7. Power:2*1.5V AAA battery LR03

8. The Max. opening size of the clamp: Diameter 58mm

9. Max. measuring current wire: Diameter 52mm

10. Size: 273×102×47 mm

11. Weight: approx.420g (including batteries)

3. Accessories

• 1.5V AAA battery 2pcs

l Manual 1pc

l Test lead 1pair

l Carrying bag 1pc

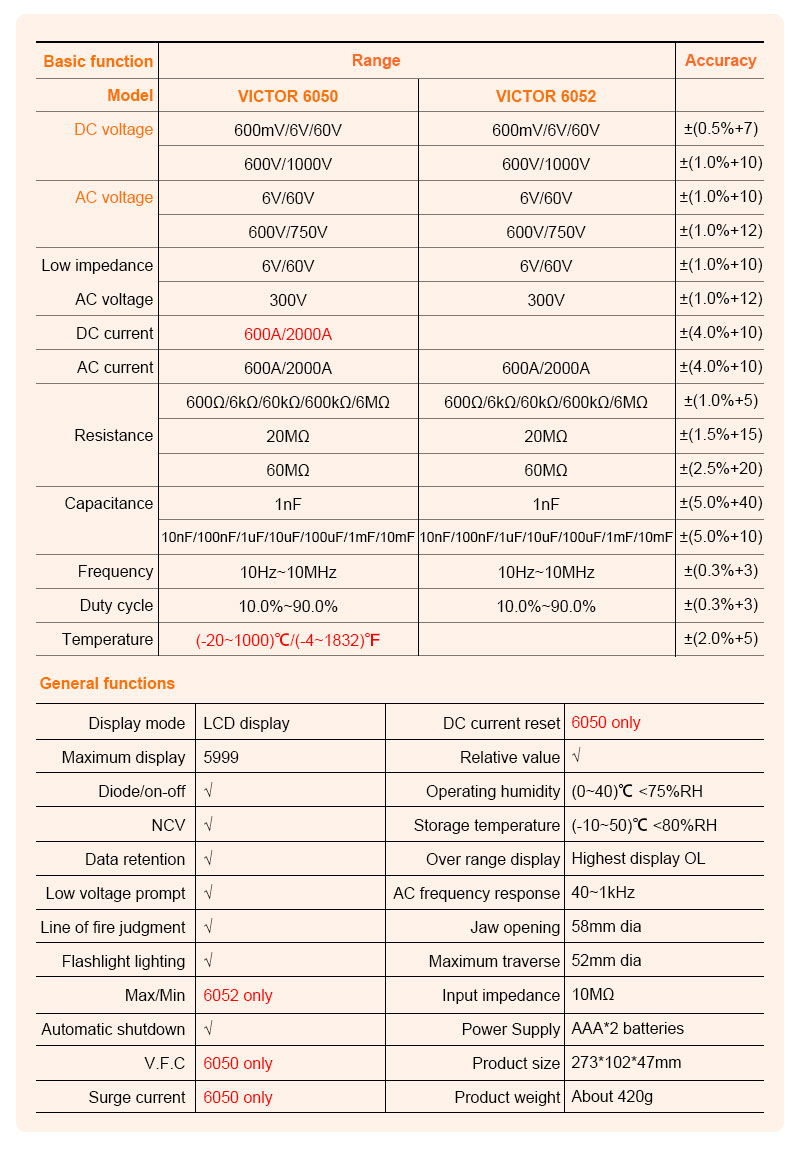

3. Technical

General Characters

VICTOR Instruments is a brand  belongs to Xi'an Beicheng Electronics Co.Ltd. (former Victor Instruments ) which was established in 1980s,VICTOR specializes in producing test instruments and especially digital multimeters. Our products include analog and digital multimeters, clamp-meters, calibrators , megohmmeters, thermometers, tachometers, vibrometers, lux meters, function generators, frequency counters, oscilloscopes and other electronic testing and measuring equipment.

We also provide electronic test tools, measurement solutions, environmental products and ODM and OEM services to specific customers.

As before, our factory(Shenzhen VICTOR Hi-Tech Co.,Ltd.) is in Shenzhen city, To expand production demand,we moved to Xi'an city in 2013. And then we registered two new trademarks (YITENSEN and Ruoshui) in year 2017 for promotion of our VICTOR products to overseas market.

With over 30 years , VICTOR instruments has been focused on the full range of electrical testing and analyze instruments ,it is renowned as one of the largest manufacturers and suppliers of innovative, quality handheld test, measurement and inspection tools in the world.

Nowadays, we have agents and representatives in every city of China. Meanwhile, we successfully enter the overseas market in many countries. We strive to provide the best products and most considerate services to all customers.

Our Manufacturing Capability

VICTOR Instruments are designed and manufactured in our Xi'an Beicheng manufacturing center, a modern, automated, high-tech industrial park produces digital multimeter 10,000pcs/day , with pass rate 99.6%. With more than 300 skilled workers and 50 R&D staff ,our manufacturing center covers an area of more than 30,000 square meters , made up of : -8 dust-free workshops; -5 fully automatic production lines -12 sets of state-of-the-art production equipments.
