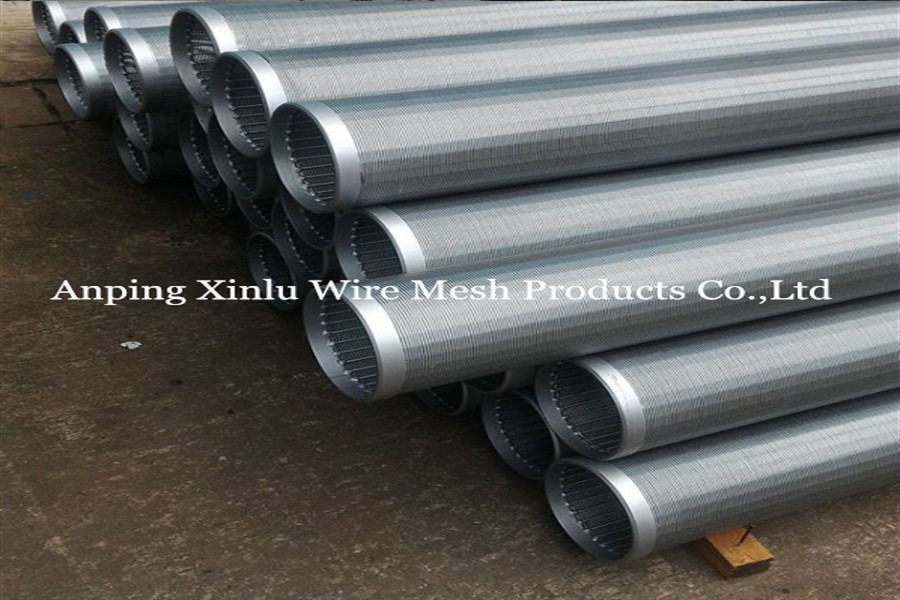

Wedge Wire Screen Tube/pipe Johnson Screen Mesh with V Wire Support
in Round Wire Shape
Product Description:
Wedge Wire Well Scren Tube (Strainer Pipe) is a kind of filtered
water tubing with the perforation. it can use with the deep well
pump, dive the water pump, also may use in the water-treating
equipment, the environmental protection, the sea water transforms
into the industrial water and life use water desalination
treatment, running water treatment, water softening treatment, the
petroleum industry: The petroleum product terminal filters and the
chemical acid, the alkali liquid filters, the ethyl alcohol and so
on the organic solution recycling filters.
Features:
1. Screens with high open area are more suitable for the
construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor
groundwater's infiltration. Abundant water shall reduce the water
level's down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of
groundwater entering into the screen much slower than any other
filtration apparatus, which will avoid sand's entering into screen
because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater's entering into screen with higher open
area is much easier than the entering into lower open area screen.
The slow water flow shall extend the life span of wells.
Technical Parameters:
| Product Name | Johnson Screen Mesh |
|---|
| Screen Diameter | 2" 3" 4" 6" 8" 9" 10" 12" 14" 16" |
| Profile Wire | #63 (1.5*2.5mm), #93 (2.3*3.5mm), #118 (3.0*4.6mm), Etc |
| Strength | High Mechanical Strength |
| Corrosion Resistance | Excellent Corrosion Resistance |
| Material | Low Carbon Steel, Iron, Mild Steel, Stainless Steel (SS-205, 304,
316, 904L, 2205, 2507, C276 Or Other Metal Wire, Etc) |
| Surface Treatment | Polishing, Galvanized |
| Key Words | Wedge Wire Screen, V Wire Screen, Johnson Wire Screen, Mine Screen
Mesh, Slot Wedge Wire Screen, Wedge Wire Water Filter Nozzle, Wedge
Wire Screen Tube/pipe, Wedge Wire Screen Cylinder, Slot Wedge Wire
Pipe, Wedge Wire Sieve Bend Screen |
| Screen Pipe Shape | Wedge Wire Screen Tube, Wedge Wire Screen pipe, Wedge Wire Screen
Cylinder, Wedge Wire Screen Basket, v wire slot tube, wire wrapped
screen pipe, sand control well screen, continuous slot screens,
dewatering well screens |
Applications:
Application in the water well, oil, mining, coal, oil, chemical
fertilizers, food, environmental protection, sewage treatment, food
filter screen mesh and other industries to sew, oil filter, wire
net in salt industry,etc.
Customization:
Johnson Screen Mesh Customization Service - Xinlu Wire Mesh
Brand Name: Xinlu
Model Number: Customized 1" - 40"
Place of Origin: Anping County Xinlu Wire Mesh Produts Co.,Ltd
Certification: CO, FORM E, FORM F, SGS
Minimum Order Quantity: 10pcs
Packaging Details: inside transparent plastic bag, outside woven
bag, or bubble bag, or wooden box, or pallet
Delivery Time: 5-20days according to the order quantity
Payment Terms: T/T, cash, or others
Product Attributes
- Screen Pipe Shape: Wedge Wire Screen Tube/pipe, Wedge Wire Screen
Nozzle, Wedge Wire Screen Cylinder, Wedge Wire Screen Basket And
Wedge Wire Screen Wedge Wire Screen Plate/panel
- End Connection: Threaded, Welded Rings, Flange
- Wire Shape: V Shape, Wedge Wire Shape, Round Wire Shape
- Strength: High Mechanical Strength
- Key words: Wedge Wire Screen, V Wire Screen, Johnson Wire Screen,
Mine Screen Mesh
Emphasized Keywords: Wedge Wire Filter Candle, johnson water wire
screen pipe, Slot Wedge Wire Screen Tube, Stainless Steel Johnson
Screen Pipe, Wedge Wire Screen Welding Machine, Wire Mesh Screen
Filter, Customized Wedge Wire Screen, Wedge Wire Screen Strainer,
Wedge Wire Screen Tube Supplier
Packing and Shipping:
Johnson Screen Mesh Packaging and Shipping
Packaging:The Johnson Screen Mesh will be packed in wooden cases or cardboard
boxes to ensure safe transportation. The packaging can also be
customized according to customer requirements.
Shipping:The Johnson Screen Mesh will be shipped by sea, air, or land
depending on the customer's preference and location. We will work
with reliable logistics companies to ensure timely and secure
delivery of the product.
