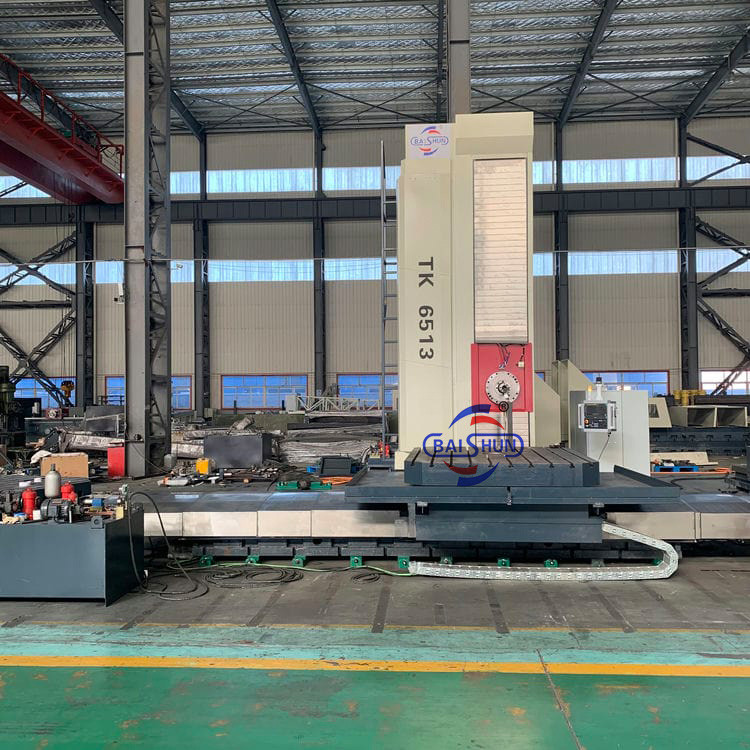

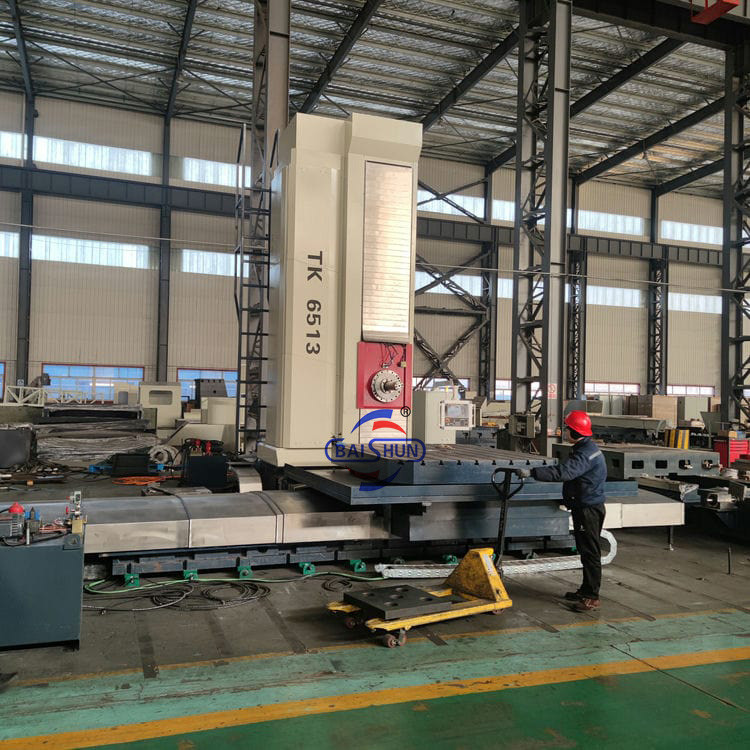

    TK6513 Cnc Gantry Horizontal Boring And Milling Machine Lathe Heavy Duty Planer Type

    Ask Lasest Price
    Brand Name : BAISHUN MACHINERY
    Model Number : TK6513
    Price : USD98000/Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 Set/Sets per Month
    Delivery Time : 3 month
    Certification : ISO
    • Product Details
    • Company Profile

    TK6513 Cnc Gantry Horizontal Boring And Milling Machine Lathe Heavy Duty Planer Type

    Heavy Duty Planer Type TK6513 Cnc Gantry Horizontal Boring And Milling Machine Lathe

    CNC planer type boring and milling

    The CNC planer type boring and milling lathe are machines with large torque, high efficiency, high rigidity and advanced technologies. Per user’s requests, the machines can match with different controllers,different precision requirements, different sizes of tables to form different models of boring machines. This series of boring mills are suitable ‘or machining large, medium sized box shape, frame structure or mould parts, and can perform milling, boring, drilling, winching, tapping etc after one clamping. The machines controls 7 axes with 4 axes simultaneous and allows circular interpolation and 3-D curved surface machining. Equipped with milling head, face plates and other devices, the series of machines have enlarged machining capabilities. The spindle has cooling case to limit the head in spindle.


    Technical Specification

    ItemUnitTK6511TK6513TK6516
    Spindle diametermm110130160
    Spindle taperISO 50ISO 50ISO 50
    Max. spindle speedrpm10-20002-20002-1500
    Motor power-ServoKW17/22.522/3030/40
    Table loading capacityKg60001000020000
    Table sizemm1200*1400
    1400*1600
    1400*1600
    1600*1800
    1400*1600
    1600*1800
    1800*2000
    Cross travel of table -X axismm2000(op: 3m, 4m)2000(op: 4m, 5m)2500(op: 4m,5m)
    Vertical travel of spindle head stock-Y axismm1500(op: 2m, 3m)2000(op: 3m, 4m)2000(op: 3m, 4m)
    Longitude travel of spindle-Z axismm6008001000
    Travel of column-V axismm120016001600
    Table rotary indexing-B axis°360360360
    Travel speed of table Xmm/min50000.5-60000.5-6000
    Tool magazinepcs40/6040/6040/60
