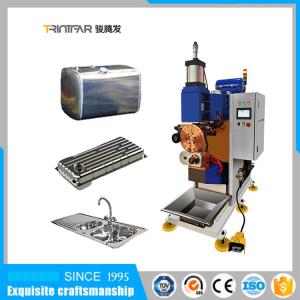

    Automatic Longitudinal Tank And Barrel Circular Roller Seam Welding Machine

    Ask Lasest Price
    Brand Name : TRINTFAR
    Model Number : FM-20
    Certification : CE
    Price : USD 5000-8000 set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 500 per year
    Delivery Time : Within 90 days of the final payment
    • Product Details
    • Company Profile

    Automatic Longitudinal Tank And Barrel Circular Roller Seam Welding Machine

    Automatic longitudinal tank and barrel circular roller seam welding machine

    Feature
    1. Contains two standard models: horizontal seam seam welding machine and longitudinal seam seam welding machine;
    2. A machine can also have both transverse seam welding and longitudinal seam welding. As long as you change the direction of the upper electrode wheel and change the lower electrode arm, you can easily switch between the two welding methods;
    3. The single wheel is driven by three-phase stepless speed regulation, the welding speed is convenient to adjust, and the tangent speed of the upper and lower wheels is consistent;
    4. Adopt adjustable stroke cylinder for pressure to avoid collision and damage of upper and lower electrodes;
    5. It is widely used in metal manufacturing and processing industries such as hardware, home appliances, automobiles, motorcycle fuel tanks, basins, sinks, cans, etc.
    Specification
    Item
    Model
    Maximum Short Current
    KA
    Rated Duty Cycle
    %
    Secondary Voilage
    V
    Rated Power
    KVA
    Electrode
    Pressure
    N
    Electrode
    Stroke
    mm
    Cooling Water
    Lmim
    FM-20
    20
    50
    ≈9.8
    ≤50
    4700
    80
    24
    FM-25
    25
    50
    ≈9.8
    ≤70
    4700
    80
    24
    FM-40
    40
    50
    ≈11.6
    ≤120
    7300
    80
    30
    FM-60
    60
    50
    ≈11.6
    ≤160
    12000/18000
    100
    50
    FM-80
    80
    50
    ≈11.6
    ≤240
    12000/18000
    100
    50
    FM-120
    120
    50
    ≈11.6
    ≤300
    18000
    100
    60
