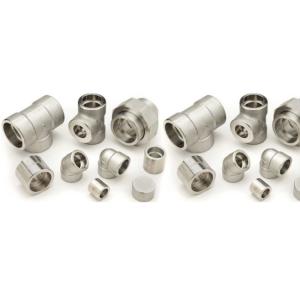

Stainless Steel Pipe Fittings Socket Weld On Threaded Pipe Fittings ASME B16.11

Stainless Steel Pipe Fittings Socket Weld On Threaded Pipe Fittings ASME B16.11

Stainless steel pipe fittings are used to connect, control, or change the direction of stainless steel pipes. They are commonly used in plumbing systems, industrial processes, and various applications where a secure and leak-free connection is required.

Stainless steel pipe fittings offer several advantages, including:

Corrosion resistance: Stainless steel is highly resistant to corrosion, making it suitable for use in various environments, including those with exposure to chemicals, moisture, and high temperatures.

ASME B16.11 forged fittings can be made of materials consisting of forgings, bar, seamless pipe, or seamless tubular products. These materials shall conform to the requirements for the WP seamless construction materials of ASTM specifications A234, A403, A420, A815, or B366, or ASTM forging specifications A105, A182, A350, B462, or B564. Tees, elbows, and crosses shall not be machined directly from bar stock. Both threaded and socket-welding fittings of ASME B16.11 are made in small sizes and have high pressure-temperature ratings. They are used primarily for high-pressure steam.

​

Product Information:

Types of End Connections: Socket Welding & Threaded

ASME B16.11 forged fittings may be furnished with socket-welding ends, threaded ends, or a combination of the socket-welding end and threaded ends.

Threaded (THD) Ends

The threaded end connection for joining pipe is generally referred to as screwed connection. With tapered grooves cut into the ends of a run of pipe, screwed fittings and screwed pipe can easily be assembled without welding or other permanent means of attachment. The ASME B16.11 threaded fittings will have threads that are either male or female in accordance with ASME B1.20.1. Male threads are cut into the outside of the fitting, while female threads are cut into the inside of the fitting. As threaded fittings are assembled with threaded pipes, a short length of pipe is drawn into the fitting. This connection is called a thread engagement.

Socket Weld (SW) Ends

When assembling pipe with ASME B16.11 socket welding fitting, the pipe is inserted into the fitting before welding. Inside the socket-weld fitting is a collar that prevents the pipe from being inserted too deeply into the fitting. A short amount of pipe is lost when the socket-weld connections are made. Before the weld is made, the pipe fitter will back the pipe off the collar approximately 1/8″ to allow for heat expansion during the welding procedure. Pipe used for socket-weld connections will be prepared with a plain end. Plain end (PE) means the pipe is cut square, or perpendicular to, the central long axis.

Kasugai Shanghai, a subsidiary of Kasugai Group headquartered in Osaka, Japan, was established in 2003 as a representative office in Shanghai, China, and was upgraded to a company in 2008. Kasugai Shanghai serves as an important force of Kasugai Group in Asia, and over the past 20 years, it has become a key player in the industrial pipes, fittings, flanges, and valves market.

Kasugai Shanghai leverages the resources and manufacturing capabilities of local suppliers in China to provide a wide range of products, including stainless steel, carbon steel, duplex/super duplex steel, alloy steel, nickel alloy, and titanium alloy, according to various international standards such as ASTM/ASME/ANSI, JIS, EN, and DIN. The company also has a local support team and an on-site quality inspection team to ensure that products meet the specifications and quality requirements of customers.

With the support of high-quality local suppliers and a strong commitment to customer satisfaction, Kasugai Shanghai strives to provide reliable products and services to customers in Asia and beyond. Kasugai Group's establishment of Kasugai Shanghai and other international operations demonstrates their proactive approach to globalization and their commitment to meeting the needs of customers in a rapidly changing global market.

Kasugai Group Company Profile:

Foundation : June, 1925

Legal Representative : Akinori Kasugai

Number of employees : 140 persons (150 persons including employees of the affiliates) As of March 21, 2023

Scope of business : wholesaler and trade firm of industrial pipe/tube, fittings, flanges and valves

Kasugai Group Locations:

Head Office

4-14-2 Shinmachi, Nishi-ku, Osaka 5500013, Japan

TEL: 81-6-6538-7281

FAX: 81-6-6538-2273

E-MAIL: contact@kasugai-group.co.jp

Shanghai

Rm. A8415 Building A8, No. 808 Hongqiao Road, Xuhui District, Shanghai 200030, China.

TEL: 86-21-6447-1967

FAX: 86-21 6447-7841

E-MAIL: zhanghb@kasugai-group-co.jp

Other Branch Offices and Joint Ventures:

Fukuoka, Kitakyushu, Tokai, Kyoto, Shunan, Tokyo, USA (Watchung, N.J.), Jiangyin (Jiangsu, China)

Our Strengths:

Since our foundation in 1925, we have continuously taken steps to further grow our businesses. Global capabilities, professionalism, and trust. These three strengths are the reason that customers continue to choose Kasugai, regardless of the period.

-Global capabilities

We embarked on overseas procurement ahead of our competitors in the industry and have established a supplier network that can meet a variety of market demands. We are successfully chosen by many overseas customers
as a global procurement partner.

- Professionalism

Leveraging expertise cultivated over many years, we deliver optimal products to the optimal place at the optimal time. Our excellent information gathering and problem-solving abilities are also invaluable for solving customer issues.

- Trust

We provide smooth, prompt services by cultivating solid relationships of trust with suppliers. We believe that building stronger partnerships is the source of our growth.
