    21.5 Inch Open Frame Panel Mount Computer With Touch Screen Embedded For Kiosk Cabinet

    Ask Lasest Price
    Brand Name : WXYUAN
    Certification : CE FCC ROHS
    Supply Ability : 3113 Piece/Pieces per Month
    Price : negotiable
    Model Number : SY215E-01
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 7-19 days
    • Product Details
    • Company Profile

    21.5 Inch Open Frame Panel Mount Computer With Touch Screen Embedded For Kiosk Cabinet

    21.5 Inch Open Frame Panel Mount Computer With Touch Screen Embedded For Kiosk Cabinet


    LCD display panel specification:
    Spec: 21.5" Inch LED
    LCD Ratio: 16:9
    Display Area: 476.64x268.11mm
    Screen Resolution: 1920x1080
    Viewing Angle: 178/178
    Brightness: 350 nits
    Contrast: 1000:1
    Colour: 16.7M
    Display Panel Details
    display panel brand
    LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
    Size
    7 inch to 65 inch
    Customize Frame Color
    Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
    body material
    Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
    PC configuration
    Chipset:
    X86 board: Celeron J4125, J1900, intel Core i3/i5/i7, etc...
    Single PC board: RK3588 RK3399, RK3566,RK3568, etc...... as options
    Chipset Frequency:
    Quad core upto 2.66Ghz
    Chipset integrated
    Cortex-A17+GPU Mail-T764, and others as options etc...
    Ram:
    4GB/8GB DDR4 SDRAM (64GB max)
    Flash Memory:
    256GB high speed (optional)
    WiFi
    802.11b/n/g Wifi Integated
    PC configuration
    Audio
    Realtek HD ALC662 HD
    Line-In/Line-Out/Speaker out with 1W AMP Circuit
    Ethernet ports
    Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
    HDMI ports
    Default *1 (options)
    COM ports
    Default *2 COM (options)
    USB ports
    Default *4 USB (3*USB2.0; 1*USB3.0) (options)
    GPIO port
    as option
    Operation System:
    Android, Linux, Ubuntu, Windows 7/10/11/XP OS etc...as options
    Touch Screen
    TouchScreen Type
    10-Point capacitive touchscreen as options
    TouchScreen interface
    Serial (RS232) or USB or COM as options
    Surface Hardness
    Mohs' Number 7; Transmittance >75%
    Power Supply
    Input Voltage
    DC12V or 24V
    Output Rating
    ≦15W
    Environmental
    Work Temperature
    -20 ~ 60°C (-4~140°F)
    Storage Temperature
    -30 ~ 80°C (-22 ~ 176°F)
    Relative humidity
    5~95% (Non condensation)
    Shake: SSD applied
    1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock: SSD applied
    10 G, IEC 60068-2-64, Half-sine wave, 11ms duration

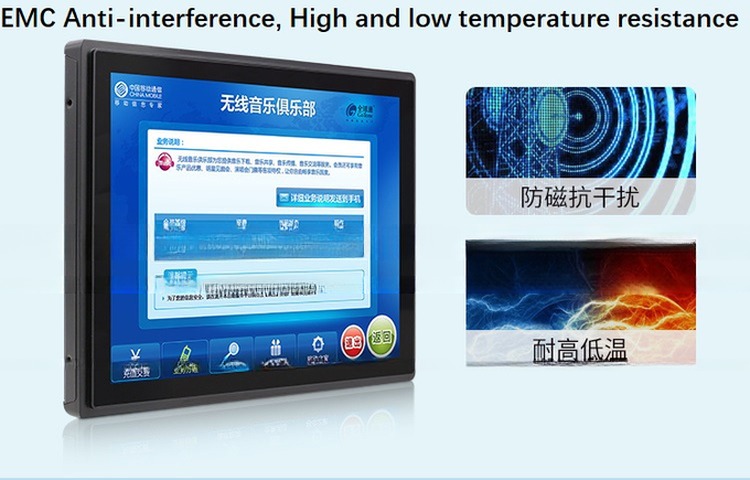

    EMC
    CE/FCC Class A
    Water-proof
    Front surface IP65 protection grade

    Features.

    Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
    Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 65 inches

    Specialties.

    1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
    2. Exceptional quality and highly engineered industrial monitors
    3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
    4. All steel construction designed for harsh and industrial environments
    5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
    6. Meets NEMA 4/4x/12 and IP65 standards
    7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
    8. Accuracy in high-use applications
    9. Supports Windows 7/10/11/XP, Linux OS, Android, Mac OS, Ubuntu, Debian
    10. CE, FCC, RoHS, ISO9001:2008 compliance.
    11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
    12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

    21.5" inch Size Drawing
