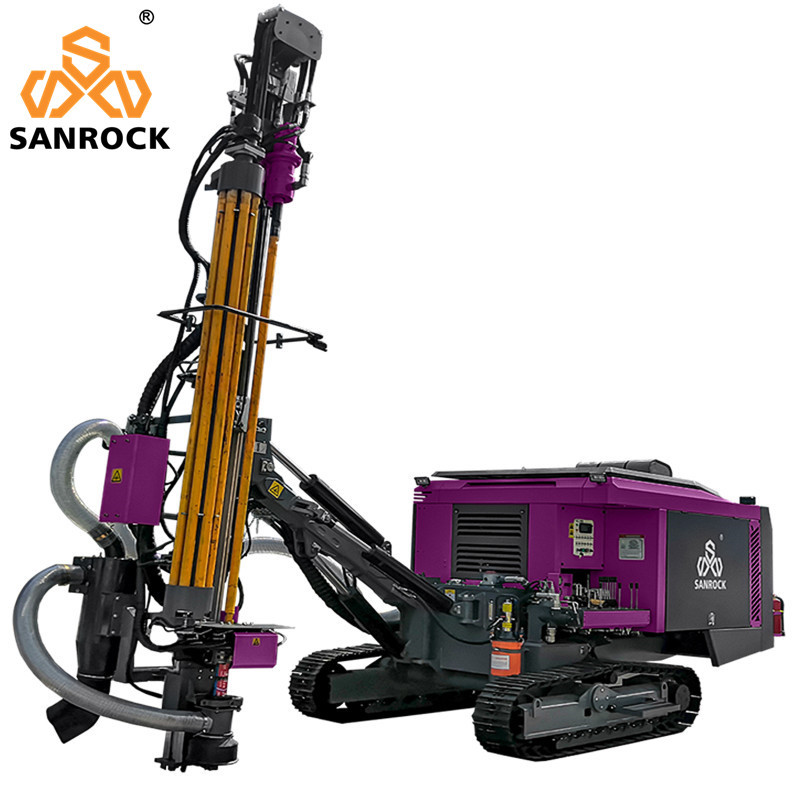

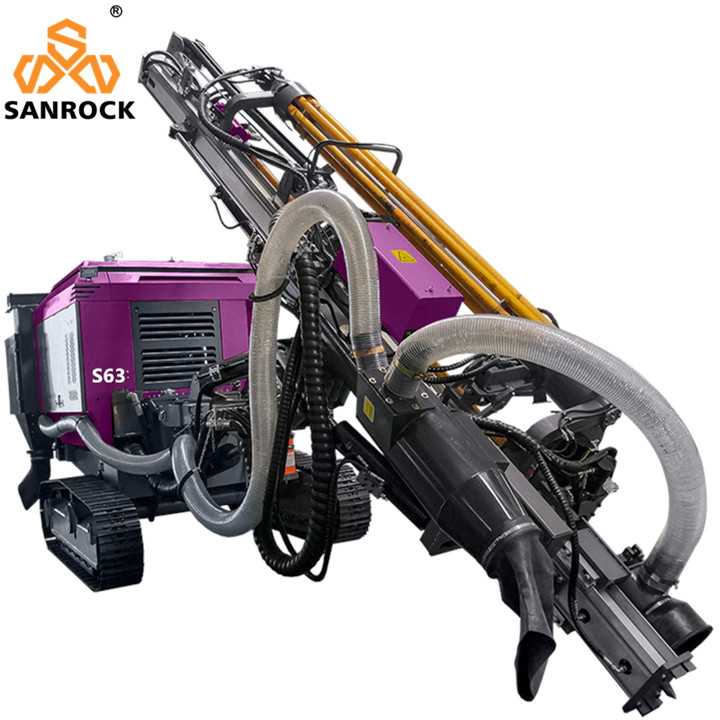

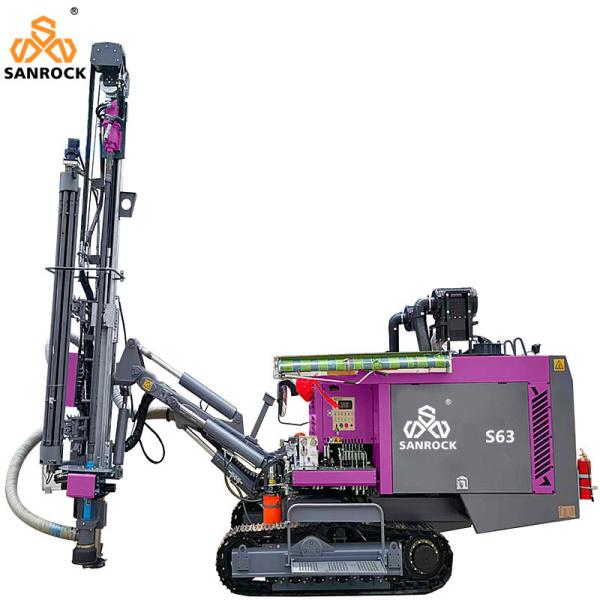

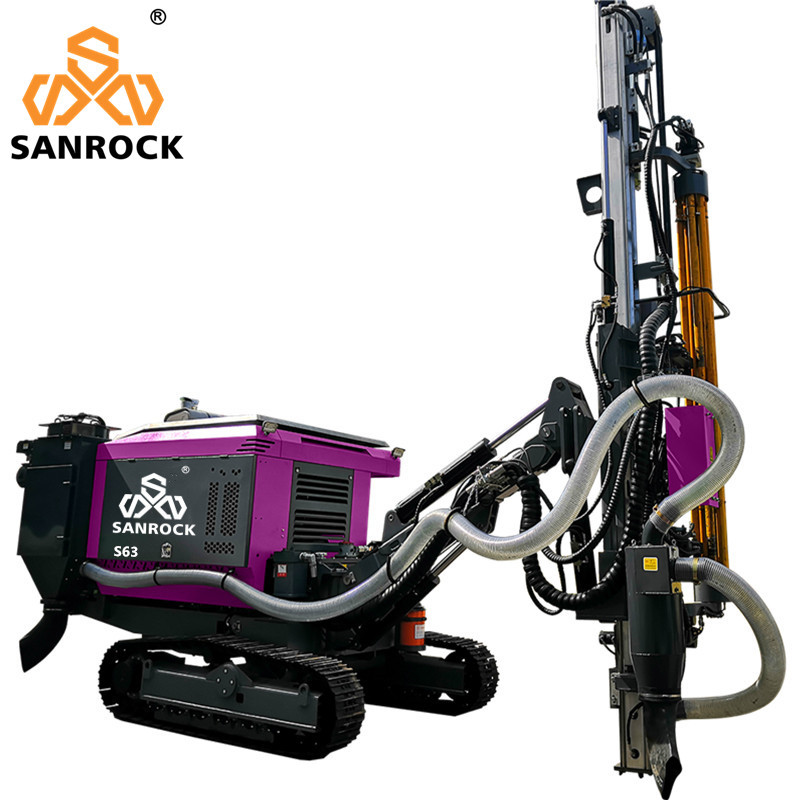

    Mining DTH Drill Rig Crawler Drilling Machine Automatic Hydraulic Borehole Drilling Rig

    Ask Lasest Price
    Brand Name : SANROCK
    Model Number : S63
    Certification : ISO CE
    Price : negotiable
    Supply Ability : 100 Set/Sets per Month
    Delivery Time : 15-30days
    • Product Details
    • Company Profile

    Mining DTH Drill Rig Crawler Drilling Machine Automatic Hydraulic Borehole Drilling Rig

    The drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection. High degree of automation, efficient drilling, simple operation, flexible maneuverability, single operator for labor cost. Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed. Can easily cope with all kinds of drilling angel requirement of landscapes. The advantageous functions such as precise boom positioning,automatic rod handling.



    Mining DTH Drill Rig Crawler Drilling Machine Automatic Hydraulic Borehole Drilling Rig

    Products Description

    Type
    Rotary Drilling Rig
    Power Type
    Diesel
    Engine
    Cummins 194KW(Ⅲ)
    Application
    Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
    Dimension(L*W*H)
    6000X2300X2600 mm
    Weight
    8850KG
    Key Selling Points
    High efficiency, high production capacity,Competitive Price
    Drilling Diameter
    115-150mm
    Drilling Depth
    Max.30m
    Drilling hardness
    f=6~20
    Volune of diesel oil tank
    280 L
    Method of dust collecting
    14 Core Dry type
    Compressor F.A.D
    540 CFM
    Compressor pressure PSI
    17bar
    Air end
    Two stage compression
    Feed stroke
    3690mm
    Maximun push-pull force
    20kn
    Compensation length
    900mm
    Lifting force
    25 kn
    Method of Feed
    motor+roller chain
    Travelling speed
    1.5~4 km/h
    Climbing capacity
    30°
    Ground clearance
    360 mm
    Drilling rod
    6+1, φ 76mmX3000/2000mm
    DTH hammer
    3"/4"/5''
    Working Pressure
    1.8 Mpa
    Air consumption
    16 m3/min
    Rotary torque (Max.)
    3300 N. m
    Rotary speed
    0-120 r/min

    Company Profile


    1.What can you buy from us?
    Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.


    2.How can I make payment?
    A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.


    3. How is the shipment? How long dose it take?
    A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.


    4.How is your quality control? A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.


    5.Do you have any certificate of authorization? A: Our machinery is CE certified.
