Adjustable Brightness Stage Rental LED Display 3.91mm for Various
Environments
Features
1.Support Curved Installation
High precision curve Lock. Support curved installation, In order to
meet the various aspects of the LED screen field. 500/1000 series
led display design for Curved Installation. Curved with every 2.5°
between -10°and 10°, which can make convex and concave.

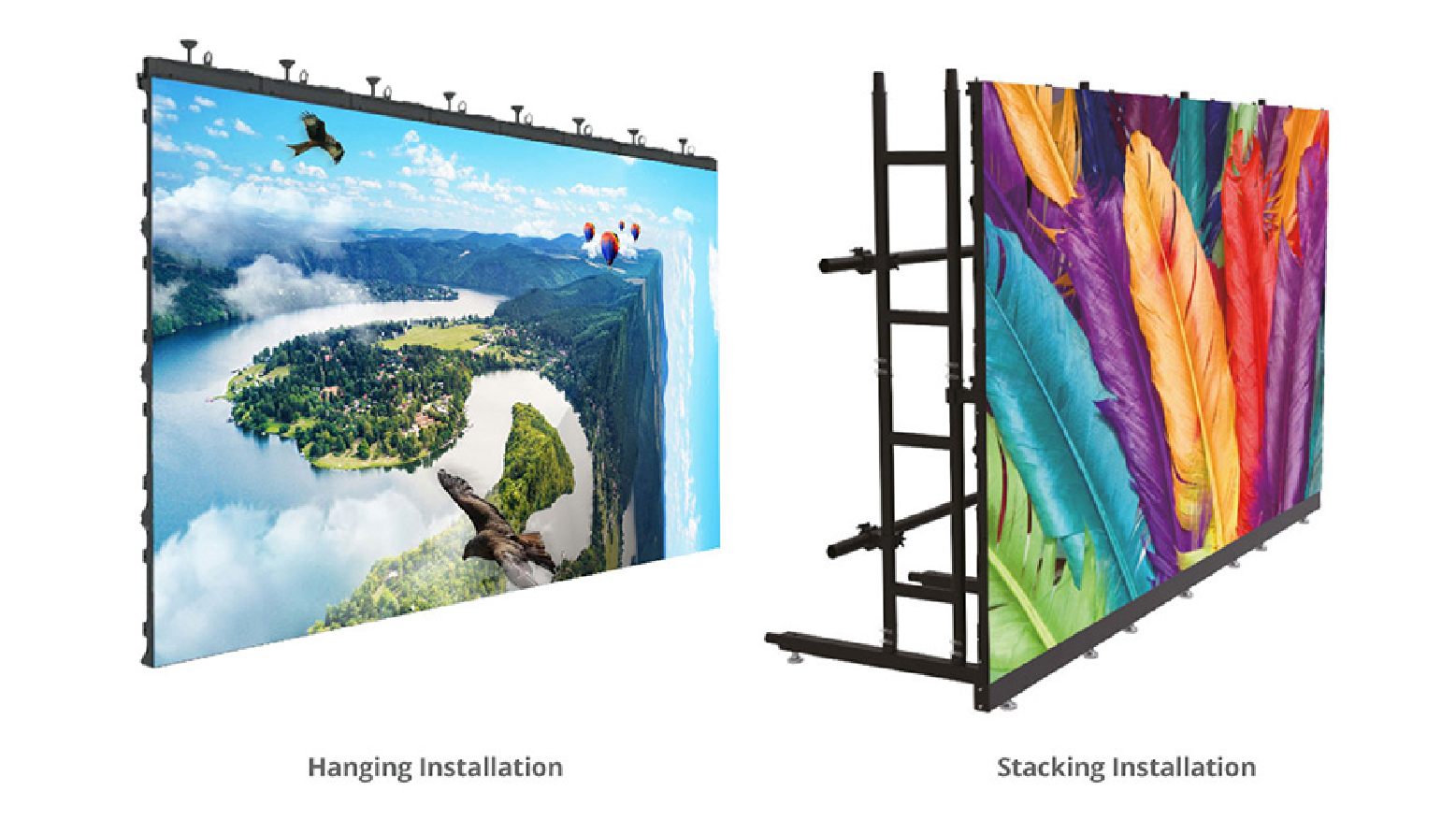

2.Different Installation Way
Glory series can make hanging LED display, stacking LED display,
wall amounted LED display, right angle LED display etc.
3.Outdoor IP65 waterproof protection
The Glory Series designed to perform in all kinds of outdoor and
indoor environments. Earning an IP65 Protection Rating, the
dust-tight enclosure of the glory series works to protect the LED
video wall display in outdoor installations.
Advantages
1. Wide viewing Angle, high contrast, seamless stitching, high
image quality
LED rental screen has the function of "beautiful appearance,
lightweight, easy to carry, stable quality", and should also have a
wide Angle of view, high contrast, smooth patch, high definition
and other functions. In particular, the LED rental screen housing
used in the stage performance industry is basically an aluminum
box, its weight is about 20-30 kg /m2, light weight, ultra-thin,
easier to disassemble.
2. Long life
The main component that affects the life of the LED rental screen
is the light-emitting diode (lamp), high temperature is the natural
enemy of the light-emitting diode, the thermal conductivity of the
aluminum box is good, can stabilize the ambient temperature, and
greatly extend the life of the display screen.
3. Good stability
The strengthening of the stability of LED rental screens is also
one of the important factors widely accepted by most businesses.
LED rental screens are often used for large events such as
advertising, performances, parties, and press releases, and their
stability plays an important role in the entire process. Therefore,
when selecting materials, companies will conduct relevant tests
that are higher than industry standards to ensure durable display
results. The improvement of the control system can not be ignored
in the stable performance maintenance.
4. Quick installation
LED rental screen has the characteristics of light, thin, fast
installation and novel shape. Among them, rapid installation mainly
measures the installation speed of workers according to the
connection method, that is, the area that a worker can install in
one minute.
5.Easy maintenance
Due to the frequent disassembly of LED rental screen products, it
is easier to damage, so in the design of products, we should fully
understand the needs of customers, repeatedly simulate the use of
customers, and then consider how to reduce the product damage
caused by disassembly and the maintainability problem after damage.
In addition, there are bright colors, to select and configure color
saturation, contrast, refresh rate and other raw materials.
Parameters
| Giant 2.9mm | Giant 3.91mm | Giant 4.81mm |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
