Air Filter Merv 13 Air Conditioner Filters For Air Hepa Filter
Replace
Product Description
Paper air conditioning filters is mainly suitable for filtering
particles with a diameter of 5μm. With domestic high quality
non-woven fabric, glass fiber and synthetic fiber made of special
blend or imported polyester fiber as filter material, wedge folding
shape to increase the filtering area, with high strength cardboard
frame, made of plate structure. It is especially suitable for air
conditioning system,hvac system,ahu,ventilation system,home air
filtration system , air conditioner with air purifier ,etc, widely
applied to filtration of high quality surface painting with the
feature of high arrestance, high efficiency in absorbing extra
particle during the course of painting, making air pressure more
equally.
Features
1. Frame: there are Moisture resistance cardboard; Aluminum alloy;
Galvanized plate frame for your choice.
2. Welded wire mesh protect filter media not destroied during
transportation or working .
3. Z-line pleated surface increased filtration area.
4. Low resistance, large dust holding capacity.
Product Parameters
| Model | Outside Dimensions(mm) | Rated air flow(m³/h) | Initial Resistance(Pa) | Efficiency(class) | Model of filter media |
| TR-CX-P1 | 295×295×10/20mm 12”×12” ×1/2”/1” | 800m³/h | 25-50Pa | 80-95% weight | G2 G3 G4 | Nylon nets Early effect filter cotton Corrugated aluminium nets |
| TR-CX-P2 | 495×295×10/20mm 20”×12” ×1/2”/1” | 1300m³/h |
| TR-CX-P3 | 495×495×10/20mm 20”×20” ×1/2”/1” | 2200m³/h |
| TR-CX-P4 | 595×295×10/20mm 24”×12” ×1/2”/1” | 1600m³/h |
| TR-CX-P5 | 595×495×10/20mm 24”×20” ×1/2”/1” | 2700m³/h |
| TR-CX-P6 | 595×595×10/20mm 24”×24” ×1/2”/1” | 3200m³/h |
*Customizable Size
1.Type: Disposable panel cardboard frame filter
2.Filter Media: Mixture of cotton and synthetic fiber
3.Filter class: G3(EN779) MERV6( ASHRAE 52.2)
G4(EN779) MERV8( ASHRAE 52.2)
4.Recommended final pressure drop:250 Pa
5.Temperature: 70ºC maximum in continuous service
6. Fire Rating:UL900
7.Customized Accept , provide OEM service
Related Products

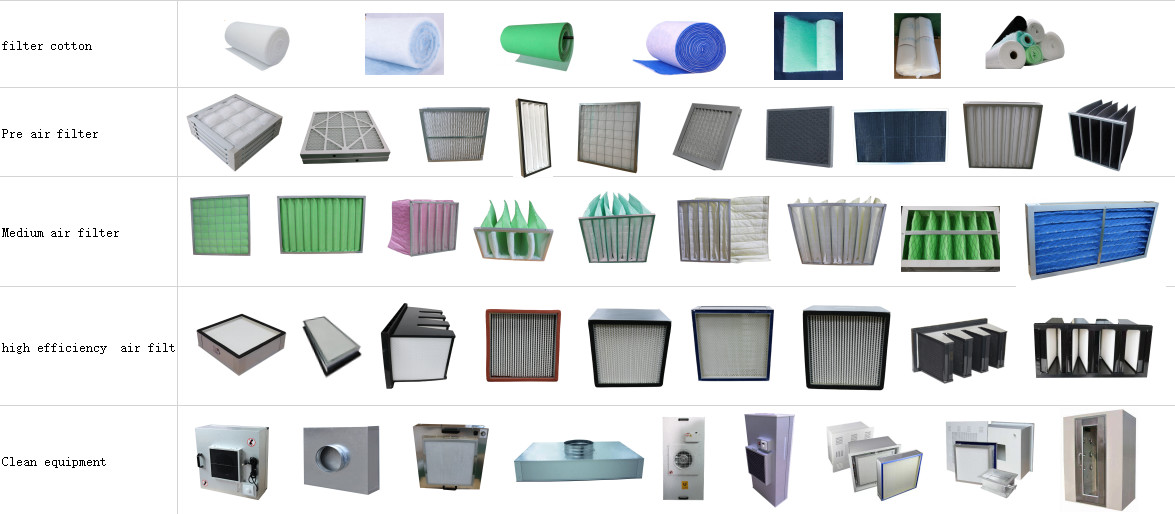

Our Main products:Filter cotton: Coarse filter cotton, Paint Fog Felt cotton, Booth Ceiling
cotton；
Primary filter: Initial effect flat air filter,Primary folding air filter,
Initial effect paper frame air filter, High temperature
resistant primary air filter , Activated carbon primary air filter；
Medium-efficiency air filter: Bag air filter, Green and white cotton air filter；
Hepa filter: Mini-Pleat filter, Deep-Pleat filter,W type high efficiency air
filter, High temperature resistant efficiency air
filter, Gel-seal high efficiency air filter；
Air purify equipment: FFU, Efficient air supply outlet, Ultra-thin integrated air
outlet ,Delivery window, Air shower.
Our products are widely used in Medical electronics, clean room,
laboratory,HVAC System,Automobile manufacture,nuclear industry and
other industries of air purification.
