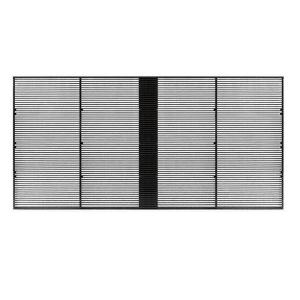

P5.2-10.4 Outdoor Transparent LED Display High Gray Scale 14bit
with Long Lifespan
Product Description:
Transparent LED display, also is known as glass LED display and ice
LED display. The features are super transparent, super light, high
contrast ratio, high refresh rate. The display serve as a more
efficient and valuable urban media. It can be installed behind
glass window, glass curtain walls, or hang in the air. Transparent
LED display can apply into building glass wall, such as airport,
bank, hotel, shopping mall, 4S store, luxury store etc.
Features:

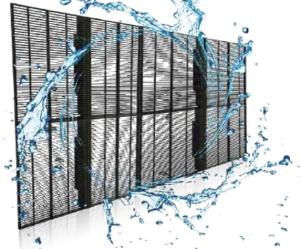

- Natural cooling , fanless design, IP65 Waterproof for whole screen,
addapt the various weather conditions.
- Stability long life time:Low power comsumption and energy saving,
Low consumption of electricity to increase the lifetime of LED

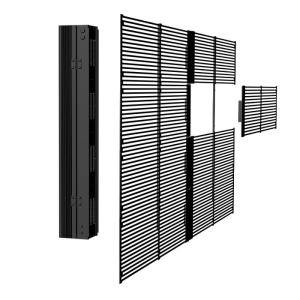

- High-precision die casting aluminum material cabinet, special
design on cabinet bottom ensures flatness of whole screen even the
platform is not flat. Also can protect modules in screen bottom.
Front and back maintenance design by module magnet assembly.
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: | 5.2-10.4 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 60% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Supermarket, airport advertising display, self-service store, metro
station, museum, convenience store, stadium exhibition, Chain brand
store, High-end conference room, Luxury brand store, Hotel, Bar,
Theatre, cinema, T stage, Showroom, Tourist attractions...
Packing and Shipping:
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
Q1. May I know the Minimum order for your products?
A1:MOQ for transparent led display is 1sqm.
Q2. May I know the advantages of transparent LED Display?
A2:Obvious advantages comapre to tranditional led facade and mesh
led display:
1) 50%-94% transparency, no influence for window light and wind
ventilating;
2) Simplified led panel no need steel structure for fixation, save
labour cost and a lot space;
3) Widely application for building glass wall, chain shop showcase,
airport, expo center, stage, etc.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer two years warranty for our products.
Q4: Whether to provide technical training (installation training
and use training)?
A: Yes, we offer full service, Including pre-sale, sale,
after-sales service, you can rest assured to buy.
