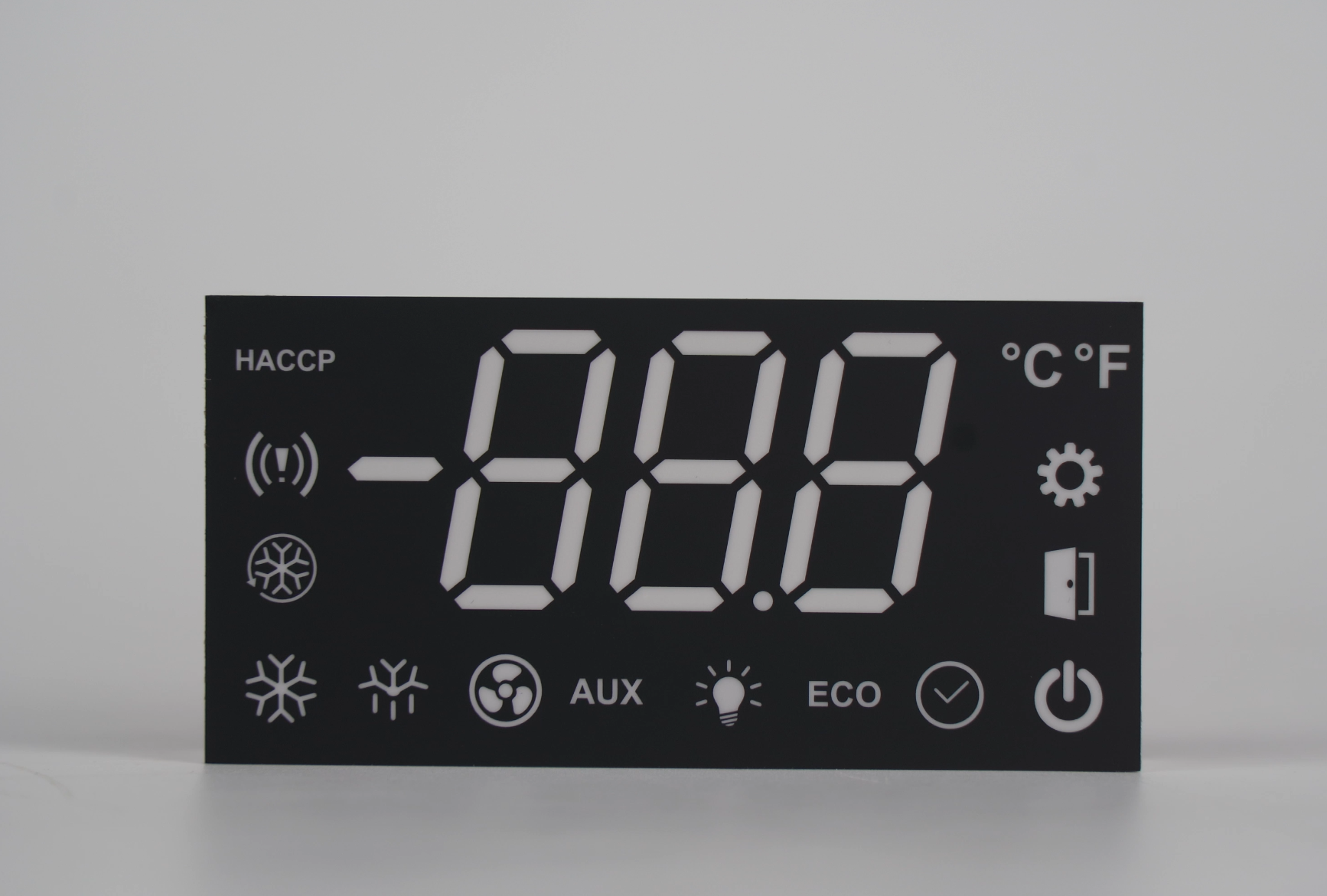

Refrigerator/Freezer LED Displays have advantage of low power
consumption, long lifetime and low cost. Displays designed with
customized multifunction symbols : DEFROST,COMPRESSOR,TEMPERATURE
INDICATOR,ALARM,FAN,LAMP,ECO, ENERGY SAVING,AUX,HACCP and so on .
We can customize the led display sizes,led colours, functional
symbols as per customers requirement .
Specification of Segment LED Displays
| Product Name | Custom Seven Segment LED Display | Other Optional |
| Part NO. | LB9045IWBRG1S | Can print your part number |
| Digit number | 3 digit | 1digit,2digits, 3digits,5digits,6 digits |
| Digit height | | 0.25,0.36,0.39....5.0(inch) |
| Color | White Blue Red Green | Red, blue,pure green, yellow-green, orange,etc. |
| Size | 90*45mm | Other size are supported |
| Polarity | Common Anode | Common Anode |
| Life span | 80000hours | |
| Free Samples | supported | |
| Lead time for sample | 5-7 working days | Tooling samples are 15-20 working days |
| Lead time for formal order | 15-20 working days | According to order quantity |
| OEM&ODM | Support | Based on customer's drawing or idea |
| LOGO printing | Support | Based on customer's drawing or idea |
| MOQ | 1000PCS | Can accept 100-500pcs for first order |
Color:White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | | 3.3 | V |
| Reverse Voltage | Vr | Ir=10uA | | 5 | | V |
| Luminous Intensty | Iv | If=20mA | 25 | | 35 | mcd |
| Spectrum With Of Half Value | λ | If=20mA | | 20 | | nm |
| Wavelength | Dλ | If=20mA | | | | nm |
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ºC |
| Storage Temperature Range | Tstg | -40~+120 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |
Feature of Segment LED Displays
--White segment Black surface
--High luminous intensity
--Low current operation
--Stable performance
--Continuous uniform segments
--Easy mounting on PCB
--IC compatible
--RoHS compliant
.
Industrial Equipment
Industrial ovens, reliability test equipment, analytical
instruments, process control equipment, test and measuring
instruments, temperature controllers, programmable logic
controllers, security systems
