    1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All

    Ask Lasest Price
    Brand Name : Chenghao Optoelectronic
    Model Number : CH1602C01A
    Certification : CE / RoHS / FCC
    Delivery Time : 3~5 working days
    Payment Terms : TT or negotiation
    Supply Ability : 5000K Pcs/Month
    • Product Details
    • Company Profile

    1602 Cog Graphic Lcd Module For 8051 Avr Arduino Pic Arm All

    Product Description:

    This monochrome LCD display is a high-performance LCD module with LED backlight (yellow-green). Its overall dimensions are 84.0×44.0×12.5 mm, and its working load is 1/16DUTY. The character spacing is 2.95 (width) × 5.55 (height) mm, and the viewing area is 66 (width) × 16 (height) mm. Offering clear viewing and long life, this monochrome LCD screen is reliable and durable, making it an ideal choice for many applications, making it ideal for a variety of applications including industrial, medical, automotive and instrumentation.

    Technical Parameters:

    AttributesDetails
    DUTY1/16DUTY
    STORAGE TEMPERATURE-30 ~ 80 ℃
    CONTROLLERSPLC780D1 OR EQUIVALENT
    EFFECTIVE V/AREA56.2(W)×11.5(H) Mm
    DISPLAY DOTBLUE-BLACK
    INPUT DATA68 SERIES
    OPERATING TEMPERATURE-20 ~70 ℃
    DIMENSIONAL OUTLINE84.0×44.0×12.5 Mm
    VIEW ANGLE6 O'CLOCK
    BACKLIGHTLED (YELLOW-GREEN)

    Other Lcd module

    Graphic lcd display 320x240 & Graphic lcd module

    Applications:

    Chenghao Optoelectronics monochrome LCD display CH1602C01A is a reliable and high-quality product made in Shenzhen, China. It has passed CE, RoHS and FCC certification. With the advantages of 50000H ultra-long service life and low power consumption, it is an ideal choice for automotive electronics, telecommunications, aerospace , medical equipment, industrial control and other applications.


    Terminal Functions

    PIN NO.SYMBOLLEVELFUNCTION
    1VSS0VGND
    2VDD+5.0VPower Supply for logic
    3V0-Operating voltage for LCD
    4RSH/LH: Data L: Instruction code
    5R/WH/LH: Read L: Write
    6EH-LChip Enable signal
    7~14DB0~DB7H/LData bus line
    15LEDA+5.0VPower Supply for LED Back Light
    16LEDK0V

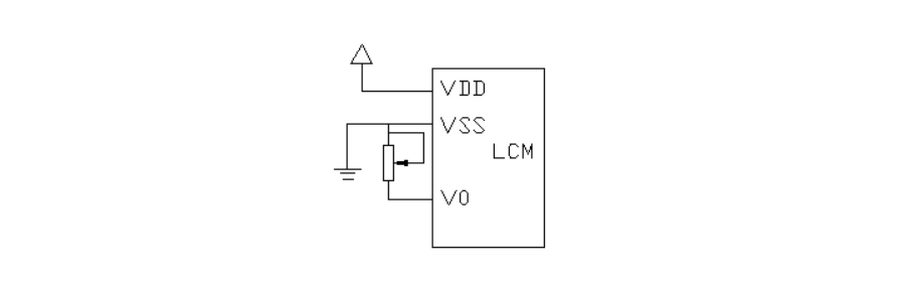

    Power Supply And Contrast Adjust Circuit

    Absolute Maximum Ratings

    PARAMETERSYMBOLRATINGSUNITS
    POWER SUPPLY FOR LOGICVDD-VSS-0 .3~ 7.0V
    POWER SUPPLY FOR LCD DRIVERVDD~V50 ~ 10.0V
    INPUT VOLTAGEVINVSS ~ VDDV
    OPERATING TEMPERATURETopr-20 ~70
    STORAGE TEMPERATURETstg-30 ~ 80

    Support and Services:

    We provide technical support and services for monochrome LCD monitors. Our technical support team is available 24/7 to assist you with any questions or concerns you may have. In addition, we provide a variety of services, including troubleshooting, repairs, and software debugging, to help you use our monochrome LCD monitors quickly and correctly to provide you with the best customer experience.

    Packing and Shipping:

    1. All of our shipping boxes meet the export hardness standards
    2. All of our boxes will be padded with foam inside to prevent screen damage
    3. Our product packaging adopts a large box with small boxes
    4. The weight of each box does not exceed 3.5 kilograms, and the dimensions may vary depending on the standard. We will use pallets or wooden frames for the goods
    The above packaging methods are all to prevent damage to the display module during transportation, and we can also package the goods according to the customer's wishes.

    FAQ:

    Q&A for Monochrome LCD Display

    Q1:What is the brand of the Monochrome LCD Display?
    A1:The brand of the Monochrome LCD Display is Chenghao Optoelectronic.

    Q2:What is the model number of the Monochrome LCD Display?
    A2:The model number of the Monochrome LCD Display is CH1602C01A.

    Q3:Where is the Monochrome LCD Display from?
    A3:The Monochrome LCD Display is from Shenzhen,China.

    Q4:What certifications does the Monochrome LCD Display have?
    A4:The Monochrome LCD Display has CE / RoHS / FCC certifications.

    Q5:What is the minimum order quantity for the Monochrome LCD Display?
    A5:The minimum order quantity is 1 Pcs.
