    high speed NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm For Smart Device

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 57SHD4812-10PLH
    Certification : CE,ROHS,ISO
    Price : $26.46-$29.46
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    high speed NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm For Smart Device

    NEMA 23 Stepper Motor With Planetary Reducer 2N.M 76mm Body Ratio 10:1 For Smart Device

    By increasing the transmission ratio of the gear system, the high-speed low torque of the motor is converted into low-speed high torque output.

    Compared to other types of reducers, planetary reducers have higher efficiency.


    Features:

    • Bipolar or unipolar versions available

    • Expertise in professional research and development manufacturing

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Our engineers will respond within 48 hours to provide the best solution

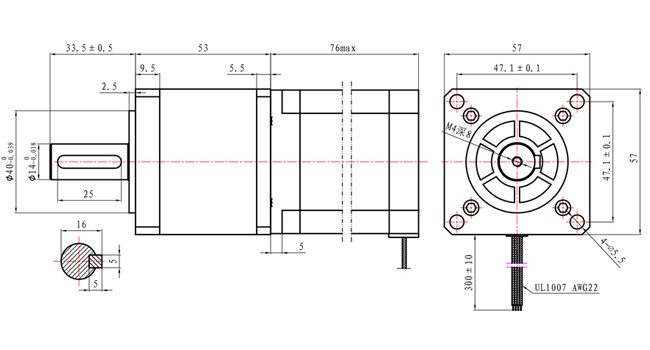

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    57mm

    Number of Phase


    2 Phase

    Rated Current


    2.8Amp

    Holding Torque


    2000 mN.m

    Resistance


    1.2 0hm

    Inductance


    3.6 mH

    Rotor Inertia


    460g-cm²

    Motor weight


    1.3kg

    Gear Reduction Ratio


    10:1

    Connection


    Bipolar


    Operating Specifications


    Motor


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Gear Box


    Housing Material:Metal
    Bearing at Output:Ball Bearings
    Max.Radial Load(12mm from flange):≤80N
    Max.Shaft Axial Load:≤30N
    Radial Play of Shaft (near to Flange):≤0.06mm
    Axial Play of Shaft:≤0.3mm
    Backlash at No-load:1.5°


    Torque Curves


    Submodels

    Motor LengthLength of GearboxRaioEfficiency
    34 mm

    40 mm

    48 mm

    60 mm
    27.2 mm3.7190%
    5.18
    35 mm13.7680%
    19.2
    26.8
    42.7 mm5170%
    71
    99.5
    139


    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
