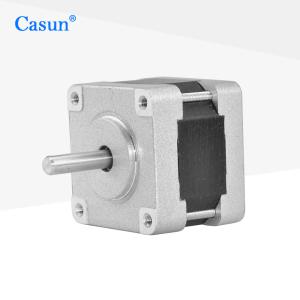

    155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 39SHY4101-10
    Certification : CE,ROSH,ISO
    Price : $3.38-$4.38
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    155mN.M NEMA 16 Stepper Motor For 3D Printer Engraving Machine Dc Stepping Motors

    155mN.M 0.17kg NEMA 16 Stepper Motor For 3D Printer / Engraving Machine Dc Stepping Motors

    Nema16 Stepper Motor 1.8 ° 39X27mm 0.4A 155mN.m 0.17kg for 3D Printer/Engraving Machine

    39x39x27mm 0.4A Casun Stepper Motor Nema16 Mini Stepper Motor For Medical beauty equipment

    Motor Specifications

    Step Angel

    1.8 °

    Fram Size

    27mm

    Number of Phase

    2 Phase

    Rated Current

    0.4A

    Holding Torque

    155mN.m

    Resistance

    23.1ohm

    Inductance

    25mH

    Rotor Inertia

    15 g-cm²

    Motor weight

    0.17kg

    Number of leads

    4

    Connection

    Bipolar


    Appearance

    Dimensions


    Torque Curves



    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Connector

    Please click the "Get a quote" button below to tell us your requirements.
