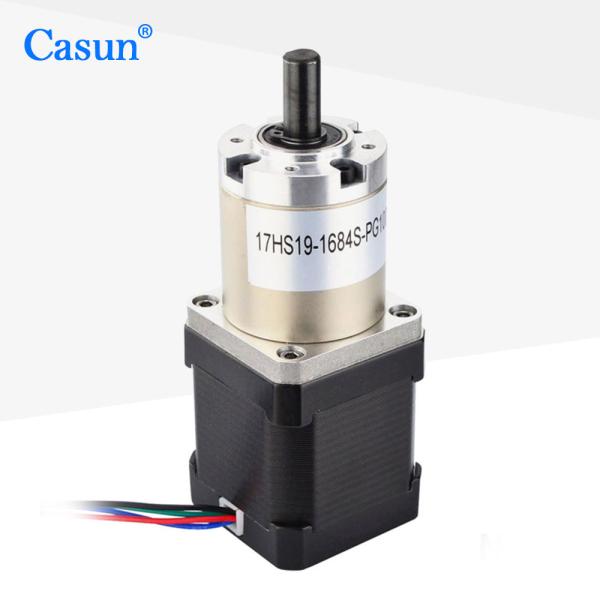

42x42x40mm NEMA 17 Geared Stepper Motor 2 Phase 12.5V RoHS Stepping Motors

42x42x40mm Motor paso a paso 12.5V NEMA 17 Geared Stepper Motor 2 Phase RoHS Barcode printer

NEMA 17 Geared Stepper Motor 42x42x40mm ratio 100:1 Stepper Motor 2 Phase 12.5V 100:1 ratio

42x42x40mm 1.8 Degree 2 Phase Ratio 10:1 42SHD4202-100G Nema 17 Gear Reducer Stepper Motor

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Gear Box

Housing Material:Metal
Bearing at Output:Ball Bearings
Max.Radial Load(12mm from flange):≤80N
Max.Shaft Axial Load:≤30N
Radial Play of Shaft (near to Flange):≤0.06mm
Axial Play of Shaft:≤0.3mm
Backlash at No-load:1.5°

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
