    57*54mm Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Dc Motor

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 57SHD4406-20BQH
    Certification : CE, ISO, ROHS
    Price : US $16.00 - 9.00/ Piece
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 100000/pcs per month
    Delivery Time : 15 workdays
    • Product Details
    • Company Profile

    57*54mm Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Dc Motor

    Nema 23 Colsed-loop Stepper Motor, 57*57*54mm 1.8 Degree 2 Phase, 1.2N.m Holding Torque.

    High Quality Supplier 57*54mm Closed-Loop Nema 23 Stepper Motors 1.2N.M For Cnc Kit Dc Motor

    The 57mm deceleration Colsed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.


    Features:

    • Bipolar or unipolar versions are available

    • We offer custom services and accept contract manufacturing. Wanted dealers! !

    • Available in single- or double-shaft versions

    • Professional drivetrain solution specialist

    • Customizations on request

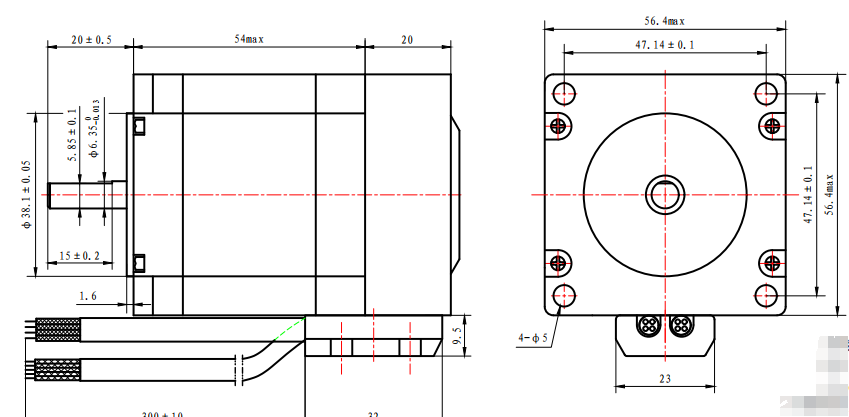

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    57 mm

    Number of Phase


    2 Phase

    Rated Current


    3 A

    Holding Torque


    1.2 N.m

    Resistance


    0.9 ohm

    Inductance


    4.5 mH

    Rotor Inertia


    260 g-cm²

    Motor weight


    0.8 kg

    Shatf


    20 mm

    Connection


    Bipolar

    Operating Specifications


    Motor


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min


    Gear Box


    Housing Material:Metal
    Bearing at Output:Ball Bearings
    Max.Radial Load(12mm from flange):≤80N
    Max.Shaft Axial Load:≤30N
    Radial Play of Shaft (near to Flange):≤0.06mm
    Axial Play of Shaft:≤0.3mm
    Backlash at No-load:1.5°


    Torque Curves


    Submodels

    Motor LengthLength of GearboxRaioEfficiency
    34 mm

    40 mm

    48 mm

    60 mm
    27.2 mm3.7190%
    5.18
    35 mm13.7680%
    19.2
    26.8
    42.7 mm5170%
    71
    99.5
    139


    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
