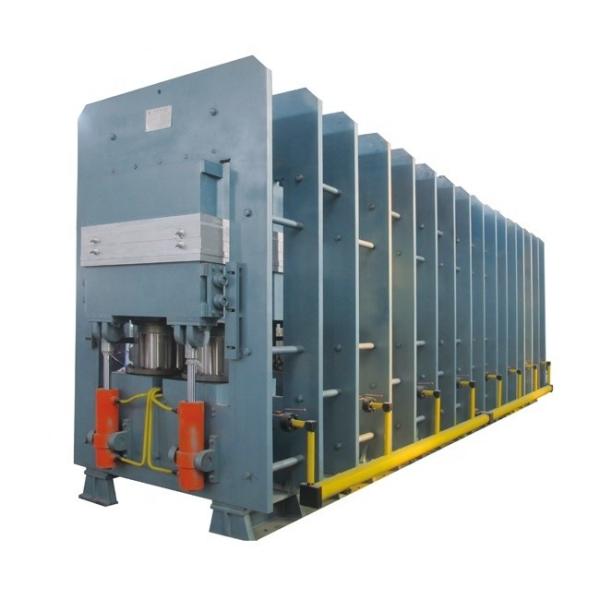

Vulcanizing unit adapted to ordinary rubber vulcanized conveyor
belt nylon belt / PVG conveyor belt and other wire rope core
parallel fabric tape. Host-frame structure, hot plate and the
plunger are made of high-quality material processing precision is
not easy wear and easy maintenance is not easy work stress
corrosion stable easy to adjust. With PLC control, curing process
can be multi process control, can automatically detect and adjust
the hot plate temperature, increase the level of control of plate
curing unit, reducing labor intensity and improve production
efficiency.
| parametersersion | XLB-1400*5700*2 | XLB-1400*10000*1 | XLB-1600*10000*2 | XLB-1800*8000*2 | XLB-1800*12000*2 | XLB-2000*10000*1 |
| 1400*5700 | 1400*10000 | 1600*10000 | 1800*8000 | 1800*12000 | 2000*10000 |
| platen size(L*M) (MM) |
| 25 | 49 | 56 | 51 | 74 | 70 |
| Total pressure (MN) |
| 3.13 | 3.5 | 3.5 | 3.54 | 3.4 | 3.5 |
| pressure unit of plate(mpa) |
| 360 | 450 | 450 | 600 | 500 | 600 |
| Ram diameter(MM) |
| 10 | 20 | 18 | 12 | 18 | 16 |
| Quantity of ram (MM) |
| 400 | 300 | 400 | 600 | 400 | 300 |
| Max.ran stroke (MM) |
| 0.72 | 0.9 | 1.2 | 1.2 | 1.2 | 1.2 |
| Clamping force (MM) |
| 0.6 | 0.8 | 1.1 | 1 | 1.1 | 1 |
| Tensioning force (MN) |
| 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 |
| Steam pressure (Mpa) |
| 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Pressure of cooling wate (Mpa) |
| Conveyor belt | Conveyor belt | Conveyor belt | Conveyorbelt | Conveyor belt | Conveyor belt |
| Application |
| PLC | PLC | PLC | PLC | PLC | PLC |
| Conrol form |
| Length | 5700 | 10000 | 1000 | 2700 | 2000 | 10000 |
| Oerall dimensions | Width | 2350 | 2400 | 2660 | 8000 | 12900 | 3100 |
| Of main (MM) | Height | 4170 | 3580 | 4120 | 4500 | 3930 | 4400 |
We are professional manufacturer of machinery
About us--
Qingdao HUICAI Machine Manufacture Co., LTD.
1. has specialized in machine manufacture almost 20 years;(since
1996)
2.100% real manufacture meet all your requests;
3.CE,ISO Certification;
4.provide one year quality guarantee and long-term technical
support;
5.provide all kinds of rubber machine:
Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber
refining mill,Rubber plastices kneading machine,Rubber
injection&pressure molding machine,Vaccuum heat presses to
model the machine, Hydraulic press, Rubber sheeting mill,Jaw type
falt vulcanizer,Prevulcanization equipment,Hydraulic tyre
vulcanizer,Automatism inner tube press vulcanizer, Foaming press;
Conveyor belt production line, Sidewall belt production line,
Conveyor belt forming line; Batch-off cooler (cooling line); Rubber
cutter etc;
6.our machine are welcome by the world,popular in lots of markets
About Us:
We are a successful manufacturer and foreign trade company that has
a good reputation of providing our customers with the best service
and online buying experience in the business. Please feel free to
email us or call us . Your email will be appreciate and we reply you as soon as possible.
Notice:
we can accept FOB,CIF,CFR,etc.
Payment Item:30%TT in advance,70% balance before shipment.
Delivery Time:usually 20-30 days after recieving the
deposit,customize model depends on detailed parameter
Packing:bare packing, some parts are packed in wooden case.
