Product Description:

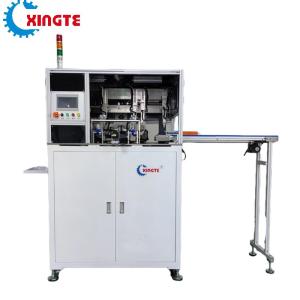

Toroidal Coil Winding Machine - XINGTE XT-CH001S
XINGTE XT-CH001S is a high-quality Toroidal Coil Winding Machine,
designed and manufactured in China. This automatic winding machine
is suitable for various toroidal coils used in transformers, thanks
to its flexible coil diameter range of 10mm-60mm and wide wire
diameter range of 0.5mm-2.2mm.
Features and Benefits:
High Efficiency: With a winding speed of 0.6-1.2S/TURN
(adjustable), this machine can wind coils quickly and accurately,
increasing productivity and saving time.
Easy Operation: The XT-CH001S is designed with user-friendly
controls and a simple interface, making it easy for operators to
learn and operate.
Stable Performance: This machine is made of high-quality materials
and components, ensuring its stable performance and long lifespan.
Flexible Coil Diameter Range: The XT-CH001S can wind coils with a
diameter range of 10mm-60mm, making it suitable for various types
of toroidal coils.
Wide Wire Diameter Range: This machine can handle wire diameters
from 0.5mm to 2.2mm, providing flexibility for different coil
designs and applications.
Automatic Winding: With automatic winding, this machine can save
labor and reduce human error, ensuring consistent and precise
winding.
Features:
Product Features
The Advanced Fibre Optic Sensors system is combined with an AC
servo motor drive system, providing precise positioning for this
machine.
Designed for convenience, the machine features an intuitive and
simple operation, with a 10" HMI that allows for easy program
editing in dialogue mode.
For improved winding quality, a high precise tensioner is optional
for use.
The machine operates automatically with tasks such as magnetic core
uploading, wire feeding, winding, and unloading.
Up to 50 sets of programs can be stored, allowing for fast program
switching.
Hierarchical management and password storage functions are included
to prevent unauthorized use.
A Fully Automatic Magnetic Ring Winding Machine
This machine is specially designed for the symmetrical winding
method of magnetic rings.
Featuring a dual working station design, it greatly improves the
winding speed.
With the capability of single layer, two layers reciprocating, and
three layers of wiring, this machine provides precise and efficient
winding.
The wire diameter compatibility range is wide, from 0.5mm-2.2mm.
It is equipped with automatic stop functionality when there is a
shortage of materials, such as magnetic core or copper wire.
The machine is compatible with various materials for magnetic
cores, including amorphous, iron powder core, and
iron-silicon-aluminum.
For wire, both copper and aluminum can be used. The speed is
adjustable, and specifications can be easily changed at a fast
pace.
Technical Parameters:
| Model number: | XT-CH001S |
| Wire Diameter : | 0.5 ~ 2.2mm |
| Coil O.D | 10-60mm |
| Coil I.D | ＞8 mm |
| Wire length | 100-1600mm |
| speed | 0.6-1.2s/turn |
| working station: | 2 stations |
| Power: | 4.5KW |
| Power supply: | AC 380V,50/60Hz |
| Air pressure: | > 0.6Mpa |
| Machine dimension: | 1000*1700*2100mm |
| G. W: | 700KGS |
Applications:
Toroidal coils are used for the reduction of electromagnetic
interference in electronic circuits. High voltage at the starting
time can be produced as toroidal coils are used with fluorescent
tube light. To reduce noise and other interference, toroidal coils
are used in conjunction with sensitive cables and connectors such
as USB data cables and HDMI cables. Audio frequency choke coils are
used in subwoofers and other audio systems. These toroidal coils
are also used in power supply circuits such as inverter circuits,
voltage regulators, and rectifier circuits.
With its advanced features and certifications, XINGTE XT-CH001S
Toroidal Coil Winding Machine is a reliable and efficient choice
for manufacturing transformers. Contact us today for more
information and to place your order.
Customization:
Toroidal Coil Winding Machine - Customization Service
Brand Name: XINGTE
Model Number: XT-CH001S
Place of Origin: CHINA
Certification: CE, ISO9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Delivery Time: 15-35 days
Payment Terms: FOB, EXW
Supply Ability: 2000PCS/MONTH
Power: 3.5kw
Dimensions: 1000mm*1700mm*2100mm
Coil Height Range: 5mm-30mm
Air Pressure: 0.6 Mpa
Voltage: 220V
Pictures of our factory
Pictures of our machine
Pictures of the finished coils
.
