Six Axis Automatic Voice Coil Winding Machine High Yield Rate

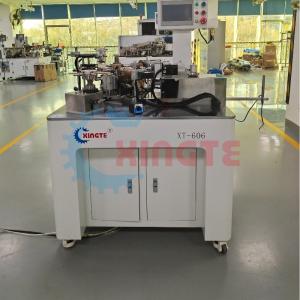

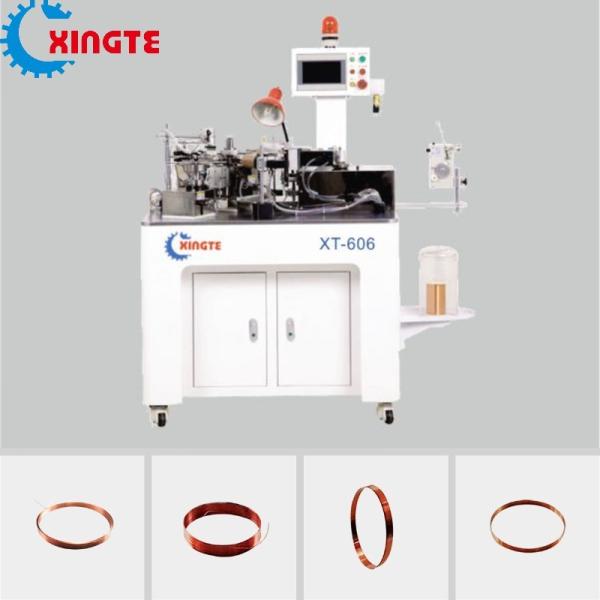

Automatic six-axis voice coil winding machine, Automatic six-axis air coil winding machine XT-606

This machine is specially designed for air voice coils, which can wind two kinds of enameled wires: alcohol-soluble and hot air. Manual feeding can also do the winding of general skeleton voice coils

.Automatic six axis voice coil winding machine,Automatic six axis air coil winding machine XT-606

Product Features

The control system adopts an English touch screen interface.
The mechanical operation part is reasonably designed. The metal materials used have been processed with special processes.

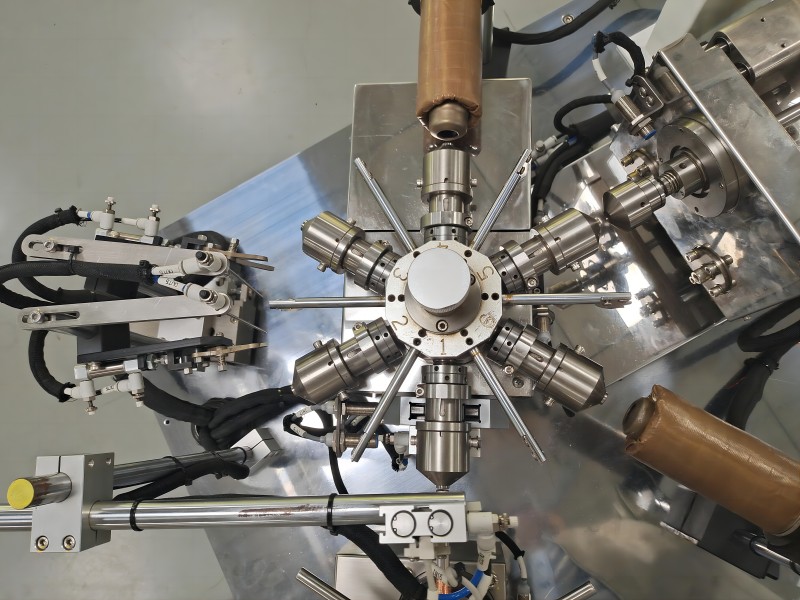

The mechanical motion parts all use advanced servo motors and high-precision ball screws, Imported bearings ensure the high quality of the product, Efficiency, and high precision. truly achieve 24-hour stability and efficient production. It can be compatible with fully automated production lines and unmanned workshops. The winding method is spindle flying fork winding, six-station rotating wire trimming, and mold ejection. This machine is the most efficient model in the industry, with an output of about 2600PcS/h calculated at about 30 revolutions per hour.

Application areas

Headphone voice diaphragm, in-ear headphone voice diaphragm, true wireless Bluetooth headset voice diaphragm, security speaker voice diaphragm, receiver, and other voice diaphragm and voice coil combinations.

Product parameters

Basic information about XINGTE

Experience
XINGTE was established in 2007, with more than 17 years R & D experience in the coil winding area

Plant Size
XINGTE is headquartered in Shenzhen, with a factory area of more than 30,000 square meters, which can ensure our Strong productivity

Service
XINGTE has more than 230 technical service and after-sales staff, worldwide service points worry-free after-sales service

Patents & certificates

Patents & certificates:
XINGTE obtained 120+ Patents and related certificates

Production Capacity
XINGTE has more than 600 experienced employees, which can guarantee our Production capacity and fast delivery

Technology
XINGTE has more than 130 experienced engineers, which can ensure our strong R & D ability, also can guarantee our customization capability


XINGTE PRODUCTION LINE

1, Motor stator, rotor, and other related coil winding machine

2, Transformer-related product coil winding machine

3, voice coil-related product winding machine

4, inductor coil winding machine and

5, customized fully automatic line for the motor, speaker, transformer production line



Our factory

Machines

Air Coils finished product




Delivery

Shenzhen Xingte Technology Co., Ltd. was founded in 2011. It is a national high-tech enterprise with more than 1.000 employees and a factory area of 30,000 square meters. Xingte specializes in the research and development, production, sales, and technical services of fully automatic winding machines and winding systems. Xingte currently has an R&D team of more than 260 people and a high-quality after-sales service team of more than 400 people.

Xingte obtained more than 200 invention patents, utility model patents, software copyrights, and other certificates like CE, KC, etc. Xingte is a member unit of the Shenzhen Camera Industry Association and a governing unit of the Robot Intelligent Equipment Industry Association. The company has an independent machining center, complete production supporting equipment, and controllable product manufacturing costs and quality. The entire product production process adopts information management. Effectively manage production factors and implement the 6S (sorting, reorganizing, sweeping, cleaning, quality, and safety) on-site management concept within the company. Continuously improved the company's quality management to enhance customer satisfaction, and obtained ISO9001 quality management system certification.

The company's products are mainly used in mobile phones, computers, headphones, wireless charging, photovoltaics, new energy vehicles, electronic components, and other fields. Specializing in providing various types of speaker voice coil winding machines, motor winding machines, wireless charging coil winding machines, toroidal magnetic winding machines, new energy intelligent equipment, air core coil winding machines, transformer winding machines, and the middle and rear sections of magnetic rings Assembly lines and other production equipment as well as fully automatic speaker assembly equipment!

Our products are exported to all over the world such as Southeast Asia and European and American countries, South Korea, Singapore, Vietnam, Philippines, Turkey, etc. It has widely served well-known domestic and world brands such as Huawei, Apple, Samsung, and Xiaomi, and has been unanimously recognized by customers.

Our Vision: To be the global leader in coil winding and related equipment manufacturing

Our Mission: Create value and a better life for customers

Our values:Customer-centric: win-win cooperation, faster and better, Staff-oriented: emphasizing both ability and integrity and continuous optimization
