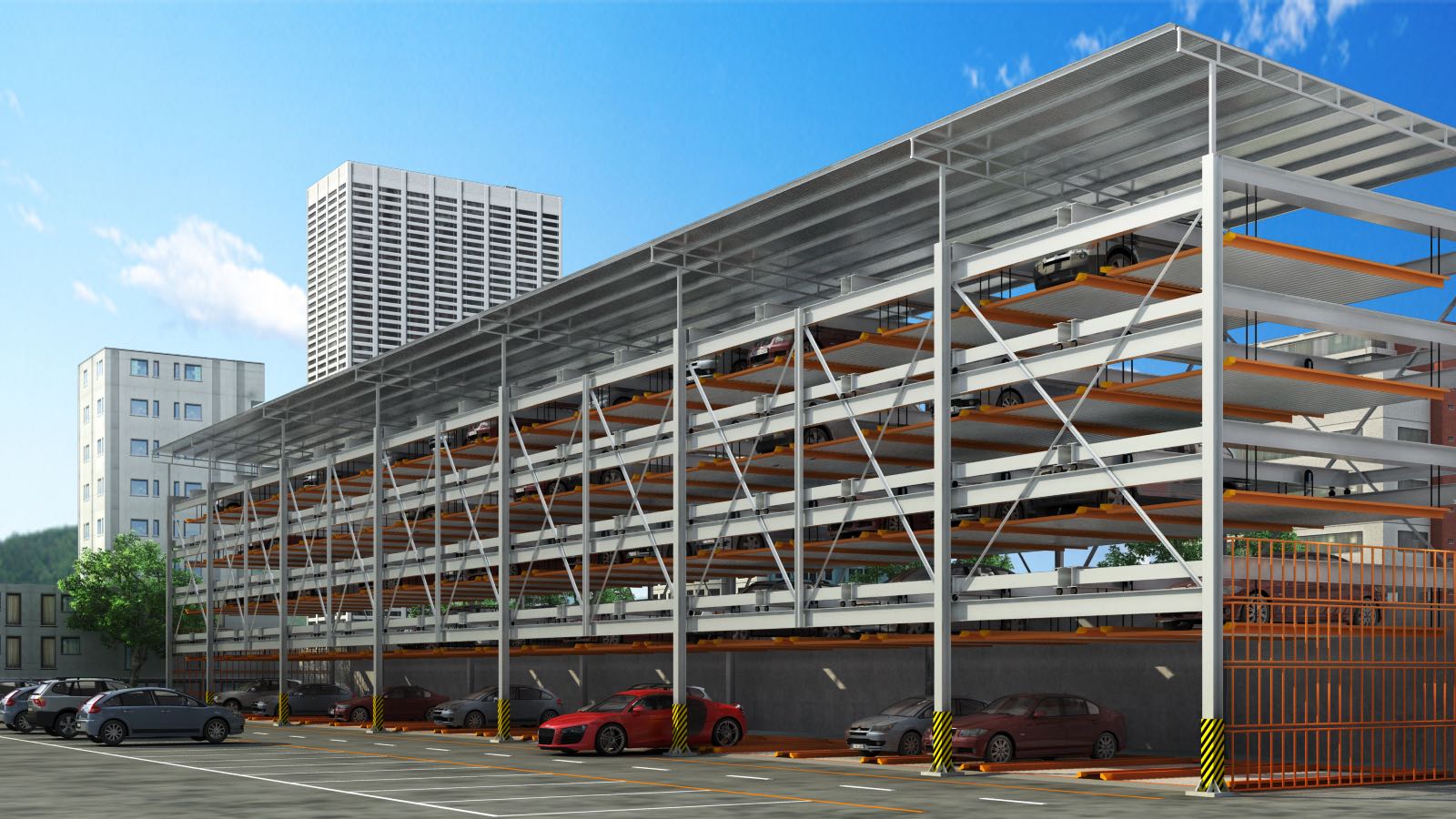

Multi Storey Mechanical Puzzle Parking

Multi-storey (3-6 level) lift and Cross mechanical Motor Lift Puzzle parking system

Operating principle
The vehicle can be accessed by lifting or traversing the vehicle plate, and the vehicle plate is provided in each parking space. The top load plate only does the lifting movement, the ground layer load plate only does the transverse movement, and the middle layer load plate can do the lifting movement and the transverse movement. There is an empty parking space in the middle layer and the ground layer respectively, and the empty parking space can be changed with the transverse movement of the vehicle plate. When accessing a vehicle in a parking space, a lifting channel is formed from below the parking space to above the empty parking space, so that the parking space can be freely lifted to the ground, so as to access the vehicle in the parking space.

peculiarity
1, small footprint, high space utilization, modular installation, can be multi-unit combination, convenient and flexible, can meet a variety of different needs
2, access car fast and convenient, unique span beam design, vehicle access barrier-free.
3, PLC control, high degree of automation, simple operation, easy access to the car. Man-machine interface has good control, a variety of operating methods can be selected.
4, energy saving and environmental protection, low noise. Double the number of parking and save a lot of space.
5, simple structure design, smooth operation, safe and reliable;
6, equipped with electromagnetic anti-fall device, fully ensure vehicle safety; Photoelectric detection, control vehicle specifications and parking position, so that the vehicle orderly parking; The operation automatically stops when the personnel strays into the garage, increasing the safety factor of the garage;
7, equipped with emergency stop button, emergency stop in exceptional circumstances, to avoid external accidents;
8. The ground floor parking space is the same as the general flat garage parking space.

Technical parameters

Qingdao Car Home Garage Co.,Ltd located in the beautiful coastal city----Qing Dao. It is to the south of Qingxin High

Express Way，to the west of the Yanqing first class road and to the east of the Laoshan cinerary district. The convenient

traffic and beautiful cinerary provide us unique development advantage.

　　Qingdao Car Home Garage Co.,Ltd is a specialized company deals with the research and development, panning,

designing, manufacturing, installation and maintenance of auto-stereoscopic parking equipment. Product categories are:

vertical-horizontal parking PSH, simple lifting parking PJS, vertical lifting parking PCS, plane move parking PPY etc.

Completely product category, high safety, simple operation, beautiful shape, also with characteristics of less area

occupation, efficient space utilization, convenient installation, low energy consumption, low noise, all these advantages

make it applicable to all kinds of places.

　　With the most professional experts in our research and development, design, manufacturing and installation talents in

industry, Our company is capable of designing, manufacturing, installing and maintaining the auto-stereoscopic parking

equipment. Our company attaches great importance to the cultivation of talents, the introduction of professional and

technical personnel, training fresh college students, providing a good development platform for each employee.

　　We have the large-scale and modernized production building which covers 100 acres with advanced NC processing

equipment, auto-production line and testing equipment.

　　We aimed at making our company a supplier and servicer for the auto-stereoscopic parking equipment which is both

taking the leading position in domestic and well-known aboard with the core values “the spirit of fighting, the pursuit of

excellence”, with the enterprise tenet “do well, do only, do long, do fine”, with the enterprise mission “provide the best

products for the customers, provide better welfare for the employee, take more responsibilities for the whole society.” With

the enterprise vision “technology taking the leading position, to be the first-classed within the country”, and adhere to the

management philosophy “technology innovates future”.
