Revolutionary Pcb Component Removing Machine Design for Scrap Separation and Recycling

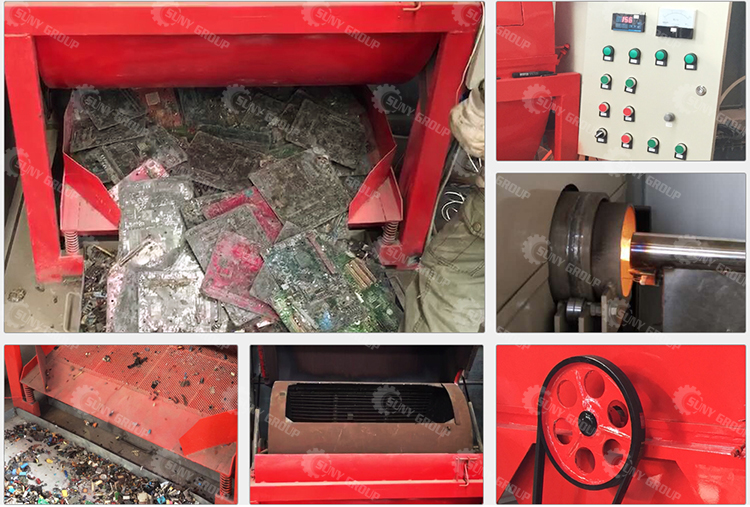

PCB COMPONENTS DISMANTLING MACHINE

PRODUCT DESCRIPTION

PCB Components Dismantling Machine is used to remove the electronic components on different PCB boards, The drumar made of 6mm thickness #45 steel and its own special technology, which have the characteristics of high temperature resistance, abrasion resistance, safety and reliable, stable performance, high precision, durability.

TECHNICAL PARAMETERS

Model	ZYCJ-200	ZYCJ-300	ZYCJ-500
Capacity	200 Kg/H	300 Kg/H	500 Kg/H
Power	5 Kw	7 Kw	14 Kw
Weight	450 Kg	700 Kg	1100 Kg
Dimension (m)	1.670.971.4	1.851.21.52	2.11.271.74

NOTE:

Working Voltage:380V, 415V ,440V or can be customized.
(If you want more detailed parameters and quotations, please contact us)

WORKING PRINCIPLE

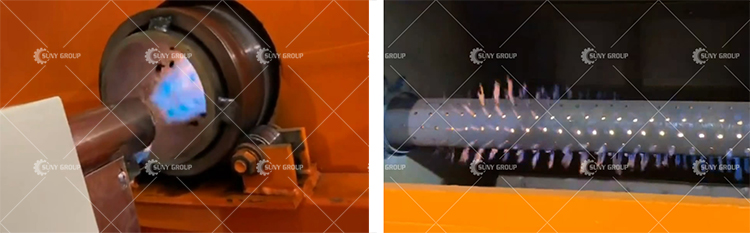

Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works.

So we can dismantle electronic components from PCB mother board. If our customer want to classify them clearly, then we can equipped with electronic components screen and magnetic machine.

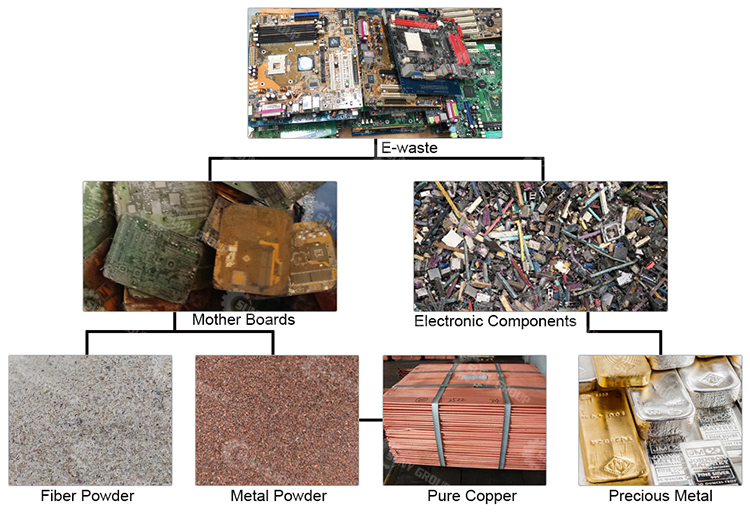

PROCESS DESCRIPTION

Dismantling machine body—Electronic Component screen —Magnetic Separator
1. PCB dismantling machine body: Dismantle the electronic component from mother board, As for the tin, we also can recycle it;
2. Electronic component screen: Classify the similar size electronic components in one side;
3. Magnetic separator: Further classify these components which include iron or not.

RELATED CONFIGURATION

CUSTOMER SITE

CUSTOMER VISITING

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Henan Zhengyang Machinery Equipment Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Revolutionary Pcb Component Removing Machine Design for Scrap Separation and Recycling

Revolutionary Pcb Component Removing Machine Design for Scrap Separation and Recycling

Revolutionary Pcb Component Removing Machine Design for Scrap Separation and Recycling

PRODUCT DESCRIPTION

WORKING PRINCIPLE

PROCESS DESCRIPTION

pcb recycling machine

pcb board recycling machine

waste pcb recycling machine

Revolutionary Pcb Component Removing Machine Design for Scrap Separation and Recycling

You May Like

99.99% Separation Rate Circuit Board Recycling Machine for Customized Recovery Plant

PP Plastic Concrete Electrolytic Cell for Copper Electrorefining or Electrowinning

Pcb Circuit Boards Recovery Plant / PLC PCB Recycling Machine

Automatic Machine For Separating Metal And Resin In Phone Computer Boards

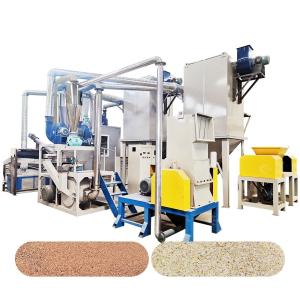

High Copper Purity Waste Circuit Board Recycling Line For Customer Specifications
