    High Accuracy Portable Multifunction Process Signal Calibrator for Industrial Testing

    Ask Lasest Price
    Brand Name : DEARTO
    Model Number : DTEL-15G
    Certification : ISO9001
    Supply Ability : 500 Piece/Pieces per Month
    Price : $5,000.00/sets 1-2 sets
    • Product Details
    • Company Profile

    High Accuracy Portable Multifunction Process Signal Calibrator for Industrial Testing

    Products Description
    DTEL-15G multi-function calibrator is a portable field calibrator powered by a large-capacity high-performance polymer rechargeable battery. It can be connected to an external pressure module. It is easy to operate, powerful, stable, and highly accurate. It is a very cost-effective. High thermal comprehensive calibration instrument.
    Functional characteristics
    1. This calibrator conforms to the following national regulations:
    "JJG1664-2017 Calibration Specification for Temperature Display"
    "JJG617-1996 Verification Regulation of Digital Temperature Indicating Regulator"
    "JJG951-2000 Analog Temperature Indication Regulator Verification Regulations"
    "JJG874-2007 Verification Regulation of Temperature Indication Controller"
    "JJG74-2005 Industrial Process Measurement Recorder (Electronic Potentiometer, Automatic Balance Bridge) Verification Regulations"
    "JJF1183-2007 Calibration Specification for Temperature Transmitter"
    "JJG119-2018 Laboratory pH (Acidity) Meter Verification Regulations"
    "JJF1547-2015 Online pH Meter Calibration Specification"
    2. Simultaneous output and measurement of various standard signals such as V, mV, mA, Ω, Hz, and accurate simulation and
    measurement of various thermocouple (TC) and various thermal resistance (RTD) temperature signals;
    3. The host has a built-in pH (acidity) meter verification function;
    4. The RTD measurement has a custom PRT function. The input platinum resistance corresponding to R0, A, B, C and other parameters
    can be used as a high-precision thermometer;
    5. It can verify various secondary instruments such as temperature instruments, transmitters, recorders, etc., and has the
    function of analog transmitters;
    6. 4 ~ 20mA output and measurement can directly carry out 24V power distribution, and can provide 24VDC independent power supply
    mode;
    7. When verifying that the transmitter measures its loop signal, it can visually display the current parameters and corresponding
    temperature or pressure parameters without conversion;
    8. Large-screen backlit LCD screen, English / Chinese operation menu, complete functions, convenient for the detection and
    calibration of all on-site thermal signals;
    9. The high-precision grade of electrical signal is 0.01, and the accuracy of factory control is ± 0.005% FS;
    10. Good stability, the internal temperature system of the instrument is automatically corrected, and the lower limit temperature
    coefficient is ± 0.0003% FS / ℃;
    11. Highest seven digits display, high resolution of output and measurement (mV resolution: 1μV, Ω resolution: 1mΩ);
    12. Compact size, easy to carry, use anti-shock and anti-fall silicone shell to avoid accidental damage;
    13. Fully enclosed thin film touch button, long service life of 500,000-1 million times;
    14. Support two-wire, three-wire, and four-wire output and measurement of Ω (thermal resistance) signals;
    15. All signals can be automatically stepped and ramped, and any step (ramp) point and step (ramp) time can be set;
    16. Real-time recording of on-site detection data can be achieved to realize paperless recording function;
    17. External high-precision cold junction compensation probe can perform manual or automatic cold junction temperature
    compensation and setting;
    18. Adopt large-capacity high-performance polymer rechargeable batteries, continuous working time of more than 10 hours;
    19. Standard gold-plated test leads, less contact potential and contact resistance, to ensure high-precision calibration;
    20. Five-year warranty of the host, free lifetime accuracy correction, and lifetime service guarantee;
    21. Volume: 220 × 107 × 37mm, weight: 580g.
    Product Paramenters
    Similar Products
    DTMC Multi-channel Thermometer
    DTZ-300BW Multi-channel Temperature and Humidity Itinerant Detector

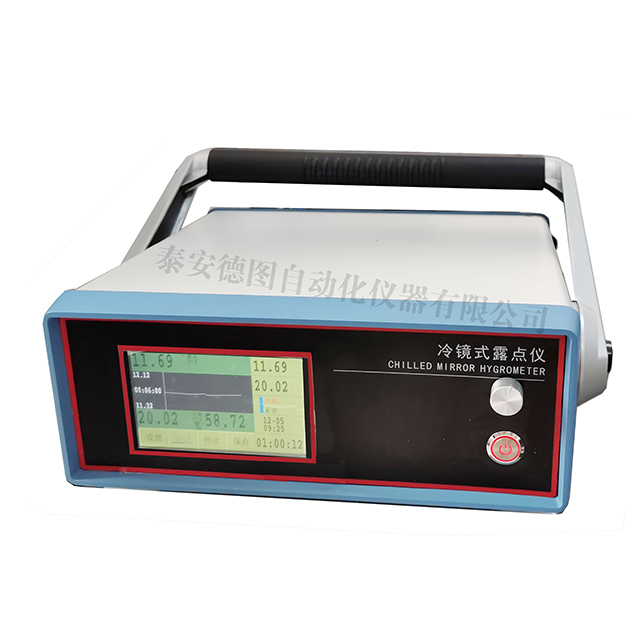

    DT-ACG Drew point meter
