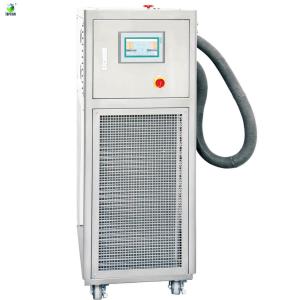

Refrigerated Heating Circulator
- Two-level compressor single liquid temperature control system
Two-level compressor single liquid temperature control system uses
heat energy (steam, cooling water and ultra-low temperature liquid
– that is primary system) integrated into single liquid system or
two-level return circuit to control the temperature of machine,
that is only one heat oil flows into jacketed layer of reactor, It
controls the temperature by operation.
Main features of TOPTION this set refrigerated heating circulator
1. It’s a closed system, operate the program repeatedly,
temperature range is 120℃~300℃.
2. No need to change the heat oil, low capacity also can realize
the fast reaction of control return circuit, shorted the time of
delay of heat reaction.
3. In-built air-heated heat oil assistant system, open assistant
heating system, decrease steam usage pressure according the
demands.
4. Fast running and accuracy matching of heat demands can get the
purpose of saving energy.
5. Precisely control the reaction process temperature by accurate
operation and make repaid reaction to endothermic and exothermic
reaction.
6. Spare standard connection according to demands.
7. Options: control reaction process temperature or single liquid
temperature, moreover set the DELTA temperature.
8. Record of recipe management and production.
Application of refrigerated circulating water bath:
- Metal Jacketed Glass Reactor
- Reactor with lifting function
- Pulley reactor
- Ethylene glycol cooling & heating temperature control system
1. Accurate temperature control is especially important for
repeatability and accuracy of the test results. TOPTION this set
heating and cooling bath adopts s7-200 Siemens PLC, high automation
for thermostat reliably from 5℃ to 40℃ in the industrial process.
2. Safety protection IP54 satisfies the safety requirements and
meands that the machine can be used in hash environment. Every
component can be easy to touch and maintain.
3. High operational security is provided.
4. The SIEMENS 7-inch color touch screen provides clear,
comprehensive data such as graphics, lines, and annotations.
Application of -50℃ ~ 150℃, -45℃ ~ 150℃ heating and cooling
circulators:
1.The testing object is connected to a testing adapter.
2.Components cooling and heating test is conducted by ethylene
glycol aqueous.
3.The whole component is in the environment storehouse which offers
a high or low temperature environment.
4. The testing of components will have a specific temperature
variation curve, it will record the temperature change temperature
range is usually from -40℃ to 150℃.
5. Tolerance tests are usually carried out in an inlinite loop.
- Hot water temperature control system
In the production of pharmaceutical and chemical enterprises, steam
heating should be adopted to achieve heat preservation or hot water
circulation heating.
In order to meet the needs of our customers, and according to our
years experience, we specially designed the steam, ambient water as
a source of hot water temperature control device.
- Please ask TOPTION info@toption-china.com for detailed program
schematics
Main features of this set hot water temperature control system:
1. Heat medium: saturated water vapor pressure: 0.5MPa and above,
temperature 158.8 ℃ and above.
2. Hot water control temperature RT+10℃ ~140℃.
3. Using steam through the pipeline steam and water mixed heat
exchanger on the process of water circulation heating.
4. Steam in the heat transfer process should be small noise, no
vibration, high thermal efficiency.
5. Steam and water mixture heat exchanger lifetime of more than 15
years, so once and for all.
6. Process hot water temperature is constant, without manual duty,
automatic control.
Want to match heating and cooling circulators for your laboratory,
welcome contact info@toption-china.com 24h/7days online service. CE certification, OEM customize, factory
visit welcome.
