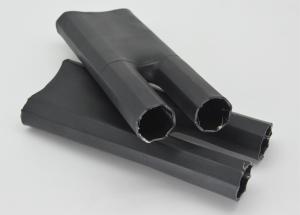

Product Description:
Heat shrink molded shapes are specialized heat shrinkable products designed to provide protection, insulation, and strain relief for various components and connections. These molded shapes are typically made from a durable polymer material, such as polyolefin, that has excellent heat shrink properties.
Features:
• Manufactured from cross-linked polyolefin
• Provide sealing protection and strain relief over multi-core cable crutch, including 2-, 3-, 4—, and 5-core breakout
• Coated with adhesive on the body and the fingers to form a watertight seal
• Flame-retardant breakouts are available upon customer request
• Meeting with varieties of configuration requirements
• Shrink temperature: start at 90°C, and fully recovered at 130°C.
Technical Parameters:
| Property | Test Method | Standard Value |
| | | Insulated Breakout | Oil Resistant Breakout | Semi-conductive Breakout |
| Tensile Strength | ASTM-D-638 | ≥12MPa | ≥12MPa | ≥12MPa |
| Elongation at Break (120℃ ,168 hrs) | ASTM-D-638 | ≥300% | ≥300% | ≥300% |
| Tensile Strength after Aging (120℃,168 hrs) | ASTM-D-638 | ≥10MPa | ≥10MPa | ≥10MPa |
| Elongation at Break after Aging | ASTM-D-638 | ≥230% | ≥230% | ≥230% |
| Tensile Strength after Dipping | ASTM-D-638 | — | ≥10MPa | — |
| Elongation at Break after Dipping | ASTM-D-638 | — | ≥230% | — |
| Dielectric Strength | IEC 60243 | ≥15kV/mm | ≥15kV/mm | — |
| WaterAbsorption | ISO 62 | ≤0.5% | ≤0.5% | ≤0.5% |
| Volume Resistivity | IEC 60093 | ≥1 x 10^13Ω • cm | ≥1 x 10^13Ω • cm | 10^2 -10^4 Ω • cm |
Select Table:
| Product No | Body Diameter/mm | Finger Diameter/mm | Full Length
(±5)/mm | Finger Length
(±5)/mm |
As Supplied
(Min) | After Recovered
(Max) | As Supplied
(Min) | After Recovered
(Max) |
| 2 | WRSZT2-16/8.5(00#) | 16 | 8.5 | 8 | 3.5 | 54 | 22 |
| WRSZT2-24/13(0#) | 24 | 13 | 12 | 5 | 130 | 55 |
| WRSZT2-38/17(1#) | 38 | 17 | 20 | | 145 | 65 |
| WRSZT2-48/22(2#) | 48 | 22 | 25 | 10 | 145 | 60 |
| WRSZT2-60/25(3#) | 60 | 25 | 35 | 11 | 135 | 55 |
| WRSZT2-72/25(4#) | 72 | 25 | 40 | 11 | 140 | 60 |
| 3 | WRSZT3-24/16(-2#) | 24 | 16 | 11 | 5 | 140 | 50 |
| WRSZT3-48/22(-1#) | 48 | 22 | 18 | | 170 | 55 |
| WRSZT3-60/28(0#) | 60 | 28 | 25 | 8 | 175 | 55 |
| WRSZT3-70/36(1# | 70 | 36 | 30 | 13 | 210 | 70 |
| WRSZT3-87/46(2#)*☆ | 87 | 46 | 39 | 16 | 225 | 75 |
| WRSZT3-110/54(3#) | 110 | 54 | 42 | 19 | 250 | 85 |
| WRSZT3-125/64(4#) | 125 | 64 | 58 | 25 | 245 | 95 |
| WRSZT3-140/64(5#) | 140 | 64 | 65 | 25 | 245 | 90 |
| 4 | WRSZT4-38/18(0#) | 38 | 18 | 10 | 5 | 125 | 45 |
| WRSZT4-50/25(1#) | 50 | 25 | 16 | 7 | 135 | 45 |
| WRSZT4-70/32(2#) | 70 | 32 | 23 | 9 | 180 | 65 |
| WRSZT4-82/45(3#) | 82 | 45 | 30 | 13 | 210 | 75 |
| WRSZT4-90/45(4#) | 90 | 45 | 35 | 13 | 210 | 75 |
| WRSZT4-109/54(5#) | 109 | 54 | 42 | 18 | 235 | 65 |
| 5 | WRSZT5-42/20(0#) | 42 | 20 | 11 | 5 | 155 | 55 |
| WRSZT5-57/29(1#) | 57 | 29 | 15 | 7 | 170 | 60 |
| WRSZT5-70/38(2#) | 70 | 38 | 23 | 9 | 170 | 55 |
| WRSZT5-90/50(3#) | 90 | 50 | 30 | 13 | 180 | 60 |
| WRSZT5-120/48(4#) | 120 | 48 | 39 | 14 | 205 | 80 |
Applications:
It is suitable for sealing insulation protection at the branch of multi-core cable, easy operation, reliable performance and long service life. It is generally used with 1KV, 10KV, 35KV heat shrinkable indoor cable terminals or outdoor cable terminals.
Customization:
Customized logo
Min. order: 100
Customized packaging
Min. order: 100
Graphic customization
Min. order: 100
Packaging and delivery
Packaging Details: According to the tubing's size
Packing size:46*46*45cm
