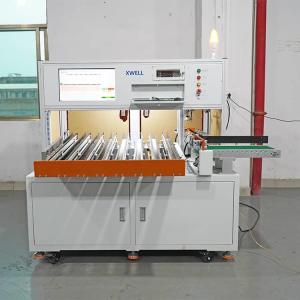

8 Channel Prismatic Square LFP Lithium Battery Cell Sorting Machine
The 8 channel prismatic battery sorting machine is an automatic
sorting device suitable for square shell batteries. This device is
compatible with multiple cell sorting options. The device achieves
voltage and internal resistance testing through an internal resistance tester. The parameters of
each cell are tested according to the upper computer software
settings, and different levels of batteries are moved to different
channels according to the judgment results, thus achieving
automatic sorting of battery products (the device has a scanning
data storage function). The equipment is composed of a feeding
mechanism, a code scanning mechanism, a testing mechanism, an
automatic sorting mechanism, etc. According to user requirements,
the upper computer software is designed and developed. According to
the group information, the battery cells are automatically sorted
and collected into their corresponding feeders. The operation is
simple, the sorting is accurate, and the efficiency is high.
Equipment principle:
Ⅰ The equipment adopts step belt transmission structure, professional
voltage internal resistance tester, single channel test, and
transverse module moving sorting. The transverse module equipped with sensing device for safe ensure the equipment working
normally.
Ⅱ The equipment has a discriminant diagram to explain OK or NG,
production information traceability function, and traceability
information can be uploaded to the customer 's system. The optional
scanning device is easy to bind the test data and the cell, and it
is convenient for the later data retrieval. The intelligent upper
computer software can upload data to the customer MES system
synchronously.
Prismatic Battery Cell Sorting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types | Prismatic cells |
| Receiving Channel | 8 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 600 pcs/h |
| Weight | <300KG |
| Dimension | 2250mm(L)*1200mm(W)*1630mm(H) |
| Tester | HK3561, BT3562 |
| Productivity | 600 pcs/h |
