    500bph Automatic Bottle Capping Machine 5-30L High Precision Barrel Capper

    Ask Lasest Price
    Brand Name : Jinwang
    Model Number : FX-1D
    Certification : CE, ISO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 1 set per month
    Delivery Time : 15-90 Working Days
    • Product Details
    • Company Profile

    500bph Automatic Bottle Capping Machine 5-30L High Precision Barrel Capper

    500bph Automatic Bottle Capping Machine 5-30L High-Precision Barrel Capper


    1. Introduction of FX-1D single head capping machine

    FX-1D single head capping machine is composed of cap sorting &conveying mechanism, cap grabbing & capping mechanism, conveying mechanism, and control system. The whole machine has a simple structure and convenient adjustment. It is suitable for automatic capping of 5-30l barrels.


    2. Parameters of Capping Machine

    1Capacity≤500 barrels/hour
    2Distance from liquid level to the bottle mouth≥200mm
    3Qualified rate≥99%
    4Applicable bottle sizeMin:140×200×320mm Max:260×290×410mm
    5Applicable cap sizeΦ35-75mm H20-40mm
    6Air pressure0.6MPa
    7Power supply~220V 50Hz
    8Power2.0KW
    9Machine weight800Kg
    10Machine size2195×1490×1950mm(L×W×H)

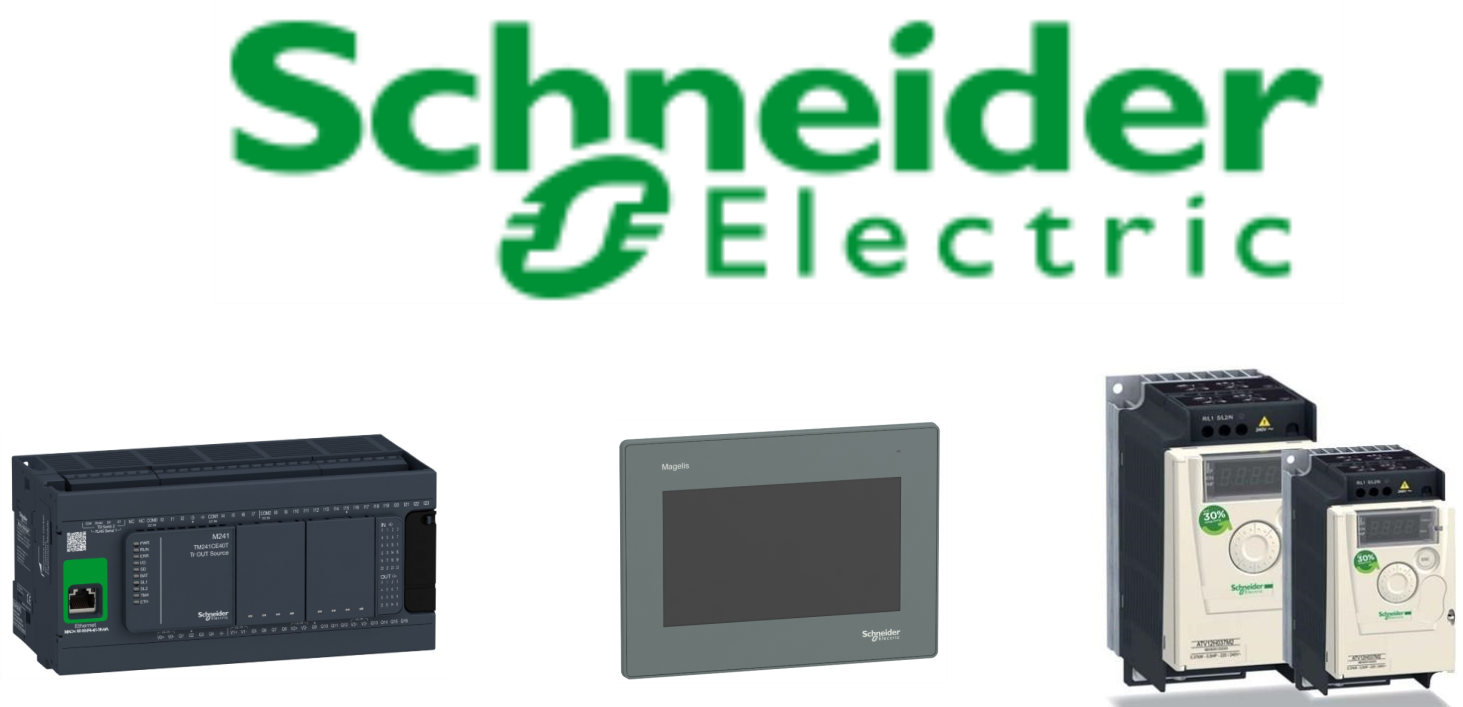

    3. Electrical configurations

    S/NNameBrand
    1PLCSchneider
    2Touch screenSchneider
    3Frequency converterSchneider
    4Counting sensorSick
    5Switching Mode Power SupplySchneider
    6Pressure switchSMC
    7CylinderFTEC
    8Solenoid valveFTEC
    9ButtonsSchneider
    10BreakerSchneider

    3. Key Features of Automatic Capping Machine

    a. Easy to Set-up

    b. Easy to Adjust

    c. Less than 500 Barrels/Hour

    d. Stainless Steel and Anodized Aluminum Construction

    e. Touchscreen Display & Navigation

    f. Calculates and Displays the Production Rate


    4. Advantages

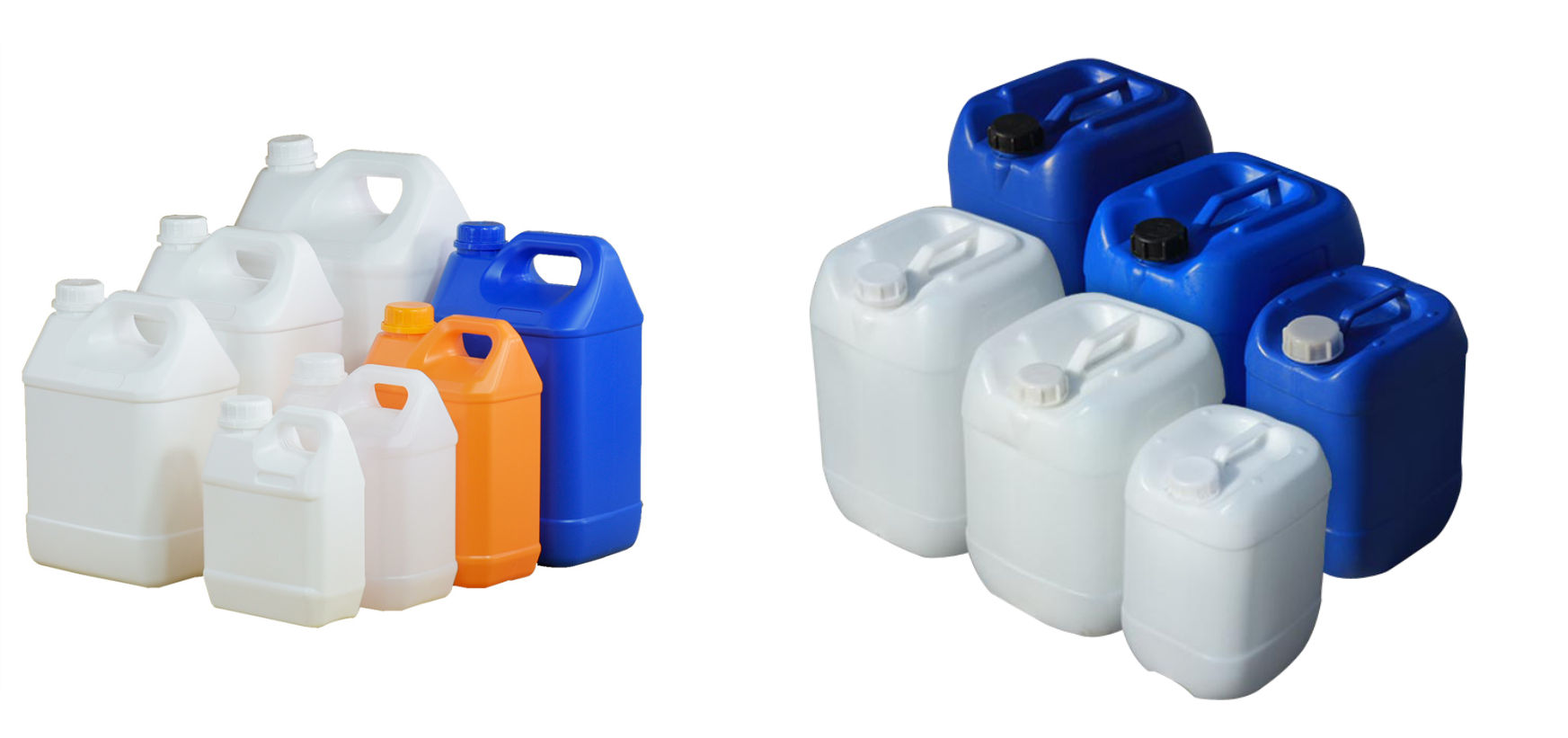

    a. It is widely used in the automatic capping of 5-30l square and flat bottles in pesticide, fine chemical industry, daily chemical industry, fertilizer, oil, and other industries.

    b. It adopts Schneider configuration and integrated electric control system, which is more stable, reliable, safe, green, and low energy consumption.

    c. High-precision: The cap is screwed by an independent motor, and the torque is adjustable without damaging the cap, so as to ensure that the torque of the cover is constant, and the qualified rate is 100%.

    d. The mold automatically positions the cap, the screwing process is stable and without bottle shaking.

    e. The enlarged cap sorter is easy to adjust and suitable for all kinds of general cap types.
