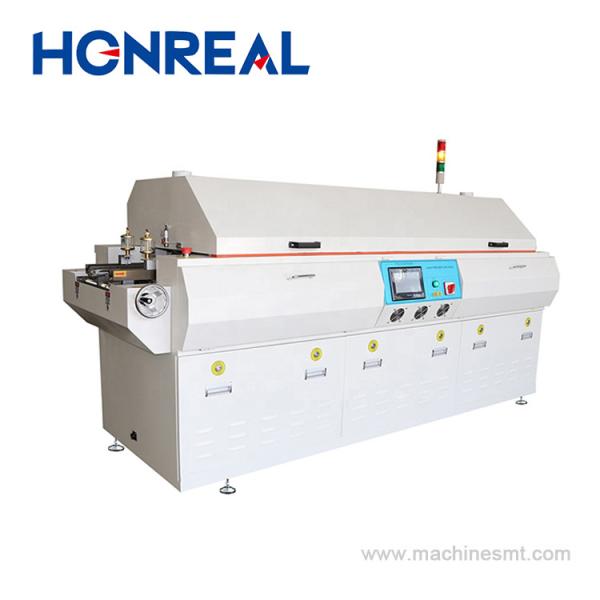

Smt Reflow Soldering Oven Smd Vacuum Convection Vapor Phase Reflow
Oven
Product introduction:
1.Streamline shape design make the oven looks great. Touch screen
and PLC controlling system .It can save 50 groups temperature
parameters and provide extra 2 ports for profile testing.
2.The software has the functions like , temperature setting and
editing, PCB parameter menu, and profile testing, alarms and
multi-languages conversion.
3.Brand electrical component like Schneider (German) breaker,
KETE(Korea) SSR, Omron (Japan) box breaker. Meanwhile the CE
certificated blower is specially design for lead-free reflow oven.
It runs stable and lower noise.
4.Upper zone and hood can be opened by the electrical screw
automatically. It is very convenient for cleaning and
maintenance.Electrical pole will hold the upper zone andn cover,
even when power is off suddently, the cover will not drop down.
It's much safer than the air cylinder holder.
5.Specially designed Ni-Cr heater filaments, provide a very quick
ramp up time. It takes just 15 minutes from ambient to setting
temperature.
6.The inner tunnel of the oven is made of stainless steel which
easy for cleans.
7.The entire upper and bottom zones are forced air convection;
provide great temperature accuracy and uniform.
8.Stainless steel mesh belt and pin chain conveyor work together.
9.Industrial chiller provides better cooling performance.
10.SMEMA interface.
Machine's parameters:
| Model | HRM-640 |
| Heating zones | Upper 6 zones |
| Bottom 6 zones |
| Heating tunnel | 1938mm |
| Dimension | L3571*W1200*H1450 |
| Net weight | about 1100Kg |
| General power | 41KW |
| Power consumption | Approx.8--8KW |
| Ramp Time from Room Temperature to 260 Deg C | < 15 mins |
| Controlling type | Touch screen and PLC |
| Heating method | Fully forced air convection |
| Temperature controlling | PID close-loop control, SSR drive |
| Temperature range | Ambient---350℃ |
| Temperature accurancy | ±1 ℃ |
| Temperature uniform | ±2 ℃ |
| Cooling | one cooling zones, fans for cooling |
| Conveyor method | Mesh belt and chain conveyor |
| Conveyor height | 900±20mm |
| Mesh belt width | 450mm |
| Max PCB width | 400mm |
| PCB clearance | 30mm |
| Conveyor direction | Left to right |
| Conveyor speed | 0-1000mm/min |
| Hook lift | Electrical screw pole |
| Power supply | 380v,3ph,50hz |
HRE-640 Lead Free Reflow Oven Controlling System
1.Full English interface, easy to be operated which can stock more
than 50groups parameters with recommended leaded/leaded free
2.temperature/speed setting before machine be delivered.You can
masterhow to operate it within 10 minutes.
3.Unique program design can adjust the start power consumption
andlower the start current. Best choice for customer with limit
power supply.
4.Colored touchscreen interface with PLC controller ensure
stableoperation of machine.
HRE-640 Lead Free Reflow Oven Electrical
Shenzhen Honreal Technology Co.,Ltdis a national high-tech
enterprise,Specializing in smt equipment research and development,
production, sales. Services for the world´s top 500 electronic
companies.The registered capital of the company is 5
million.Havingexperienced technical team andexcellent technical
innovation ability, Creating a better product supply chain and
service team and meeting differentcustomer needs is our long-term
goal. We will meet customer needs by understanding customers,
putting them first and providing valuable services.
Our Services
Services and commitments
Before buying the product, we will be a comprehensive analysis of
the views and requirements and recommend it to the actual needs of
customers with the most suitable products and let customers know
that the performance characteristics of the selected product
referred to in accordance with customers.
In purchasing the products, we promise to allow customers to
clearly know the completion of the product. In strict accordance
with the relevant provisions of the contract terms of production,
delivery, to ensure product intact and in place within the
stipulated time to customer requirements.
The company promises:
We highly value your feedback on the quality of information, all
the information will be given to the quality of feedback responses;
In accordance with the contract requirements for the installation,
commissioning and training of technical personnel for the buyer
sold the equipment.
We provide long-term technical support, Our company has adequate
supply of consumable buyer if requested to order spare parts, our
company can provide timely.
FAQ
Q:How can you guarantee your sales’ quality?
A:We guarantees that every set of machines are under rigorous
testing before they are delivered to you, to ensure the excellent
performance of all products.
Q:How is the training?
A:After buying our machines, your engineers can go to our company
or it is so easy to operate
the machine according the training video and user manual,the user
manual will come with the machine together.
Q: I would like to ask you if it's possible to have my logo on the
product.
We hope you know that our company perfectly support customized logo
service,we’re do this. Besides, it's totally free,so just tell us
your requirements.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is
enough to learn to operate the machines.
