Product Description

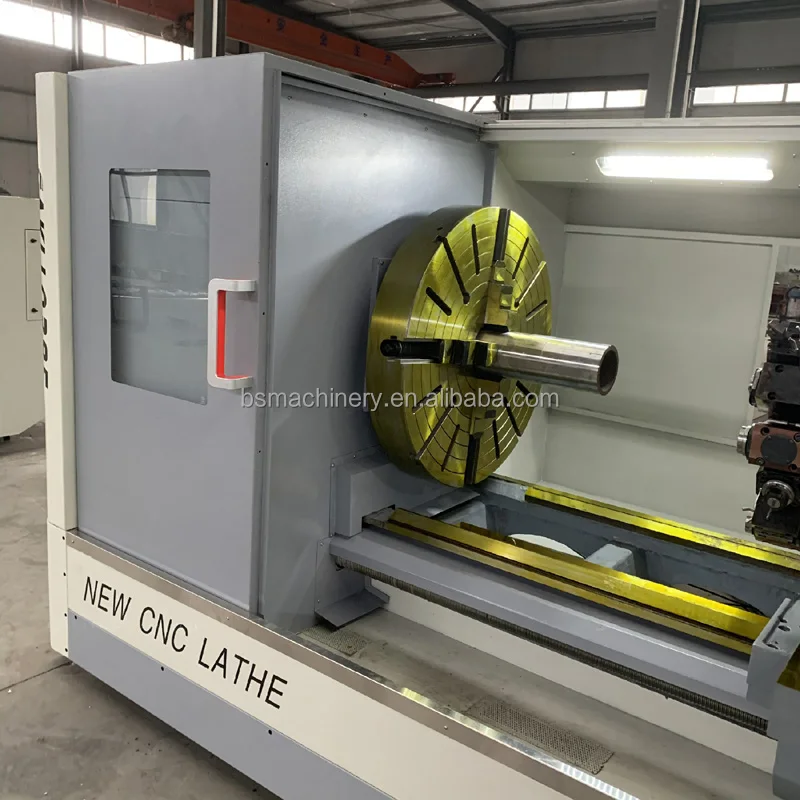

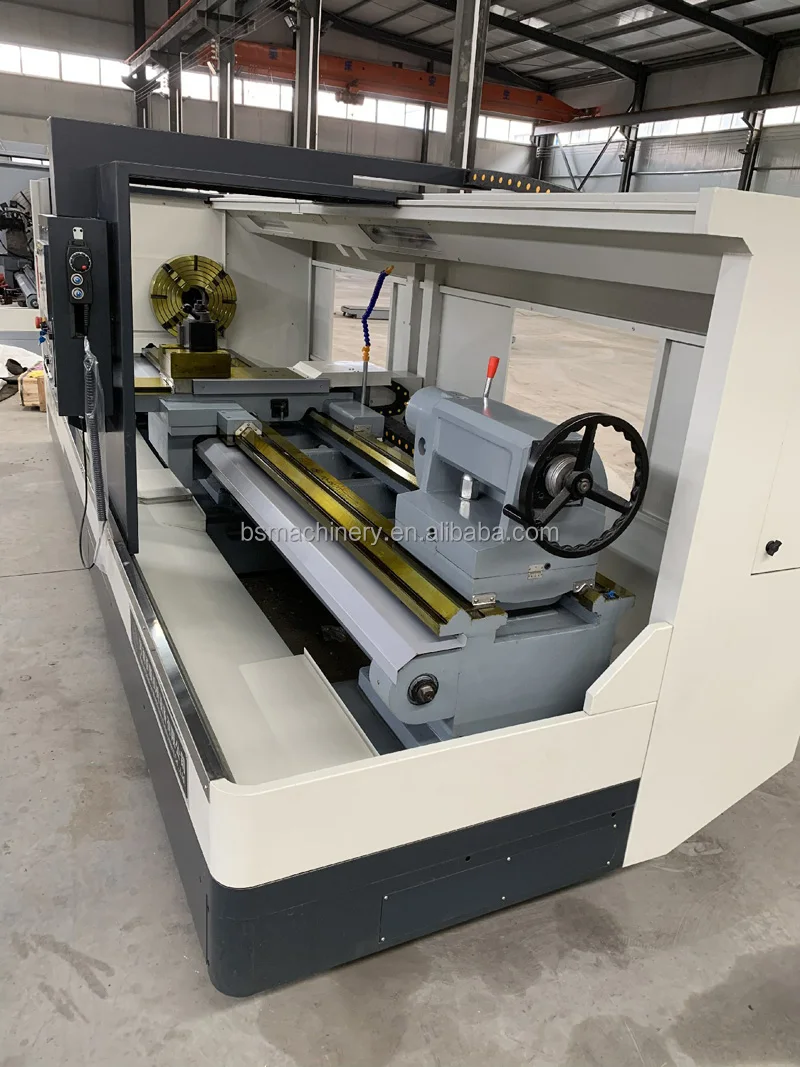

CK6180 Cnc Turning Lathe Horizontal Machine Metal Processing Flat
Bed Cnc Lathe Machine

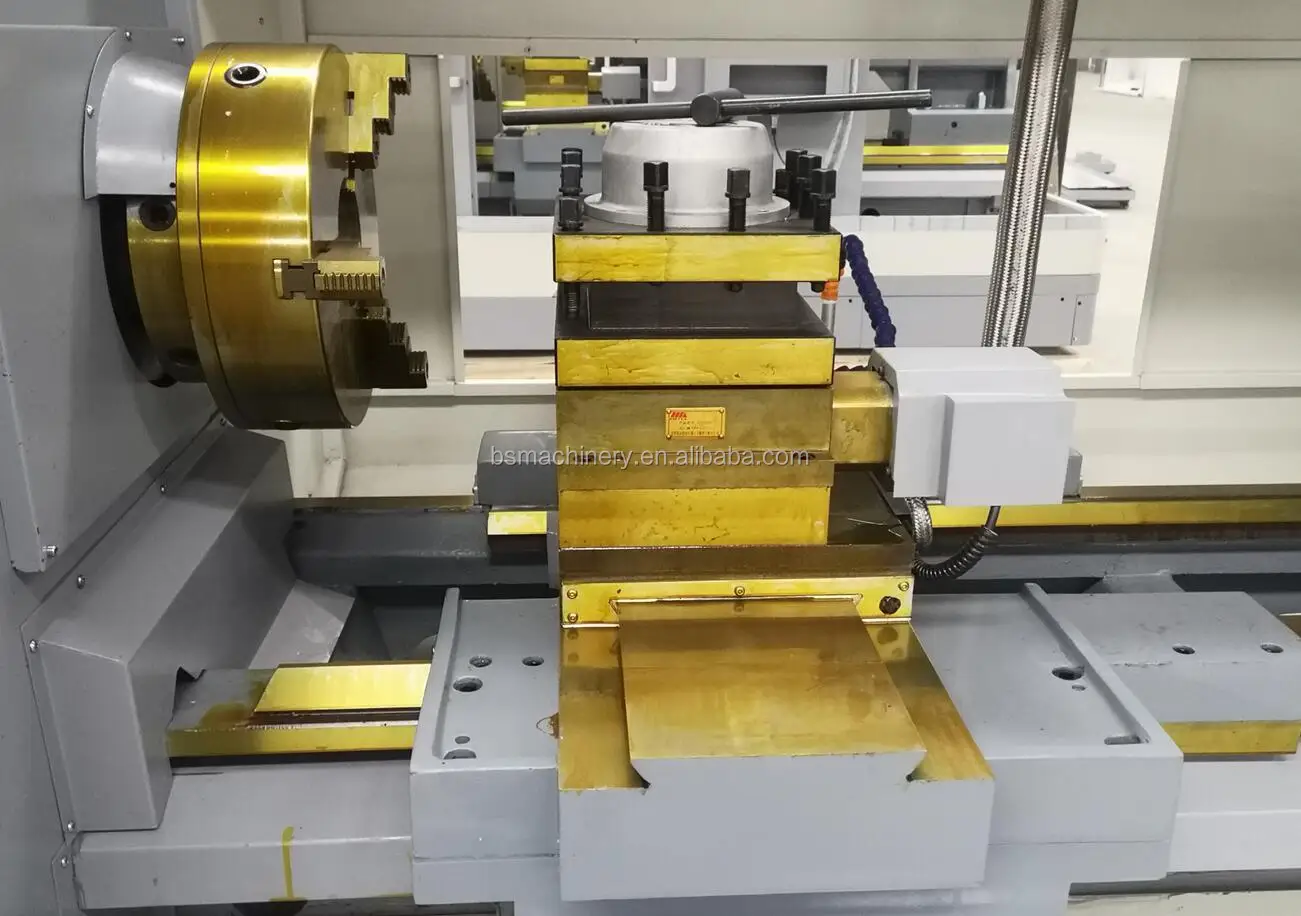

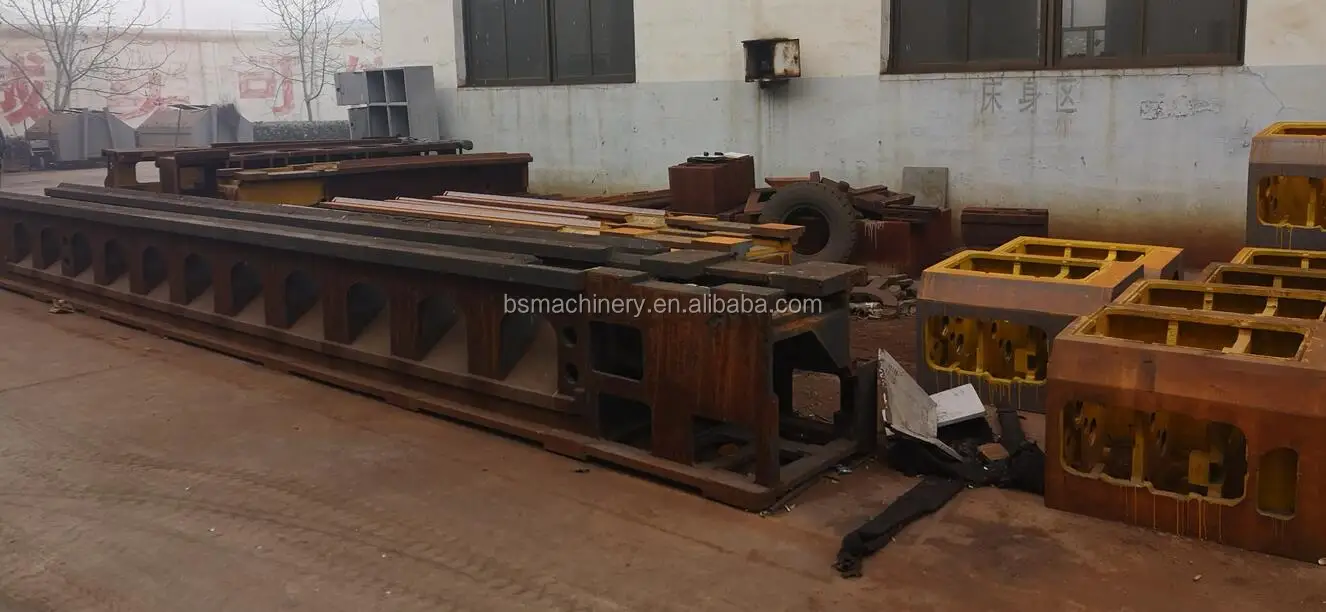

Both the machine tool guide rail and the sliding saddle guide rail
are made of special material hard guide rails. They are extremely
hard, wear-resistant, durable, and maintain good machining accuracy
after high-frequency quenching.
The CNC system uses the GSK980TC3 and GSK system servo drive. It
also adopts domestically renowned and high-quality ball screws and
high-precision screw bearings.
The spindle uses high-precision spindle bearings that are precisely
assembled and dynamically balanced, ensuring high precision, low
noise, and strong rigidity.
CNC lathe machine
1.Max swing dia:800mm
2.Spindle bore: 105mm
3. Max length:3000mm
4. GSK, KND, SIMENS, FANUC SYSTEM
Model | CK6180/3000 |
Swing over bed | 800mm |
Swing over carriage | 480mm |
Distance between centers | 3000mm |
Taper of barrel | M.T.120 |
Spindle hole | 105mm |
Range of speed(variable) | 70~850r/min |
Feed motor power(X/Z) | 6N.M/12N.M |
X rapid traverse | 4m/min |
Z rapid traverse | 6m/min |
Max. travel of X axis | 500mm |
Max. travel of Z axis | 2850mm |
Motor power | 11Kw |
Tool-post | 4 stations or 6 stations |
Max.tool size | 25x25mm |
Min input unit | 0.001mm |
Repeatability accuracy(X/Y) | 0.012mm |
Barrel travel of tailstock | 250mm |
Barrel taper of tailstock | M.T.3 |
Packing size(L x W x H) | 6300x2000x1650mm |
N/G weight | 5000kg |
Features:
(1)The machine can process precisely internal or external diameter,
face, taper, arc and threading with high efficiency
(2) Standard tool-post is 4-stations, also 6-stations tool-post can be optional selection
Spindle speed changed by frequency
(3)Induction harden bed-way. Bed saddle with plastic sticker can
improve the accuracy and service life of the machine
(4)The spindle is supported by imported precision bearings
(5)Normally machine is provided with 3-jaw chuck. According to
customer’s optional selection, hydraulic chuck or pneumatic chuck
also can be supplied.
