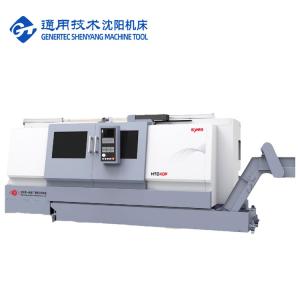

SMTCL CNC Turning Center 45 Degree Slant Bed CNC Lathe HTC 40ny CNC Turning Milling Machine

Product Description:

Slant bed CNC lathe HTC 40ny Full Function CNC Lathe Turning Center

HTC 40ny horizontal CNC lathe can be selected with 45° integral inclined bed, casting by resin sand process, reasonable internal rib layout, wide guide surface, high overall rigidity of the bed, with good torsional performance, smooth chip removal advantages

Product Features:

A:High rigidity

It adopts 45° and 75° high-rigidity integral inclined bed, and all castings are optimized by finite element
method, which effectively eliminates vibration during machine operation and cutting, enhances reliability, and is easy to
maintain, enabling customers to obtain durable and stable processing quality.

B:high precision

All parts of the machine tool adopt precision grinding parts from well-known manufacturers at home and abroad. The advanced structural design and perfect process measures make the overall layout compact, harmonious, and good rigidity, ensuring that the machine tool has high machining accuracy and long-term accuracy retention.

C:Pleasant

Optional overall 75° inclined bed machine tool, equipped with a vertical and horizontal center frame, the center of the spindle is closer to the operator, which is convenient for loading and unloading workpieces and chip removal.

D:rich configuration

The machine can be configured with various modules to meet the different needs of customers. Some models can be equipped with power tool tower to become the turning center, with rich configuration and high cost performance.

Product Paramenters:

Item	UNIT	HTC 40ny
Max. swing over bed	mm	Φ660
Max. swing over carriage	mm	Φ400
Max. cutting diameter (disc/shaft)	mm	Φ400
Max. cutting length	mm	900/1400/1900/2400
Spindle bore diameter	mm	Φ70
Form of spindle nose		A2-8
Max. diameter through bar	mm	Φ60
Main motor power (continuous / 30min)	kw	22/30
Range of spindle speed / Max. output torque	r/min	35~3000 / 860
Chuck diameter	inch	10”
Max. travel of X-axis	mm	270
Max. travel of Y-axis	mm	±70
Max. travel of Z-axis	mm	1050/1550/2050/2550
Rapid speed (X /Z axis)	m/min	12/12
Rapid speed (Y-axis)	m/min	8
Form of tool turret		Horizontal 12-position turret
Size of tool shank	mm	25X20/Φ40
Positioning accuracy (X axis)	mm	0.01
Positioning accuracy (Z-axis)	mm	0.015/0.020/0.025/0.035
Positioning accuracy (Y-axis)	mm	0.015
Positioning accuracy (C-axis)		40”
Repositioning accuracy(X axis)	mm	0.005
Repositioning accuracy(Z-axis)	mm	0.007/0.010/0.013/0.020
Repositioning accuracy(Y-axis)	mm	0.006
Repositioning accuracy(C-axis)		28”
Machining accuracy		IT6
Max. weight of disc workpiece	kg	200
Max. weight of shaft workpiece	kg	800
weight of machine	kg	7500/9000/11000/12500
Overall dimensions of machine (LxWxH)	mm	4500x2286x2260; 5050x2286x2260; 5500x2286x2260; 6050x2286x2260

Industry application:

Workpiece example: guide sleeve

Processing model: HTC50t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 0.1-8mm/r (including thread) Processing efficiency: 26 minutes

Workpiece example: medium 500 cylinder

Processing model: HTC63350t Workpiece material: 27SiMn Linear speed: 120-180m/min Feed rate: 02-10mm/r (including thread) Processing efficiency: 75 minutes

Workpiece Example: Drive Axle

Processing model: CQ850n Workpiece material: 40Cr Linear speed: 150-180m/min Feed rate: 0.1-0.3mm/r Processing efficiency: 12 minutes

Workpiece example: RE2B axle

Processing model: HTC63n (double turret) Workpiece material: 35CrMo Linear speed: 150-260m/min Feed rate: 0.2-0.5mm/r (including thread) Processing efficiency: 39 minutes.

OUR Service:

1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

Exhibition:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Shanghai HD M&E Tech Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

SMTCL CNC Turning Center 45 Degree Slant Bed CNC Lathe HTC 40ny CNC Turning Milling Machine

SMTCL CNC Turning Center 45 Degree Slant Bed CNC Lathe HTC 40ny CNC Turning Milling Machine

SMTCL CNC Turning Center 45 Degree Slant Bed CNC Lathe HTC 40ny CNC Turning Milling Machine

Workpiece example: guide sleeve

Workpiece example: medium 500 cylinder

Workpiece Example: Drive Axle

Workpiece example: RE2B axle

Milling Slant Bed CNC Lathe

45 Degree Slant Bed Turning Center

Slant Bed CNC Mill Turn Center

SMTCL CNC Turning Center 45 Degree Slant Bed CNC Lathe HTC 40ny CNC Turning Milling Machine

You May Like

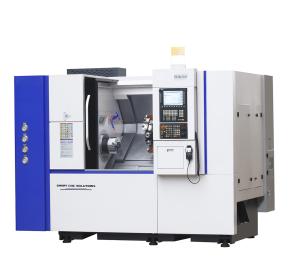

TN 500 3 Axis Heavy Duty Turning Machine Hydraulic 4000rpm
