China 5 Axis CNC Machining Services And Deliver Precision 5 Axis
Machined Parts
Our ISO 9001 certification shows that we fabricate 5-axis milled
parts to meet the tightest tolerance requirements.
Our standard tolerance for CNC-milled plastics is ISO-2768-m and
ISO-2768-f for metals.
Get high-quality and precise complex parts with top-notch
dimensional stability.
5-axis machining services offer unparallel speed and flexibility.
Our experienced team and manufacturing capabilities help rapidly
design and fabricate complex, time-sensitive components.
With world-class equipment, expertise, and experience, JYH uses two
outstanding setups to provide precise, complex parts.
Parts Certifications
ISO 9001:215 | AS9100D | ITAR Registered
►Free & Automatic DFM feedback
►Tolerances down to ±0.0004″ (0.01mm)
►24/7 engineering support
5 Axis CNC Machining Facilities
JYH implements strict quality control protocols to ensure that
every client receives superior-quality products.
We have dedicated workshops with state-of-the-art equipment for a
wide range of operations.
This way, we incorporate meticulous inspection in our 5-axis CNC
machining processes.

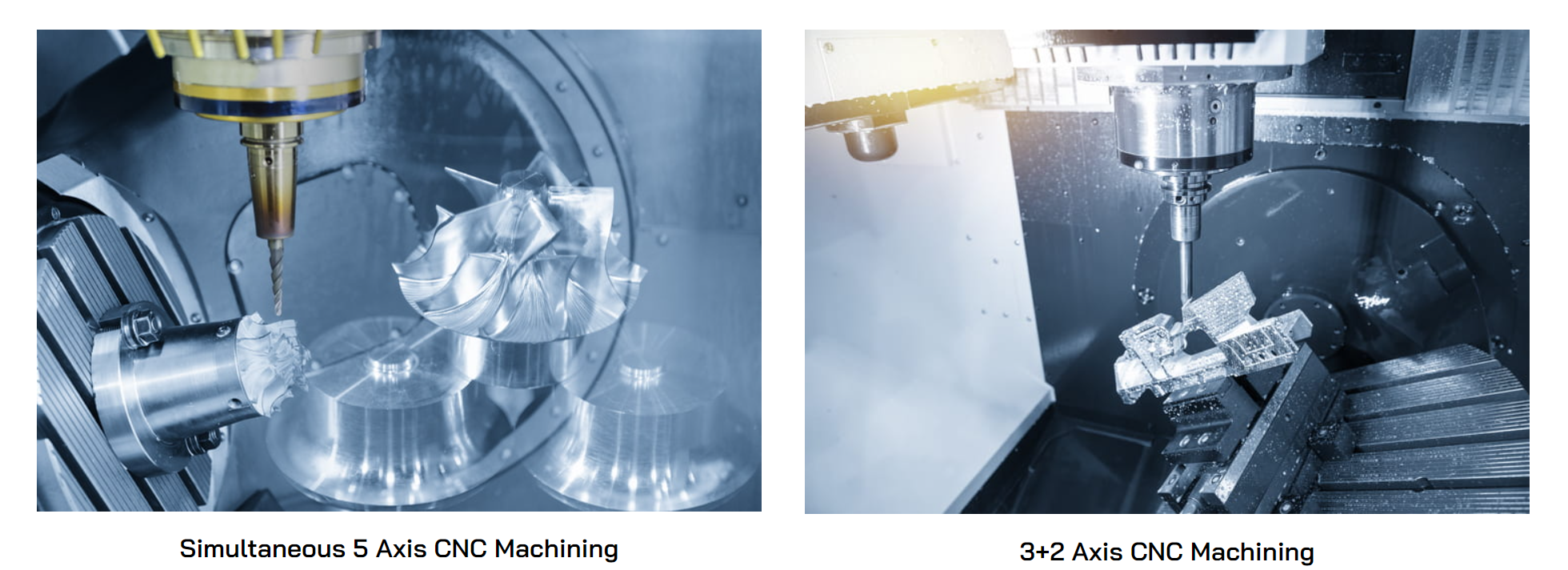

Simultaneous 5 Axis CNC Machining
| 3+2 Axis CNC Machining |
| ♦Fast, effective, and continuous 5-axis CNC machining with improved
transitioning and surface quality. Here, we use 5-axis machining
center that can continuously adjust the movements on all five axes
without stopping. Our 5-axis CNC machining has intelligent
functionalities to ensure efficient continuous processes and
transitions. | ♦Take advantage of the optimal 3+2 axis machining technology for
your applications. The process keeps the part fixed in a specific
orientation to allow the usual 3-axis machining process. Our 3+2
axis machining uses shorter, more rigid cutting tools to offer the
parts better dimensional stability. Get complex CNC machined parts
with tight tolerances at lower costs and cycle time. |
Tolerance for 5 Axis CNC Machining Services
Type
| Tolerance |
Linear dimension
| +/- 0.015 mm
+/- 0.002 inch
|
| Hole diameters (not reamed) | +/- 0.015 mm
+/- 0.002 inch
|
| Shaft diameters | +/- 0.015 mm
+/- 0.002 inch
|
| Part size's limit | 860 * 660 *650 mm
39.0 * 23.5 * 23.5 inch |
5 Axis CNC Machining Part Size Standards
CNC 5 Axis CNC Machining Capabilities:
| Item |
Factory Capabilities
| Network Capabilities |
| Maximum Part Size | 22 in. x 14 in. x 3.75 in. (559mm x 356mm x 95.3mm) | 25.5 in. x 25.5 in. x 11.8 in. (650mm x 650mm x 300mm) |
| Minimum Part Size | 0.25 in. x 0.25 in (6.35mm x 6.35mm) | 0.019 in. (0.50mm) |
| Tolerances | +/- 0.005 in. (+/- 0.13mm) | +/-0.001 in. (0.020mm) |
| Radious | Sharp inside corners on a part will be radius (rounded) as a
natural result of the CNC machining process. |
| Text | Plastic and soft metals:
Minimum width of 0.018 in. (0.457mm), depth of 0.0118 in. (0.3mm).
Example text size would be 16 point Arial Rounded MT font.
Hard metals:
Minimum width of 0.033 in. (0.838mm) and depth of 0.0118 in.
(0.3mm). Example text size would be 22 point Arial Rounded MT font.
Hard metals:
Minimum width of 0.033 in. (0.838mm) and depth of 0.0118 in.
(0.3mm). Example text size would be 22 point Arial Rounded MT font.
|
The five axes in 5-axis CNC machining refer to the following
directions of movement:
- X-axis: Horizontal movement from left to right.
- Y-axis: Horizontal movement from front to back.
- Z-axis: Vertical movement up and down.
- A-axis: Rotational movement around the X-axis.
- B-axis: Rotational movement around the Y-axis.
Surface Finish Options for 5 Axis CNC Machining Parts
Our part finishing services are exceptional as our teams are
experts in plastic, composite, and
metal surface finishing.Furthermore, we have state-of-the-art
machines and infrastructure to bring your idea to life.
Applications of 5 Axis Milling
Our 5-axis milling services is your best bet when it comes to
manufacturing complex, highly precise components
for a wide range of industries. Our manufacturing capabilities
allow us to accelerate the production of several components,
including:
►Automotive components: Engine housing, light guides, valves,
engine covers, inspection jigs;
►Aerospace parts: Fuselage sections, bulkheads, landing gear
components
Medical and Surgical tools: Forceps, scalpels, spacers, clamps,
cutters, surgical scissors;
►Military components: Submarine parts, turbine blades, engine
parts, weapons, sensors;
Military components: Submarine parts, turbine blades, engine parts,
weapons, sensors.
Quality Inspection
- In addition to our stringent in-process controls, all components
must pass a thorough final inspection.
we have a coordinate measuring machine, salt spray testing
machines, profile projectors and other precision
measuring devices, etc.
- Customers' CAD drawings can be directly imported in the coordinate
measuring machines (CMM) for a
direct comparison to the dimensions that are taken from the
physical part.
- All testing is conducted in a 20 degree Celsius climate-controlled
inspection room and the CMM is calibrated to
GB/T 16857.2-2006 (ISO10360-2:2001) standards. All components and
sub-assemblies are 100% inspected,
identified with a logo if required and a final inspection is
generated pertaining to all the critical dimensions.
Our payment method
Our shipping method
Frequently Asked Questions
► When should I choose 5-axis CNC machining?
The flexibility of 5-axis CNC machining allows the creation of
complex components with complex shapes and geometrical details.
The stability of the machining tool also gives more consistent and
smoother surface finishes.
Therefore, you should choose 5-axis machining whenever you need to
produce complex parts with tight tolerances.
► What’s the maximum part size for 5-axis CNC machining?
Our 5-axis milling machines can accommodate a length of 42 inches
bar stock.
This allows us to work on a wide range of projects for various
applications.
► How much does your CNC machining service cost?
The cost of your CNC machining projects is not fixed as it depends
on the characteristics of your project
such as the design, and tolerances. Machining times of the material
to be used in the project also contribute to this pricing.
For example, if you’re making a part that has a combined machining
and material cost of $2 and a setup cost of $200,
one part will cost $202. However, if you make 200 parts, each would
cost $3!
