SMD Inductor For Switching regulators with low operating voltages
7447732033
Characteristics
- Open size
- Saturation currents up to 14 A
- Low tolerances at high inductance values
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Applications
- Switching regulators with low operating voltages (graphic cards,
embedded PC-Cards, mainboards)
- Integrated DC/DC converter
- Optimal attenuation in MHz frequency range
Electrical Properties:
| Properties | | Test conditions | Value | Unit | Tol. |
| Inductance | L | 100 kHz/ 5 mA | 3.3 | µH | ±20% |
| Rated Current | I R | ΔT = 40 K | 1.39 | A | max. |
| Saturation Current | I SAT | |ΔL/L| < 10 % | 2.09 | A | typ. |
| DC Resistance | RDC | @ 20 °C | 91 | mΩ | typ. |
| DC Resistance | RDC | @ 20 °C | 120 | mΩ | max. |
| Self Resonant Frequency | f res | | 80 | MHz | typ. |
| Operating Voltage | V | DC | 120 | V | max. |
Shape and Dimensions:

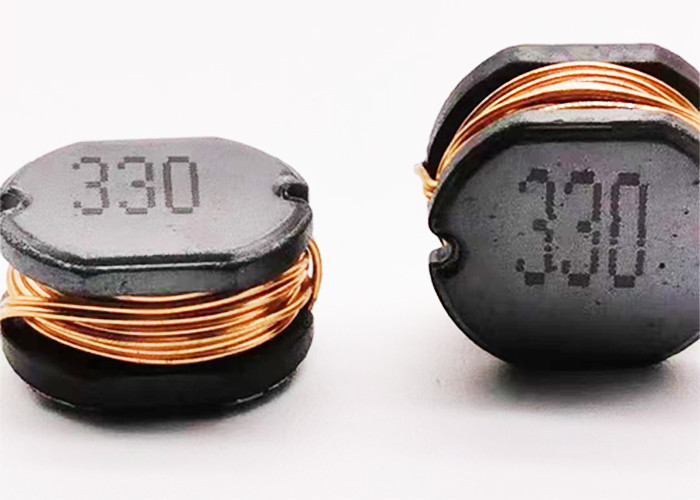

Product picture:
SMD Inductor For Switching regulators with low operating voltages
7447732033
