CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V

    Buy cheap CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V from wholesalers

    Buy cheap CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V from wholesalers
    • Buy cheap CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V from wholesalers

    CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V

    Ask Lasest Price
    Brand Name : OEM, No brand, customizable
    Model Number : MCTRL4K LED Display Controller Specifications
    Certification : CE, RoHS, 3C
    Payment Terms : T/T
    Supply Ability : 1000 pcs/month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    CE MCTRL4K LED Display Video Processor Controller Input Voltage 240V

    MCTRL4K LED Display Controller Specifications


    Company Profile

    We are HK Brilliance Tech Co., LTD. Our headquater is located on HK, China; and our factory is located on Shenzhen and Guangzhou, China. We have over 10 years manufacturing experience. We provide wide option of model of this type of product and we support customization for products and brand and logo.

    Our products enjoy quick sale all over the world. We have more than 3 steps and procedure for quality check and quality assurance system. Each of products will ensure over 48h final performacne testing. With good quality, client always give good repute for our products.


    Change History


    Document VersionRelease DateDescription
    V1.2.02022-04-01

    . Added the function of switching from RGB limited to RGB full.

    . Added the phase offset function.

    V1.1.12020-07- 18. Optimized the content and style of the document.
    V1.1.02019-09-04

    . Added the 3D function.

    . Added the low latency function.

    . Added the function of individual gamma adjustment for RGB.

    . Added HLG mode.

    . Added the function of input source bit depth settings on the control computer.

    . Added the function of importing custom EDID.

    . Added support for the 25Hz frame rate.

    . Optimized HDR10 performance by adding low grayscale mode adjustment.

    V1.0.02019-09-26

    First releas


    Introduction

    TheMCTRL4Kcomeswithmanyindustry- leadingtechnologiessuchasHDR,individualgammaadjustmentforRGB,lowlatency,3D,andpixellevelbrightnessandchromacalibration.Thesetechnolog iesimprovethedisplaybrightness,grayscaleandcolorperformance,presentingmoreuniform,detailedandvividimages.
    TheMCTRL4Kisstable,reliableandpowerful,dedicatedtoprovidinguserswithanultimatevisualexperience.Itcanbemainlyusedintherentalandfixedinstall ationapplications,suchasconcerts,liveevents,securitymonitoring, OlympicGames,varioussportscenters,andmuchmore.

    Certifications

    FCC, CE, UL&CUL, EAC, CB, IC, KC, RCM


    Features



    . A variety of input connectors

    - 1x DP 1.2

    - 1x HDMI 2.0

    - 2x DL-DVI

    . 16 Neutrik Gigabit Ethernet ports and 4 optical ports

    For DP/HDMI input, the maximum loading capacity is 8,800,000 pixels.

    For DVI input, the maximum loading capacity is 8,300,000 pixels.

    The maximum output height or width of a single MCTRL4K is 7680 pixels.


    . High bit-depth inputs: 8bit/10bit/12bit

    . HDR function

    HDR10 and HLG are supported.

    The MCTRL4K can work with the receiving cards

    that support HDR to greatly enhance the image

    quality of the display, presenting more vivid and

    detailed images.

    . 3D

    The MCTRL4K can work with the 3D emitter

    EMT200 and 3D glasses, allowing you to

    experience 3D display effects.

    . Individual gamma adjustmen

    For 10-bit or 12-bit inputs, this function can

    individually adjust the red gamma, green gamma and blue gamma to effectively control image non- uniformity in low grayscale conditions and white

    balance offset, allowing for a more realistic image.

    . RGB limited to RGB full

    This function automatically converts the color

    range of the input source from RGB limited to RGB full so as to display natural black in low grayscale conditions.

    . Low latency

    When low latency and input source sync are

    enabled, and cabinets are connected vertically, the delay between the input source and receiving card can be reduced to one frame.

    . Inputs with decimal frame rates


    Adaptive to 23.98/29.97/47.95/59.94/71.93/119.88

    Hz

    . Pixel level brightness and chroma calibration


    . Ultra-high resolution input

    Supports ultra-high resolution settings with NVIDIA

    graphics card.

    . Screen configuration on web

    . Cascading of up to 10 MCTRL4K units


    Table 1-1 Limitations on functions


    FunctionLimitations

    Mutually

    Exclusive

    Function

    HDR

    . Supports 10-bit HDMI input sources only.

    . The loading capacity of each Ethernet port is reduced by half.

    . Must work with the receiving cards that support HDR.

    NA
    3D

    . When the input source is DVI, DVI1 loads the images for the left eye, and DVI2 loads the images for the right eye.

    . When the advanced screen configuration is enabled, 3D function is not supported.

    . The loading capacity of each Ethernet port is reduced by half.

    Low latency
    Low latency

    . Supports HDMI and DP input sources only.

    . Each Ethernet port must load cabinets vertically.

    3D, GENLOCK

    Appearance

    Front Panel

    Table 1-2 Buttons and connectors

    No.Button/ConnectorDescription
    1Power buttonPower on or off the device.
    2USBConnect to a USB drive.
    3LCD screenDisplay the device status, menus, submenus and messages.
    4KnobSelect menus, adjust parameters, and confirm operations.
    5BACKGo back to the previous menu or exit the current operation.

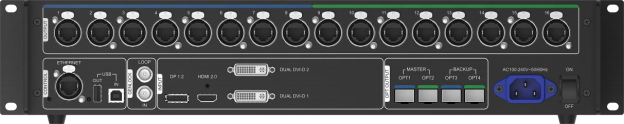

    Rear Panel

    Connector TypeConnector NameDescription
    InputDP 1.2

    1x DP 1.2

    . Supported maximum resolution: 4096×2160@60Hz, supported minimum resolution: 640×480@24Hz

    . Custom resolutions supported

    Maximum width: 7680 pixels (7680×1080@60Hz)

    Maximum height: 7680 pixels (1080×7680@60Hz)

    . HDCP 1.3 compliant

    . Supported standard resolutions:

    1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz 2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840×2160@(24/25/30/48/50/60)Hz

    . No support for interlaced input sources

    HDMI 2.0

    1x HDMI 2.0

    . Supported maximum resolution: 4096×2160@60Hz, supported minimum resolution: 800×600@30Hz

    . Custom resolutions supported

    Maximum width: 7680 pixels (7680×1080@60Hz)

    Maximum height: 7680 pixels (1080×7680@60Hz)

    . HDCP 1.4 and HDCP 2.2 compliant

    . Supported standard resolutions:

    1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz

    1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz 2048×1536@(24/25/30/48/50/60/72/75/85/100/120)Hz 2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 3840×2160@(24/25/30/48/50/60)Hz

    . No support for interlaced input sources

    DUAL DVI-D1

    DUAL DVI-D2

    2x DL-DVI

    . Each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz

    . Custom resolutions supported

    Maximum width: 3840 pixels (3840×1080@60Hz)

    Maximum height: 3840 pixels (800×3840@60Hz)

    . Supported standard resolutions:

    1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz 1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100)Hz

    1920×2160@(24/25/30/48/50/60)Hz 2560×1600@(24/25/30/48/50/60)Hz 3840×1080@(24/25/30/48/50/60)Hz 3840×2160@(24/25/30)Hz

    . No support for interlaced input sources

    Output1~16

    16x Neutrik (NE8FBH) Gigabit Ethernet ports

    . Maximum capacity of a single port:

    For 8-bit input sources: 650,000 pixels

    For 10-bit/12-bit input sources: 320,000 pixels

    . No support for audio output

    . Support for redundancy between Ethernet ports


    OPT1~OPT4

    4x 10G optical ports

    . OPT1 transmits the data of Ethernet ports 1 to 8.

    . OPT2 transmits the data of Ethernet ports 9 to 16.

    . OPT3 is a duplicate channel of OPT1.

    . OPT4 is a duplicate channel of OPT2.

    ControlETHERNETConnect to the control computer.

    USB IN-OUT

    . IN: 1x USB 2.0 (Type-B)

    Input port for cascading MCTRL4K units, or connecting to a PC for debugging

    . OUT: 1x USB 2.0 (Type-A)

    Output port for cascading MCTRL4K units

    Up to 10 units can be cascaded.

    GENLOCK IN-

    LOOP

    Sync signal connector

    Support for Bi-level, Tri-level, and Blackburst

    . IN: Genlock input connector

    . LOOP: Genlock loop output connector

    PowerAC 100 V~240 V-50/60 Hz

    Notes:

    When the input source is HDMI or DP, the 144 Hz forced resolution input from the front end device can be parsed. In this situation, the loading capacity is reduced by half.

    This product can only be placed horizontally. Do not mount vertically or upside-down.


    Dimensions

    Tolerance: ±0.3 Unit: mm


    Specifications

    Electrical

    Parameters

    Input voltageAC 100 V~240 V-50/60 Hz

    Rated power

    consumption

    30 W

    Operating

    Environment

    Temperature-20°C to +60°C
    Humidity10% RH to 90% RH, non-condensing

    Storage

    Environment

    Temperature-20°C to +70°C
    Humidity10% RH to 90% RH, non-condensing

    Physical

    Specifications

    Dimensions482.6 mm × 372.0 mm × 88.1 mm
    Weight4.6 kg

    Packing Information

    Carrying case530 mm × 420 mm × 193 mm

    Accessory box

    405 mm × 290 mm × 48 mm

    Accessories:

    . 1x power cord

    . 1x Ethernet cable

    . 1x USB cable

    . 1x HDMI cable

    . 1x DP cable

    Packing box550 mm × 440 mm × 210 mm

    Video Source Featur

    Input ConnectorFeatures
    Bit DepthSampling RateMaximum Input Resolution
    HDMI 2.08bit

    RGB 4:4:4

    YCbCr 4:4:4

    YCbCr 4:2:2

    YCbCr 4:2:0

    4096×2160@60Hz (Setting via NVIDIA graphics card)
    10 bit/12 bit

    RGB 4:4:4

    YCbCr 4:4:4

    3840×1080@60Hz

    YCbCr 4:2:2

    YCbCr 4:2:0

    4096×2160@60Hz (Setting via NVIDIA graphics card)
    DP 1.28 bit

    RGB 4:4:4

    YCbCr 4:4:4

    YCbCr 4:2:2

    4096×2160@60Hz (Setting via NVIDIA graphics card)
    10 bit/12 bitRGB 4:4:43840×1080@60Hz
    YCbCr 4:4:4
    YCbCr 4:2:24096×2160@60Hz (Setting via NVIDIA graphics card)
    Dual-link DVI8 bit

    RGB 4:4:4

    YCbCr 4:4:4

    YCbCr 4:2:2

    3840×1080@60Hz



    Notes and Cautions

    Notes for Battery

    . The battery is not intended to be replaced.

    . Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.

    . Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas.

    . A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.

    FCC Caution

    Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.


    This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.


    Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference whenthe equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

    interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.


    Others

    This is Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures.

    This product can only be placed horizontally. Do not mount vertically or upside-down.
