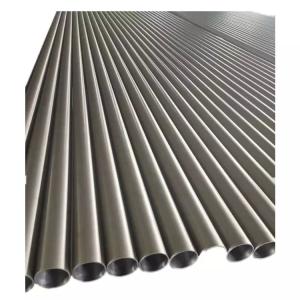

Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe

  • Product Details
  • Company Profile

Q235 Galvanised CS Seamless Pipe Hot Dippped Galvanized Pipe

Carbon Steel Thick Wall Q235 Galvanised Tube Hot Dippped Galvanized Pipe


Product specification


SA179/SA192 CHEMICAL AND MECHANICAL COMPONENT:

ASTM A179/(ASME SA179)
Seamless Cold Drawn Low Carbon Steel Heat Exchanger And Conderser Tubes
Application:
For tubular heat exchangers,condensers,and similar heat transfer apparatus.
Size(mm):O.D.:6.0~114.0mm W.T.:1~15mm L:max 18000mm

Grade and Chemical Composition (%)

Chemical CompositionCMnP≤S≤Si≤
0.06-0.180.27-0.630.0350.0350.25

Tolerance(SA-450/SA-450M):

OD In (mm)+-WT In(mm)+-
<1(25.4)0.100.10≤1.1/2(38.1)20%0
1~1.1/2(25.4~38.1)0.150.15>1.1/2(38.1)22%0
>1.1/2~<2(38.1~50.8)0.200.20
2~<2.1/2(50.8~63.5)0.250.25
2.1/2~<3(63.5~76.2)0.300.30
3~4(76.2~101.6)0.380.38
>4~7.1/2(101.6~190.5)0.380.64
>7.1/2~9(190.5~228.6)0.381.14


ASTM A192/A192M-02
Seamless Carbon Steel Bolier Tubes for High-Pressure
Application:
For seamless carbon steel bolier and superheater tubes for high-pressure service
Size(mm):O.D.:6.0~114.0 W.T.:1~15 L:max 18000

Grade and Chemical Composition (%)

Chemical CompositionCMnP≤S≤Si≤
0.06-0.180.27-0.630.0350.0350.25

Tolerance(SA-450/SA-450M):

OD In (mm)+-WT In(mm)+-
<1(25.4)0.100.10≤1.1/2(38.1)20%0
1~1.1/2(25.4~38.1)0.150.15>1.1/2(38.1)22%0
>1.1/2~<2(38.1~50.8)0.200.20
2~<2.1/2(50.8~63.5)0.250.25
2.1/2~<3(63.5~76.2)0.300.30
3~4(76.2~101.6)0.380.38
>4~7.1/2(101.6~190.5)0.380.64
>7.1/2~9(190.5~228.6)0.381.14

Packaging & Delivery


Packing Details:1. Export sea worthy package + water proof paper + wooden pallet
2. Safe loading and fixing Professional teams
Seaworthy wooden pallet or according to client's requirement
MOQ1 ton or free samples
Price termFOB China port & CIF Destination Port & CFR
Delivery Detail:within 7-10 working days after receiving the deposit or according to your order quantity.

Commitment clause

  • Reliable quality and competitive price
  • Accept any third party test
  • Professional sales team and reliable factory
  • Customized design is available
  • Free sample are available
  • Showing the splendor of your quality
  • Strong corrosion resistance and decorative effect
  • Durable and beautiful in good quality
