    GSD-4000 CNC Plasma Cutting Machine CNC Flame Cutting Machine 4000 - 10000mm/Min

    Ask Lasest Price
    Model Number : GSD-4000
    Brand Name : Friendship Machinery
    Certification : CE, ISO
    Price : Customized
    Delivery Time : 20 To 30 Working Days
    Payment Terms : T/T, L/C
    Supply Ability : 5-30 Sets Per Month
    • Product Details
    • Company Profile

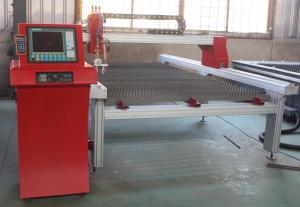

    GSD-4000 CNC Plasma Cutting Machine CNC Flame Cutting Machine 4000 - 10000mm/Min

    GSD-4000 CNC plasma & flame cutting machine


    1. Technical parameters

    No.ItemSpecification
    1Machine width4000mm (acceptable customized)
    2Effective cutting width3000mm (acceptable customized)
    3Rail length14000mm (acceptable customized)
    4Effective cutting length12000mm (acceptable customized)
    5Plasma cutting torchDepend on plasma power capacity
    6Plasma power1 set
    7Arc pressure height controller1 set
    8CNC flame cutting torch1 set (6-80mm cutting thickness)
    9Multiple strip cutting torch5 sets (6-80mm cutting thickness for single torch)
    10Control switchSome
    11Idle running speed4000-10000mm/min
    12Cutting surface roughnessRa≤50μm
    13Driving methodDouble sides driven (servo motor)

    2. Configuration list

    No.ItemBrand
    1Main frameworkFSM, China
    2Longitudinal guide railTongyong, China
    3Horizontal guide railKaiyade, China
    4Control systemBeijing Start or Shanghai Jiaoda, China
    5Cutting torch lift deviceFSM, China
    6Servo motorPanasonic, Japan
    7Planet gear reducersZhongda, China
    8Solenoid valveCEME, Italy
    9Plasma power sourceHuayuan, China or Hypertherm, USA
    10Plasma cutting torchHuayuan, China or Hypertherm, USA
    11CNC flame cutting torchXiangzheng or Laisen, China
    12Multiple strip cutting machineXiangzheng or Laisen, China
    13Arc pressure height controllerHYD or Ontime, China
    14PipelineSAM, Korea
    15High strength bearingHRB, China
    16Programming softwareStarCAM, China
