    Multi - Channel Output Optical Switch Can Be Customized

    Multi-Channel Output Optical Switch Can Be Customized


    Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It plays an important role in optical communication applications.

    The optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic switching and optical sensing multi-point dynamic monitoring system; The optical test system is used for optical fiber, optical device, network and field engineering cable testing; Optical device installation and adjustment. The 4 x 8 optical switch switches the four input routes to one of the eight output routes.


    specification

    MODELU84408
    Operating wavelength1260 ~ 1650nm
    Test wavelength1310nm / 1550 nm
    Insertion loss≤1.7 dB
    repeatability≤0.1 dB
    Return loss≥45dB
    crosstalk≥50dB
    Switching time≤5ms(Adjacent sequential switching)
    Fiber typeSingle
    Connector formFC/APC
    Monitoring portRS232,USB,Ethernet port
    Working power supplyAC 220V
    Operating temperature-5 ~ + 65℃
    Storage temperature-40 ~ + 85°C

    Front panel description



    (1) LCD display: input channel and output channel information display.

    (2) Key plate: The left key corresponds to the input channel (input channel key optional 1~4), the right key corresponds to the output channel (output channel key optional 1~8).

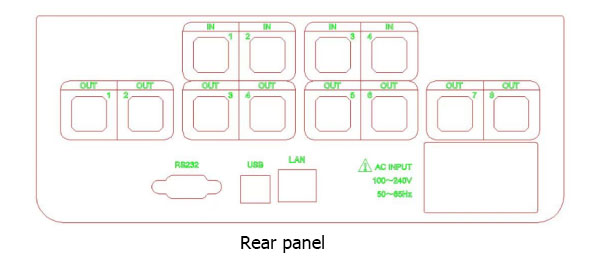

    Rear panel description


    (1) RS232 serial port, USB interface, RJ45 Ethernet interface: device monitoring data information communication interface.

    (2) AC INPUT power port: Connect to AC 220V power supply.

    (3) IN 1 to IN 4: optical switch input port.

    (4) OUT 1 to OUT 8: optical switch output outlet.
