0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor

    Buy cheap 0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor from wholesalers

    Buy cheap 0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor from wholesalers
    • Buy cheap 0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor from wholesalers
    • Buy cheap 0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor from wholesalers

    0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 28SHD4050-49GP
    Certification : CE,ROHS,ISO
    Price : $8.98-$12.98
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

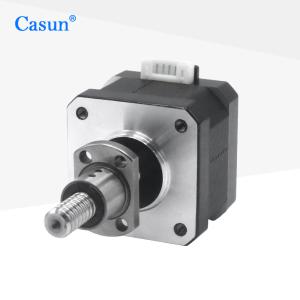

    0.5Amp Nema 11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor

    Nema11 Ball Screw Rod Stepper Motor 32mN.M Linear Stepper Motor


    A ball screw stepper motor is a type of stepper motor that incorporates a ball screw mechanism for linear motion. It combines the rotational motion of a stepper motor with the linear motion capabilities of a ball screw to achieve precise and controlled linear movements.

    NEMA 11 is a standard motor frame size defined by the National Electrical Manufacturers Association (NEMA). The NEMA 11 standard specifies the physical dimensions and mounting arrangements of the motor, allowing for interchangeability between different manufacturers.

    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    28mm

    Number of Phase


    2 Phase

    Rated Current


    0.5Amp

    Holding Torque


    32mN.m

    Resistance


    0ohm

    Inductance


    mH

    Rotor Inertia


    g-cm²

    Motor weight


    0.26kg

    Lead Screw


    49mm

    Connection


    Bipolar


    Operating Specifications


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min

    Shaft Radial Play:0.02Max. (450g-load)

    Shaft Axial Play:0.08Max. (450g-load)

    Max. radial force:28N (20mm from the flange)

    Max. axial force):10N


    Torque Curves


    Submodels


    ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
    42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
    42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
    42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
    42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
    42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A

    Body LengthDiameter of ScrewPitchLength of Screw
    20 mm

    34 mm

    40 mm

    48 mm

    60 mm

    5220-1000 mm
    8
    6.351.27
    3.175
    6.35
    6.53
    6.35
    81
    2
    4
    8
    12

    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
