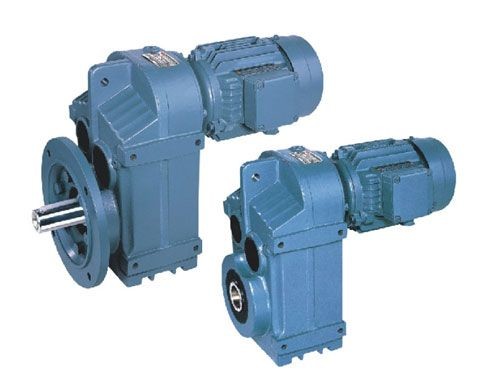

Product classification: Parallel axis helical gear device
Transmission ratio: 3.77-281.71
Protection level: IP44-58

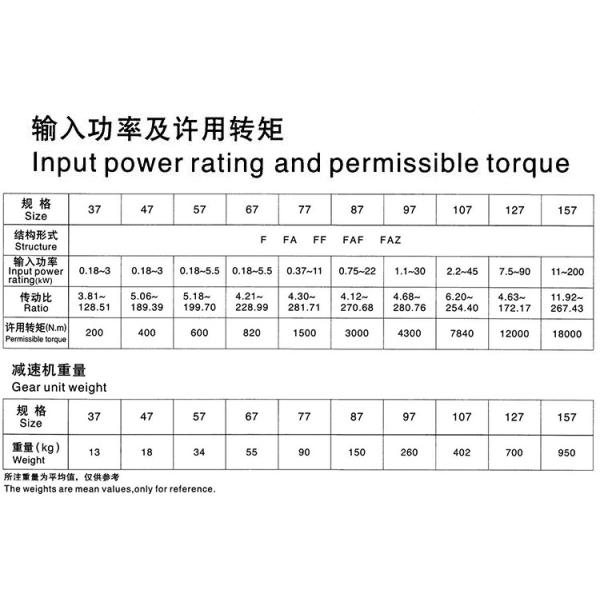

Allowable torque: 200-12000N. m
Input power: 0.12kW-90kW
Application fields: metallurgy, mining, lifting, transportation,
cement, construction, chemical industry, textile, printing and
dyeing, pharmaceutical and other fields
Characteristics and advantages
1. Parallel shaft output, compact structure, high torque
transmission, stable operation, low noise, and long service life

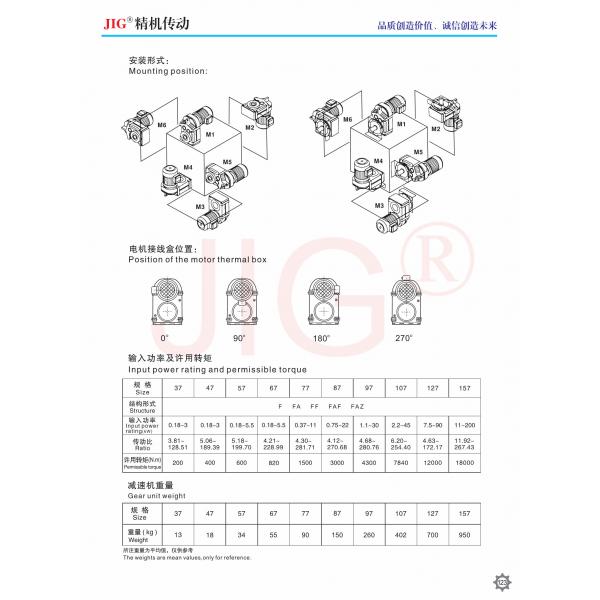

2. Users can choose any connection and multiple installation
locations according to their requirements
Specification parameters

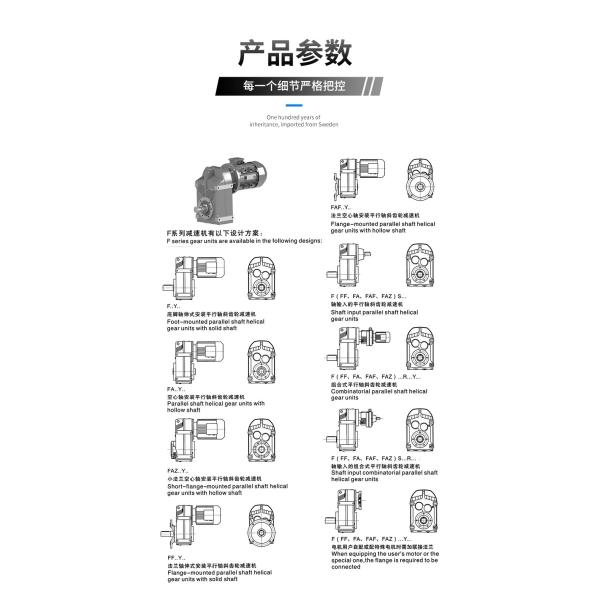

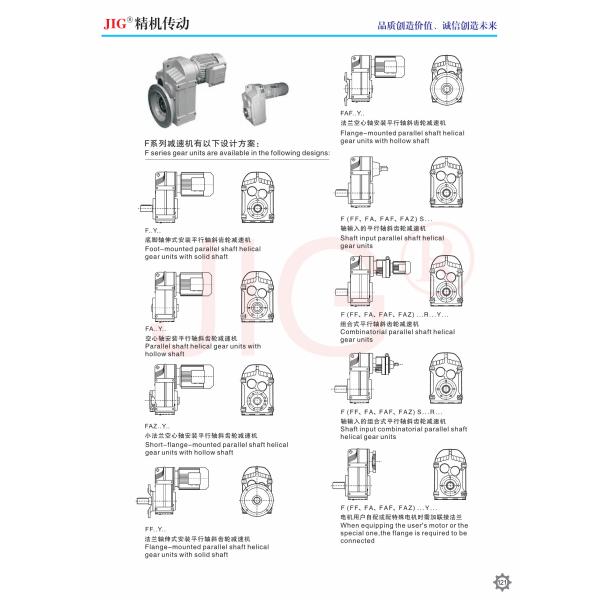

Installation form: base type, flange type, small flange type,
torsion arm type

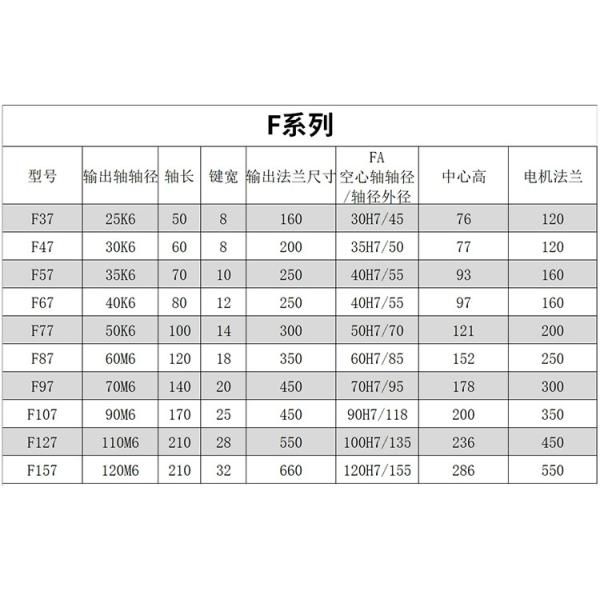

Output method: solid shaft, hollow shaft, locking disc, spline
hollow shaft
Input method: directly connected to the motor, shaft input, and
connecting flange input.
Technical parameters: speed ratio i=4.3-273, F/R combination can
reach 18509
Efficiency: Level 2 96%, Level 3 94%, F/R combination 85%
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: What kinds of gearbox can you produce for us?
A: Main products of our company: R, S, K, F series helical-tooth
reducer, RV series worm gear reducer,H Series Parallel Shaft
Helical Reduction Gear Box
Q3: Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q5: What information shall we give before placing a purchase order?
A: a) Type of the gearbox, ratio, input and output type, input
flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q6: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock.
Q7: What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before
delivery
