    Solid Gigabit IP40 Ethernet Slip Ring With Flange Electrical Power Swivel

    Ask Lasest Price
    Brand Name : CENO
    Model Number : ECN000-02P2-01EG
    Certification : CE,RoHS,UL,ISO9001
    Price : Negotiable
    Payment Terms : T/T,Paypal,Western Union, L/C
    Supply Ability : 10000pcs month
    Delivery Time : Off the shelf
    • Product Details
    • Company Profile

    Solid Gigabit IP40 Ethernet Slip Ring With Flange Electrical Power Swivel


    Solid Gigabit Ethernet Signal Slip Ring with Flange Electrical Power Swivel


    ECN042-04P5-02P3-02P2-04S-02EM is CENO new product which is designed for the radar antenna. CENO radar antenna slip ring features low temperature resistant materials that can transmit electrical power, RS422 and Ethernet signal stably at the temperature-40°C~+70°C. There is no electromagnetic interference between current and signal, comply with EMC electromagnetic compatibility requirements. Most of our slip ring’s parameters are optional. For more information about how CENO slip ring can fit your specific application, please contact us.


    Features

    • Designed with Low Temperature applications-40°C~+70°C
    • Combine RS422, 100M Ethernet signal and Electric power
    • Install easily & transmit stably

    Applications

    • Automatic machine
    • Radar antenna
    • Aircraft
    • Military Equipment
    • Communication system

    Optional

    • Circuit, Voltage, Current
    • Contact / Housing Materials
    • Protection grade
    • Operation temperature
    • Working speed



    Specification

    ECN000-02P2-01EG

    Specification
    Current & Circuits2 circuits*8A; 1circuit * Gigabit Ethernet
    Rating Voltage0~400 VAC/VDC
    Dielectric strength

    ≥800VAC@50Hz (P)

    ≥100VAC@50Hz (S)

    Isolation resistance

    ≥50MΩ@200VDC

    ≥10MΩ@100VDC

    Contact resistance≤35mΩ (50rpm)
    Working Temperature-20°C~+60°C
    Working humidity60%RH
    IP protection gradeIP40
    Operating speed0~50 rpm
    Contact materialGold on gold
    Housing materialAluminium alloy
    Lead wire length

    Rotor 250±5mm

    Stator 250±5mm

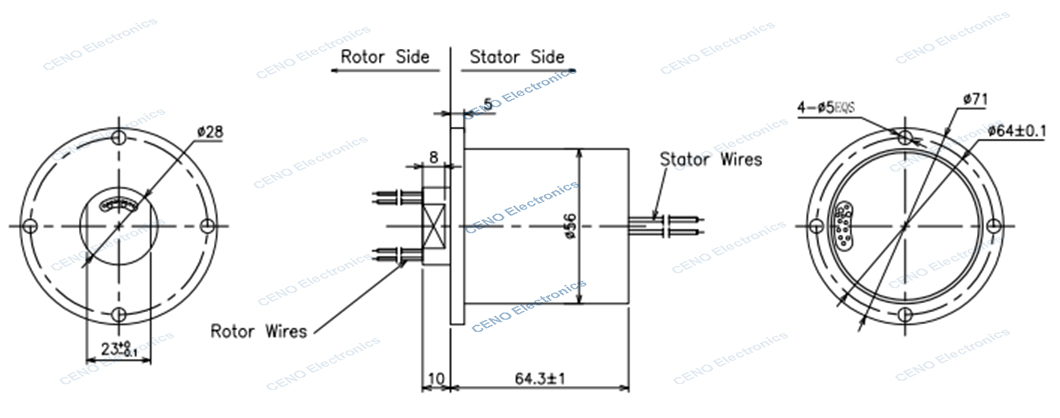

    Outline drawing



    More informations about Solid Ethernet Signal Slip Ring Flange install


    Introducing CENO's latest product - the Gigabit Ethernet Signal Slip ring. This innovative slip ring technology can integrate a variety of signals, data, pneumatic, FORJ, or RF for different applications, making it a versatile and efficient solution for a wide range of industries.
    Equipped with state-of-the-art technology, the Gigabit Ethernet Signal Slip ring ensures reliable transmission of high-speed Ethernet signals in demanding environments. This slip ring is capable of transmitting data at a rate of up to 1 Gigabit per second, making it ideal for applications that require high-bandwidth transmission such as automation and control systems, security and surveillance systems, and manufacturing facilities.
    Designed to meet the needs of the modern industrial world, the Gigabit Ethernet Signal Slip ring features a compact, lightweight design that allows for easy installation and maintenance. Additionally, it is made of high-quality materials that can withstand harsh environmental conditions, ensuring long-term reliability and durability.
    Whether you're working in aviation, defense, medical equipment, or any other industry that requires advanced signal transmission technology, the Gigabit Ethernet Signal Slip ring can deliver the performance you need. Invest in this cutting-edge technology today and experience improved efficiency, reduced downtime, and increased productivity in your operations.
