    2000BPH Monoblock Filler Capper Machine 200ml-1000ml Automatic Bleach Filling Machine

    Ask Lasest Price
    Brand Name : TOM
    Model Number : GXY-10-1-1
    Certification : ISO9001:2000, ISO14001, OHSAS18001, CE, CO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 40 working days for single machine
    • Product Details
    • Company Profile

    2000BPH Monoblock Filler Capper Machine 200ml-1000ml Automatic Bleach Filling Machine

    GXY-10-1-1 Automatic Bleach Filling Inner Plugging And Outer Capping Machine


    Major characteristics:

    Filling Part: Filling adopts double filling method, a single filling head filling half of the measurement to ensure that the inner plug pressing and capping processes can quickly and steadily running.

    Inner plug pressing part: this part pressing the inner plug with cylinder, equipped with detection of photoelectric can do no bottle without pressing, pressing speed stability, high efficiency.


    Technical Parameter:

    No.ItemsPerformance
    01Machine dimension(L×W×H)2200mm×2200mm×2600mm
    02Machine weightabout1000kg
    03Bottle mouth:Diameter:Φ20-50mm, height: 15-50mm
    04Suitable bottleheight:100mm~260mm; Diameter:φ 40mm~φ 100mm
    05Power supply220V 50HZ
    06Machine power3.5kw
    07Filling volume200ml-1000ml
    08Filling accuracy≤±0.6%(Product should be constant, if the temperature various in large range, may influence the filling accuracy)
    09Bottle hurt rate≤0.3%
    10Capacityabout 1200bottles/hour (test with 500ml)
    11Air source0.5-0.65MPa clean and stable compressed air
    12Air consumption300L/Min
    13Filling nozzle No.10
    14Pressing head1
    15Capping head1
    16Conveyor height950mm±30mm
    17Height from HMI to groundabout 1400mm

    Machine Picture:


    Machine's detailed picture:

    Inner plug pressing part: this part pressing the inner plug with cylinder, equipped with detection of photoelectric can do no bottle without pressing, pressing speed stability, high efficiency.


    Capping part: use rocker-type screw capping principle, adopts single-head grasping screw cap, also equipped with the detection of photoelectric can be no bottle does not capping.

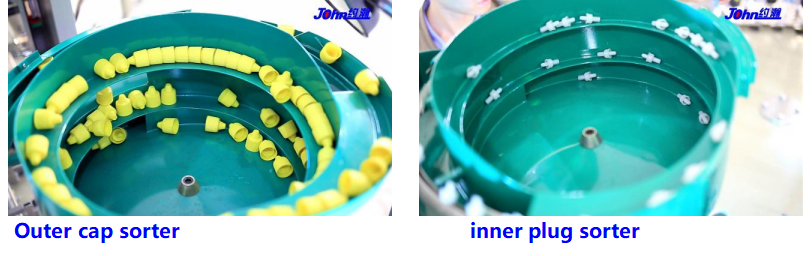

    Cap sorter:it adopts an oscillating type sorting.


    Packaging & Shipping

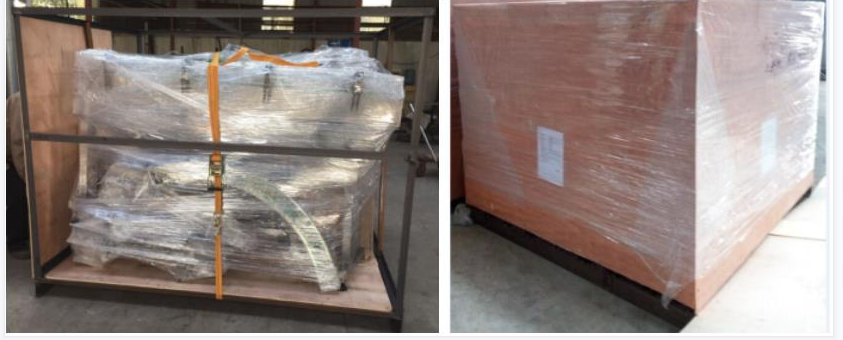

    1. the machine is packked by non-fumigation wooden case, and for keeping the wooden case more secure, we inserted the iron support inside wooden case, makes it suitable for long-term sea delivery.


    Ware hourse for finished packed machines:


    Loading machines into container:

    We have a professional logistics team responsible for shipping


    Company Overview--Jiangsu Tom Group

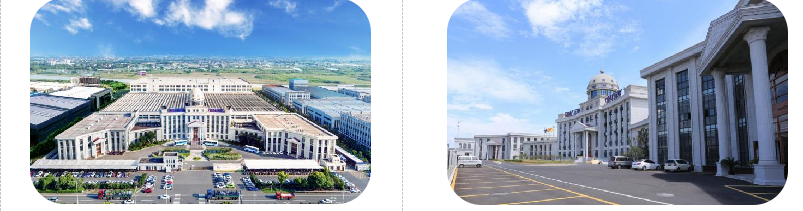

    Company real scene Company covers an area of 150 mu Office building

    New factory processing center Old factory processing center

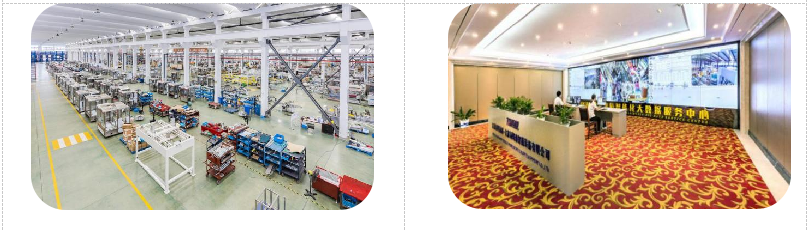

    Assembly workshop After-sales service big data service center
