19mm dia Submersible Level Transmitter 4-20mA rs485 level sensor
Description of 19mm dia Submersible Level Transmitter 4-20mA rs485
level sensor
19mm dia Submersible Level Transmitter 4-20mA rs485 level sensor is
based on the principle that the static pressure of the measured
liquid is proportional to the height of the liquid, and uses the
piezoresistive effect of diffused silicon or ceramic sensing
elements to convert the static pressure into an electrical signal.
After temperature compensation and linear correction, it is
converted into 4-20mADC standard current signal output. The sensor
part of the submerged static pressure liquid level transmitter can
be directly put into the liquid, and the transmitter part can be
fixed by flange or bracket, which is very convenient to install and
use.
Dimension of 19mm dia Submersible Level Transmitter 4-20mA rs485
level sensor
Specification of 19mm dia Submersible Level Transmitter 4-20mA
rs485 level sensor
| Pressure Span | 0...1…500mH2O |
| Output Signal | 4...20mA |
| Supply Input | 10…36V DC |
| Accuracy | +/-0.5%FS |
| Non-Linearity | +/-0.250% FS |
| Repeatability | +/-0.10% FS |
| Thermal Error | +/-0.2% FS/oC |
| Zero Drift | +/-0.25% FS |
| Long Term Stability | +/-0.5% FS/Year |
| Over Pressure Safety | 200% |
| Operating Temperature | 0oC to 50oC |
| Response Time | <1ms (10-90%FS) |
| Diaphragm | titanium alloy Stainless Steel |
| Case Material | 316L Stainless Steel |
| Compatibility | Liquid compatible with titanium alloy |
| Protection | IP68 |
Feature of 19mm dia Submersible Level Transmitter 4-20mA rs485
level sensor
·High precision,corrosive and other media pressure measurement;
·Separate construction; full sealed stainless steel construction
for submersible sensor, easy for installation,wiring and
calibration;
·Lightning Protection,Water-proof and oil-proof cable.
Application of 19mm dia Submersible Level Transmitter 4-20mA rs485
level sensor
★ Industrial field level measurement and control
★ Urban water supply and sewage treatment
★ Hydrological monitoring and control
★ Big river dam and water conservancy construction
★ Navigation and Ship System

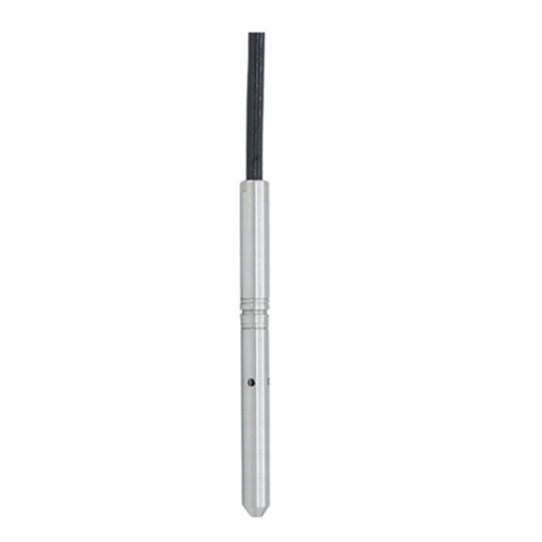

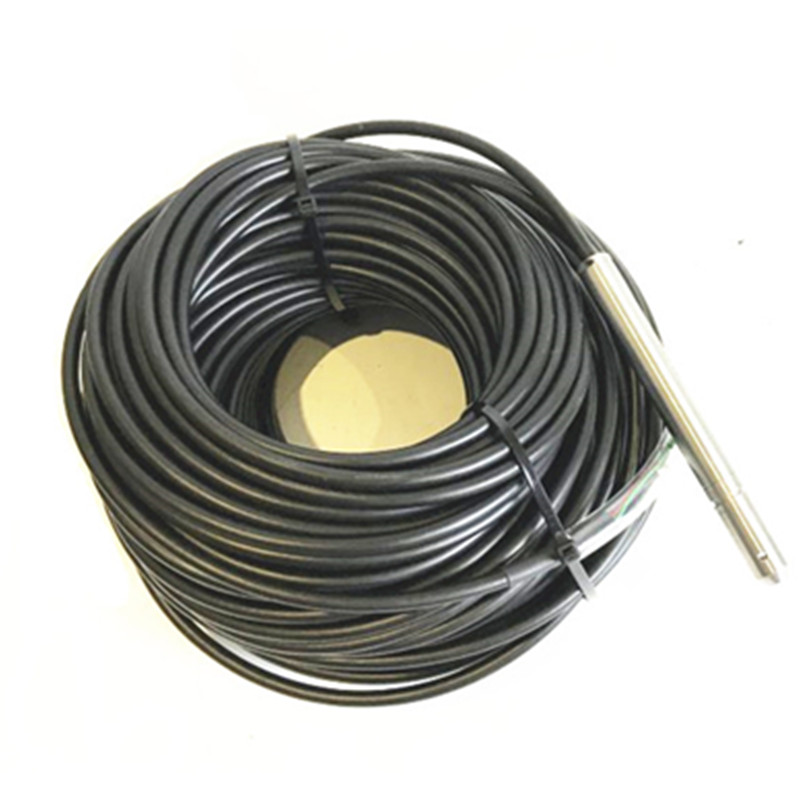

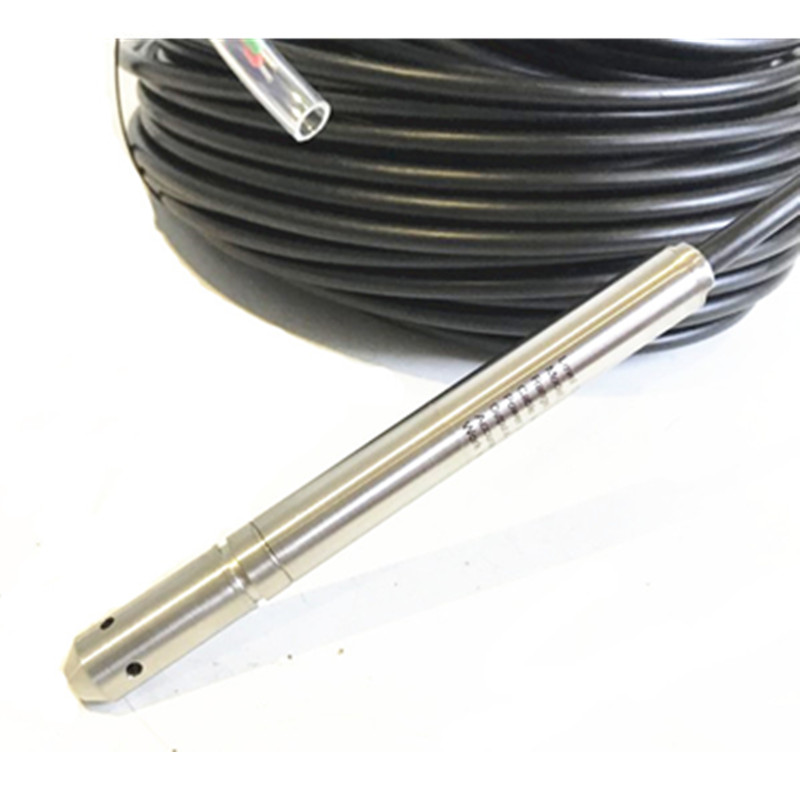

Detaild picture of 19mm dia Submersible Level Transmitter 4-20mA
rs485 level sensor
