| System Specifications |
| Technical parameters | Specification |

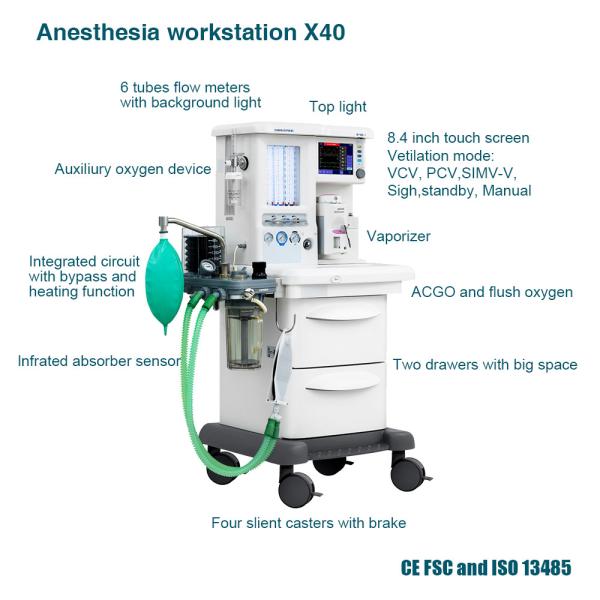

| Machine |
| Size | 1410 × 950 × 650 (H × W × D) |
| Weight | 110kg |
| Top cover | 30kg bearing weight |
| Size | 580 x 400mm |
| Display |
| Type | Color TFT (touch screen) |
| Size | 8.4’ inches |
| Resolution | 640 × 480 pixels |
| Work surface light | LED |
| LED indication |
| Alarm Indication | |
| AC power | |
| Battery | |
| Audio instruction |
| Speaker | Alarm sounds |
| Control |
| Button Press key | |
| Interface |
RS232, VGA, USB Three auxiliary output power interface | |
| Moving means |
| Castor | 4 antistatic castors, diameter Φ125mm (2 brake Infront) |
| Toolbox |
| Drawer | 200 × 392 × 398 mm(H×W×D)x2 |
| Respiratory System |
| Air bellow | 1500mL |
| Absorption chamber | 1500mL |
| Connection | Suction / ACGO ports: standard OD 22mm, ID 15mm, tapered connector; Exhalation ports: standard OD 22mm, ID 15mm, tapered connector. Manual breathing port: diameterΦ22cm |
| System leaks | < 40ml/min |
| System compliance | ≤ 4 mL / cmH2O |
| Resistance | Inspiratory < 0.6 kPa; Expiratory < 0.6 kPa |
| Vaporizer |
| Description | Parameter |
| Technical Specification |
| Flowrate range | 0.2-15L/min |
| Connector type | Selectatec compatible, plug in, cage mount |
| Dosing methods | Pour-fil, Easy-fil, Quick-fil (Sevoflurane) |
| Working environment |
| Working temperature | +15℃ ~ +35℃ |
| Relative humidity | 5%~95%(non-condensing) |
| Atmospheric pressure | 70kPa ~ 106kPa |
| Storage temperature | -20℃ ~ +55℃ |
| Concentration: | 0~5.0%: Isoflurane, Halothane 0 ~ 8.0%: Sevoflurane |
| Main technical parameters |
| Description | Parameter |
| Display | 8” TFT, Touch screen, Top light |
| Ventilation Model | VCV, PCV, Manual, Standby SIMV-V (Optional:SIMV-P,SPONT/PSV) |
| Tidal volume | 20－1500ml(optional 10-1600ml), Electronic PEEP, Lung mechanics
parameters. |
| Wave form | Paw-T,Flow-T,V-T,CO2-T |
| Loop | P-V,V-F |
Pressure Monitoring
| Central: O2, N2O, Air Cylinder: O2, N2O |
Monitoring Parameter
| Tidal volume, MV, Frequency, I:E, Airway Pressure, Pmin,
Compliance, Resistance |
| Application | Adult and Infant |
| Vaporizer | Selected bar for two position |
| Gas supply | O2, N2O, Air |
6 tubes Flowmeter
| O2: 0～10LPM; N2O: 0～12LPM; Air: 0～15LPM; |
| O2% | O2 sensor |
| Auxiliary O2 | Auxiliary O2 Flow meter(O2: 0～15LPM) (Optional) |
| ACGO | Yes |
| Battery | NI-MH battery build in. >90mins |
| Yoke | 2 ( O2, N2O) (Optional) |
| Gas Cylinder | O2, N2O (Optional) |
| Cycle Absorber | Intergrade, bypass Design, heating system. |
| Setting Parameter |
| Description | Parameter |
| Tidal volume | 20～1500 mL(optional 10-1600ml) |
| Frequency | 1～100 bpm |
| Tinsp | 0.1～10.0s |
| I:E | 4:1～1:10 |
| Pause | 0～60% |
| PEEP | OFF, 3～30 cmH2O |
| Psupp | 0～70 cmH2O |
| Pressure Control | 5～70 cmH2O |
| Flow Trigger | 0.5～20 L/min |
| Pressure Trigger | 0～20 cmH2O |
| Ramp | 0～2s |
| Monitoring Parameter |
| Description | Parameter |
| Tidal volume Inspiration | 0～2500 mL |
| Tidal volume Expiration | 0～2500 mL |
| MV | 0～60 L/min |
| MVspont | 0～60 L/min |
| Frequency | 0～100 bpm |
| Ratespont | 0～100 bpm |
| I:E | 9:1～1:99 |
| Ppeak | 0～100 cmH2O |
| Pmean | 0～100 cmH2O |
| PEEP | 0～100 cmH2O |
| Pplat | 0～100 cmH2O |
| O2% | 15～100% |
| Compliance | 0～300 mL/cmH2O |
| Resistance | 0～600 cmH2O/(L/s) |
| EtCO2 (Optional) | 0～13.3 % |
| FiCO2 (Optional) | 0～13.3 % |
| Alarm Parameter |
| Description | Parameter |
| Tidal volume |
| Upper limit | 30～2000 mL |
| Lower limit | OFF, 20～1500 mL |
| MV |
| Upper limit | 1～99 L |
| Lower limit | 0～98 L |
| O2% (Optional) |
| Upper limit | 22～100%,OFF |
| Lower limit | 20～99% |
| Airway Pressure |
| Upper limit | 10～99 cmH2O |
| Lower limit | 1～98 cmH2O |
| Frequency |
| Upper limit | 1～100 bpm |
| Lower limit | 0～99 bpm |
| EtCO2 (Optional) |
| Upper limit | 0.1～13.3 % ; |
| Lower limit | 0～13.2 %; |
| FiCO2 (Optional) |
| Upper limit | 0.1～13.3 % ; |
| Continue Pressure high | Airway pressure beyond(PEEP+15)cm H2O, continuedly(15+1)s |
| Apena | 10～60 s, Increase: 1s |
| O2 supply down | < 0.28 MPa |
| Mains failure | Automatic switch battery |
| Battery low | < 10 min |
| Battery discharged | < 5 min |
| Mute | ≤120 s |
| Pressure low | < -10cmH2O |
| Power Specifications |
| Description | Parameter |
| External AC power |
| Input Voltage | 100 - 240V |
| Input Frequency | 50/60Hz |
| Input Power | <150 VA |
| Internal Battery |
| Number of batteries | A battery pack |
| Battery Type | Nimh batteries |
| Rated battery voltage | 12VDC |
| Battery capacity | 4200mAh |
| Shutdown Delay | Less than 10min (using a new fully charged battery, low battery
alert since the first post) |
| Shortest supply time | 90min |
| Charging time | 4h |
| Work environment |
| Temperature | 10 ~ 40 ºC |
| Humidity | 5 ~ 95%, non-condensing |
| Environmental pressures | 70 ~ 106 kPa |
| Storage environment |
| Temperature | -20 ~ 55 ºC |
| Humidity | 5~ 95%, non-condensing |
| Environmental pressures | 50 ~ 106 kPa |
| |
