    0.6 A Nema 11 Micro Stepper Motor For Robot ROHS Certifications

    Ask Lasest Price
    Brand Name : CASUN
    Model Number : 20SHD0301-5
    Certification : CE,ROHS,ISO
    Price : US $7.94 - 14.00/ Piece
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 100000pcs / month
    Delivery Time : 7-15 workdays
    • Product Details
    • Company Profile

    0.6 A Nema 11 Micro Stepper Motor For Robot ROHS Certifications

    0.6 A Nema 11 Micrp Stepper Motor Hot Sale Stepping Motor For Robot With ROHS Certifications

    Micro 20*20*27.5mm 0.6A Bipolar Nema 8 Stepper Motor 2 Phase 5.4V Stepper Motor for Robot.


    2 Phase -5.4V Nema 8 4-pin 1.8 degree Stepping Motor 20x20x27.5mm 22mN.m 0.6A for Robot

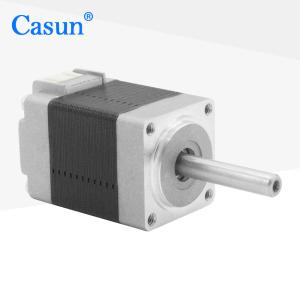

    Appearance

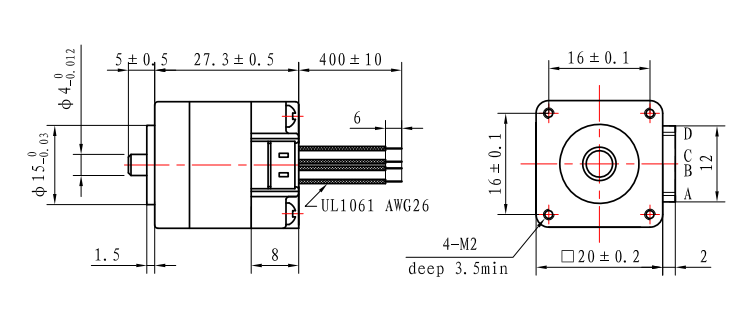

    Dimensions


    Motor Specifications

    Step Angel

    1.8 °

    Fram Size

    20 mm

    Number of Phase

    2 Phase

    Rated Current

    0.6 A

    Holding Torque

    22 mN.m

    Resistance

    7.1 ohm

    Inductance

    2 mH

    Rotor Inertia

    2 g-cm²

    Motor weight

    0.06 kg

    Number of leads

    4

    Connection

    Bipolar


    Torque Curves



    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    FAQ

    1. who are we?

    We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.


    2. how can we guarantee quality?

    Always a pre-production sample before mass production;

    Always final Inspection before shipment;


    3.what can you buy from us?

    Stepper Motor,BLDC Motor


    4. why should you buy from us not from other suppliers?

    We are specialized in producing and selling stepper motors for more than 11 years.


    5. what services can we provide?

    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

    Accepted Payment Currency:USD,CNY;

    Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

    Language Spoken:English,Chinese,Japanese

    Options:
    Encoder | Brake | Gearbox | Connector
