Low Frequency Inverter Solar System Mppt Charger Photovoltaic Inverter 2kw

Name: Low Frequency Inverter Solar System Mppt Charger Photovoltaic Inverter 2kw
Brand: MITSCN
Price: 1 USD

Ask Lasest Price
Brand Name :	MITSCN
Model Number :	PV30-1K VPM,PV30-2K VPM
Certification :	CE,IEC,EN
Price :	negotiable
Payment Terms :	T/T, L/C, D/P
Supply Ability :	1000pcs per day
Delivery Time :	negotiable

Add to Cart

Product Details
Company Profile

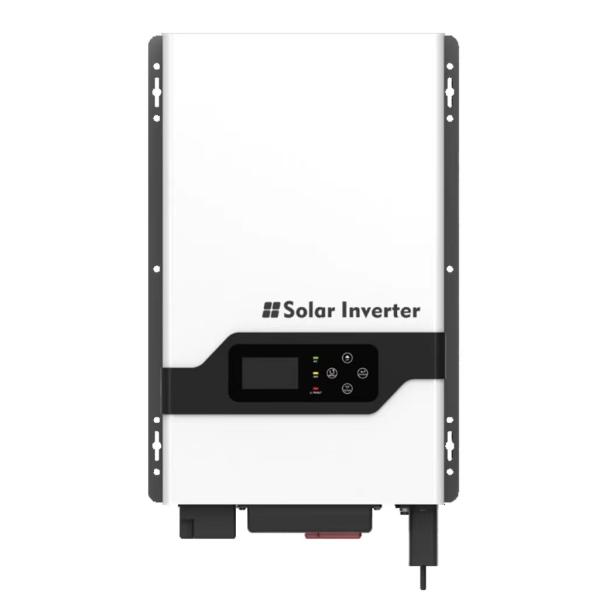

Low Frequency Inverter Solar System Mppt Charger Photovoltaic Inverter 2kw

• Pure sine wave output
• 3 Steps charging
• Overload and short-circuit protection
• Set charging voltage/charging current
• Battery low voltage shutdown point can be set to 10 / 10.5 / 11 / 11.5V
• Power-save mode
• Set utility priority/battery priority
• Set utility input wide/narrow range
• Inverter voltage can be set to 110V/115V/120V or 220V/230V/240V
• Inverter frequency can be set to 50Hz/60Hz
• Set utility charging on/off switch
• Inbuilt with 60A MPPT Solar Charge Controller
• Acid or Lithium Select
• WiFi port (optional)

PV3000 VPM series is very economical pure sine wave solar inverter, inbuilt with 60A MPPT Charger and AC Charger from 20A to 60A; Solar/AC priority
is configurable, when setting solar priority, solar will charge batteries as first priority, and AC can also charge batteries when solar charger current is too
lower, in this way system charge is optimazed best. It enables inverter to operate with all kinds of home appliances.

MODEL		PV30-1K VPM		PV30-2K VPM
Default Battery System Voltage		12VDC	24VDC	12VDC	24VDC
Inverter Output	Rated Power	1000VA		2000VA
	Surge Power	3000VA		6000VA
	Capable Of Starting Electric Motor	1HP		1HP
	Waveform	Pure sine wave /same as input(bypass mode)
	Nominal Output Voltage RMS	110V /115V / 120V / 220V / 230V / 240VAC (±10% RMS)
	Output Frequency	50Hz / 60Hz ±0.3
	Inverter Efficency(Peak)	>88%
	Line Mode Efficiency	>95%
	Power factor	0.7
	Typical Transfer Time	10ms(max)
AC Input	Voltage	230VAC±5%
	Selectable Voltage Range	96~132VAC 155~280VAC(For personal computers)
	Frequency Range	50Hz / 60Hz (Auto sensing)
BATTERY	Minimum Start Voltage	(10V / 10.5V / 11V / 11.5V )+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
	Low Battery Alarm	(10V / 10.5V / 11V / 11.5V )+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
	Low Battery Cut Of	(10V / 10.5V / 11V / 11.5V )+0.5V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
	High Voltage Alarm	(13.8-14.5V)+1V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
	High Battery Voltage Recover	(13.8-14.5V)+1V for 12VDC mode (2 for 24VDC, 4 for 48VDC)
	Idie Consumption-Search Mode	Load ≤50±20W(120V)/100±20W(220V)
CHARGER	Output Voltage	Depends on battery type
	Charge AC Input Breaker Rating (120V/230V)	1K/12A		2K/30A
		1-1.5K/10A		2-3K/30A
	Overcharge Protection S.D.	15.7VDC for 12VDC mode (*2 for 24VDC mode)
	Maximum Charge Current	30A	20A	60A	30A
BYPASS & PROTECTION	Input Voltage Waveform	Sine wave (grid or generator)
	Nominal Input Frequency	50Hz or 60Hz
	Overload Protection (SMPS Load)	Circuit breaker
	Output Short Circuit Protection	Circuit breaker
	AC Input Breaker	1-3K/30A
SOLAR CHARGER	Maximum PV Array Open Circuit Voltage	12V:75VDC; 24V:100VDC
	Maximum PV Charge Current	60A
	DC Voltage	12V / 24V auto work
	Maximum PV Array Power	1000W	2000W	1000W	2000W
	MPPT Range @ Operating Voltage	12V: 16~75VDC; 24V: 32-100VDC
	Standby Power Consumption	<2W
MECHANICAL SPECIFICATIONS	Machine Dimensions(WHD)(mm)	302.8460199.8mm 322486134 309505147 309505147
	Package Dimensions(WHD)(mm)	Shipping Dimensions (WHD) 400319615mm 426560260.5 375655269 375655269
	Net Weight(kg)	16.5		21.1	20
	Gross Weight(kg)	19.3		24.1	22.8
OTHER	Standard Warranty	1year
	Audible Noise	60dB MAX
	Display	LED+LCD
	Operating Temperature	0°C~40°C
	Storage Temperature	-15°C -60°C
