Jointech Smart E lock JT701 Mobile Positioning Vehicle Management
System GPS navigation Padlock
The JT701 GPS intelligent electronic lock is a newly developed
product that is designed for the container GPS tracking and van
tracking market. It supports GSM networks and comes with two
working modes: tracking mode, which continuously uploads GPS
positions, and standby mode, which captures GPS locations at four
different time points.

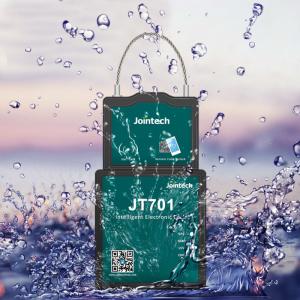

The JT701 is IP67 waterproof and dustproof, making it suitable for
outdoor use in various weather conditions.
Container 4G GPS tracker JT701 GPS security padlock IP67 waterproof
GPS tracking device for container/trailer/trucks
Key Features of the System:
A standalone unit operated by rechargeable battery.
Fast and easy installation by attaching the unit to the container door frame with an
electronic lock.
Damage Prevention: There will be alert if someone cut the lock rope or open the back
case cover.
A Flexible System that can be fully configured to meet customer requirements, with
regards to information, times and signification events in real time
-Examples of real time alerts includes: door open/closed,
temperature high/low, battery charge level, location status and any
combination of these.
Geo-fencing function raises notifications when a container has entered o rleft a
location.
The built-in accelerometer keeps you informed that changes in movement.
When the unit is out of coverage, all location and sensor
information is saved to the memory and later transmitted once the
unit is back in cellular coverage.
A Web Based System requiring a simple and easy installation process, we can provide
multiple monitoring platform, which include web based tracking
software and APP (IOS/Android)
Cooperation Tracking Platform: Wialon GPS tracking system.
Specifications:
Type | Description |
Basic Function | Transmission Mode | TCP |
Data automatic upload | Time interval |
Locating mode | GPS |
Vibration detecting | Built in 3G sensor |
Lock status monitoring mode | Real time monitoring |
Unlock | RFID/Remote password |
Wake up mode | Call/SMS/Swiping RFID card/ Vibration/ E-string brake |
Alarm | E-String brake alarm |
Swiping card alarm |
Unlock alarm |
Wrong password alarm |
Geofence alarm |

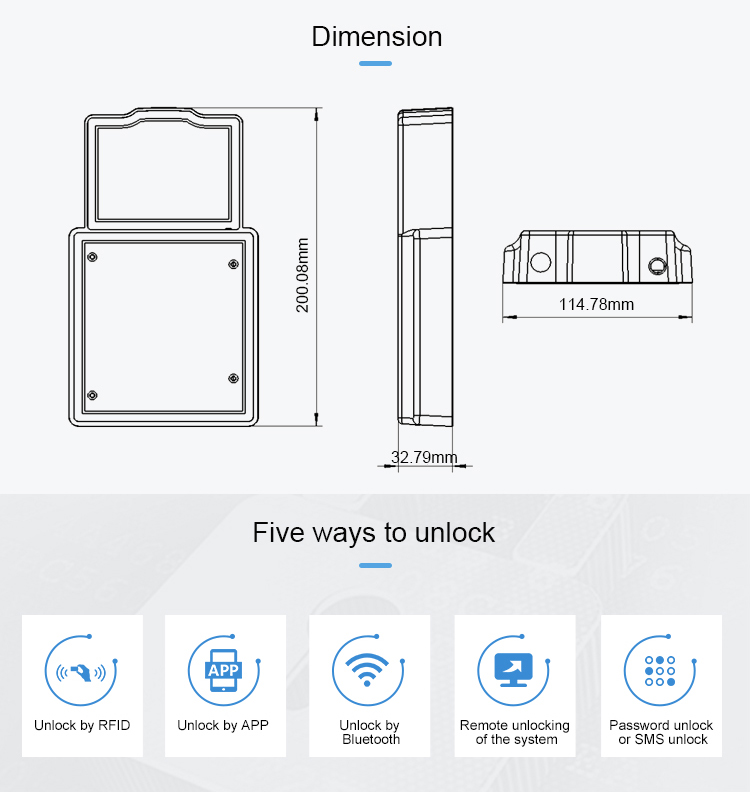

Parameters | Dimension(L×W×H) | 195mmx114mmx37mm |
Weight |
700g(includes standard accessories) |
Material | Engineering plastic |
Built-in battery | 15000mAh rechargeable Li-ion |
Working temperature | -20℃ — +60℃ |
Storage temperature | -40℃ — +80℃ |
Relative humidity | 5% — 99% |
Protection grade | IP67 |
Average standby current | Less than 0.1 mA |
Average working current | Less than 90 mA |
Backup battery | 8.4V 400 mAh NI-MH battery |
GPS antenna | embedded |
GSM frequency | Quad Band: 900/1800/1900Mhz |
Structure
Five ways to unlock
Unlock by RFID/ APP/ Bluetooth/remote unlocking of the system/
password unlock or SMS unlock
Monitoring System: Including web based tracking software and APP
(IOS/Android)
