Screen printing mesh frame

We manufacture quality aluminum screen frames and aluminum pre-stretched frames ranging from 12 - 380 mesh count.

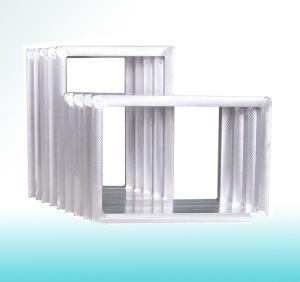

SX-B series aluminum frames can fulfill customers' needs and are welded for great mesh adhesion. All corners are completely sealed to prevent ink from leaking. One side is grinded or sandblasted to make fabric adhesion fast and easy. Larger aluminum extrusions help eliminate frame distortion. Surfaces are anodized for maximum strength and durability. Aluminum is made to 6001 alloy for high chemical resistance, light weight, maximum strength and hardness, strong endurance and easy cleaning.

SX-B series aluminum profiles are designed for international customers basically. Especially for textile screen printing industry of America and West Europe markets. It's the best choice for use on automatic textile screen printing machine or manual carousel.

Aluminum frame quality standard:
Outside dimension: +/-0.10mm(+/-0.04inch).
Squareness: +/-2 degree.
Bow: -0.10mm(-0.04inch).
Welding: Firmly, no water infiltration.
Finish: Grinded on mesh side.
Package: Plastic tape or carton or wooden.

Normal aluminum profile:
1.0*1.5*0.063 inch
1.375*1.375*0.063 inch
1.375*1.375*0.0708 inch
1.5*1.5*0.063 inch
1.5*1.5*0.0708 inch
1.5*1.5*0.078 inch

Normal size:
18*20 inch
20*24 inch
23*31 inch
25*36 inch
30*40 inch
Normal mesh: 80 - 355/inch

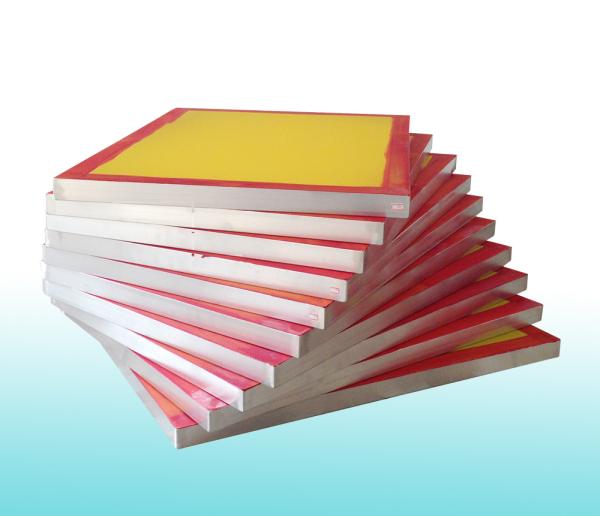

Stretched aluminum screens features:
1. All screens are stretched with tension-stabilized low elongation mesh for the best quality results.
2. A broad range of mesh counts are available for a variety of print applications
3. These recyclable aluminum frames are light weight, durable
4. Machine stretched and glued.
5. High Stability could be exert effective with any different mesh.
6. Fast mesh area adjustment won't be limited by mesh-holders size.
7. Tension control will be balanced no matter the spreading size of mesh-area or the strength of tension.
8. The rate of mesh damage is lower than other kinds.

9.TETKOMAT meter measures the tension in 5 points
10.KIWO and KOKI adhesive can be recommended on specific process
11.Renowned Sefar, NBC, Satti and local mesh available for customer request
12.Screens are stretched by our own made giant/high precision electric stretching unit
13. Special specification products can be made to your order.

Aluminum profile: 6061 T5

Our customers: Fuyao Group,Foxcoon,Midea,Haier and other Top 500 companies.
