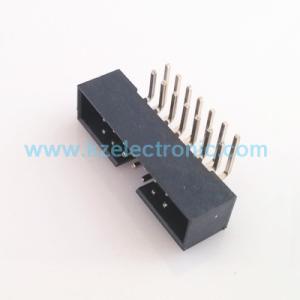

2.54mm box header IDC connector

2.54mm box header IDC connector

Product features:

contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process

Insulating material:

nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT

Scope of application:

to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB

Current Rating:3.0AMP
Current Resistance:20mΩ Max
Insulation Resistance:1000mΩ Min
Withstand Voltage:1000V AC/Minute
Operation Temperature:-40ºC to +105ºC
Contact Material:Brass
Contact Plating:Au Or Sn over Ni
Insulator Material:Polyester (UL94V-O )
Standard:PBT+30%GF

Founded in 2011, Shenzhen Kezo Electronic Co., Ltd mainly focus on manufacturing and supply of connectors in China.

Being one of the pioneering manufacturers of connectors in China, we have more than 3,000 square-meter facility area and about 100 experienced workers.

We mainly provide

• Pin header
• Female header
• Box header
• Ejector header
• Other

Our Principles: Integrity is the base, Customers come first.

we pay more attention to our customer's satisfaction, which is the base to make our products popular worldwide.
