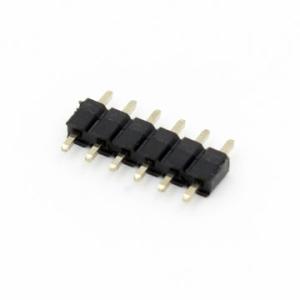

Pitch 2.54mm single row pin header, male connnector

Pitch 2.54mm single row pin header, male connnector

Product details
Pitch: 2.54mm
Gender: Socket
Number of contacts: 02-40 pin
Mount type: through hole
Number of Rows: Single row
Elevated: No
Orientation: Straight
Square Pin Diameter: 0.60mm
Insulator colour: Black
Current Rating: 3 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40℃ to +105℃
Contact Material: Copper Alloy
Soldering Process:
PA6T(Standard)
IR Reflow: 260℃ for 10 seconds
Wave: 230℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds
PBT(OPTION)
Manual Solder: 350℃ for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230℃ for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260℃ for 10 seconds
Wave: 250℃ for 5-10 seconds
Manual Solder: 350℃ for 3-5 seconds

Drawing
