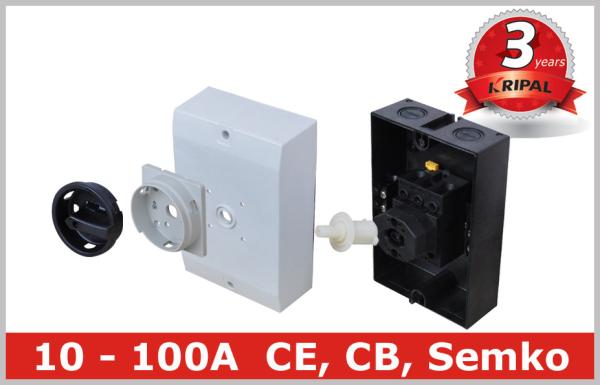

European Outdoor Rotary Disconnect Switch , Lockable 3 Position
Rotary Switch
KRIPAL HAS THE DESIGN PATENT FOR THIS SERIES SWITCHES.
Switchgear housed in moulded enclosures provides the basis for most
industrial applications, and the added benefits offered by the
'UKP/UKPN' range provide the user with a wealth of opportunities
when selecting the correct item for a specific application.
Enclosure IP65 sealing. Good sealing is a feature of the 'UKP/UKPN'
range as is the ability to add a selection of auxiliary blocks
providing additional contacts and a choice of Neutral assemblies.
Description:
1. These rotary isolator switches are used to switch power to
commercial / light industrial applications.
2. The red switch can be used as an emergency stop, and can be
locked in the “OFF” position using
the yellow surrounding ring and padlock.
3. Easy cable access via M20/25 knockouts
4. The screws are captive retained and would not drop off when the
lid is turned over.
5. Earth terminal is included
6. Enclosure: brand-new PC, White
7. Standard: manufactured and tested as IEC 60947-3
Specifications:
No. | Tech Parameters | requirement |
1. | Rated voltage | below 440V |
2. | rated current | 10A,16A,20A,25A,32A,40A,50A,63A,80A,100A |
3. | frequency | AC50HZ |
4. | No. of poles | 2P,3P,4P,5P |
5. | No. of layers | make as required with circuit diagram |
6. | panel size | 64*64mm |
7. | color of handle | Black/red |
8. | Working temperature | -25°C~+40°C |
9. | Working height | ≤2,000m |
10. | Relative humidity | ≤50% with highest temperature +40°C,but allow higher humidity with
low temperature less than 40°C (eg.: humidity 90%----teperature20°C) |
11. | Installation conditions | pollution class III |
12. | Mechanical life | 0.1*106times |
13. | Electrical life | 0.03*106times |
14. | Operative frequency | 120times/hour |
15. | Transform angle | 90° |
Advantages:
Small size, multi-function, compact structure, high quality
material, good insulation, agile operation, reliability, safety,
good appearance.
Applications:
Disconnect Switches offer ideal features for their use as: ON-OFF
Switches, Emergency-Off Switches, Maintenance Switches, Safety
Switches, Distribution Switches, and Motor switches
Optional:
a. Netural contacts
b. 1NO+1NC module
c. Color of handle and surroundings
Range:
For the PC boxed rotary isolator switch, there are two series as
UKP & UKPN which are totally built by KRIPAL. UKPN is the newest
style with retaintive plastic screws. Whilst, the switchgear inside
is the same series.
Before place order, please check the differences between these two
series.
General Information:
Certificate: CCC, CE, CB, UL, Semko, KEMA, TUV, SAA, ISO9001-2000
and etc
Main market: Europe, Australia, Middle East, Asia, Africa, South of
America.
What we do by ourselves:
Mould design, mould building, mould maintenance, production of
parts & components, parts & components assembling, packing, test
for parts & finished products, publicity-enterprise planning
Workshops:
Mould-building workshop, injection workshop, punching workshop,
Instrument Workshop, Welding workshop, Assembling workshop,
Warehouse and etc
ODM:
We are providing ODM services to the super companies (more than 15)
who are top-10 electrical industrial companies in their country.
Just show us your ideas and we will present a solution.
Main business:
Circuit breakers, relay, contactor, rotary switch, industrial
switch socket, industrial plug socket float switch and junction
boxes etc.
