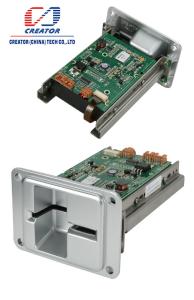

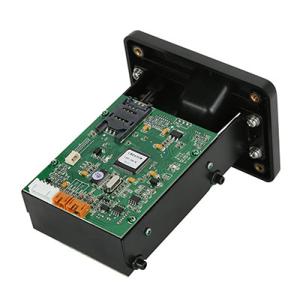

    Access Control Dip Card Reader RF EMV CPU Card Reader With PSAM Board

    Ask Lasest Price
    Brand Name : Creator
    Certification : EMV
    Model Number : CRT-288
    Price : negotiation
    Payment Terms : 100% full TT advanced payment
    • Product Details
    • Company Profile

    Access Control Dip Card Reader RF EMV CPU Card Reader With PSAM Board

    Access Control Dip RF Card Reader With PSAM Board , EMV CPU Card Reader


    Description:


    • IC&RF card read &write
    • Automatically lock the card,manual/auto card ejection
    • Special design for protecting reader from foreign object
    • Multiple bezel options

    • PSAM board option

    • EMV certified

    • Special baffle design for protecting reader from foreign object


    Specifications:


    Card type

    IC Card:

    Support ISO7816-2
    Support T=0,T=1 CPU Card
    Support T=0,T=1 SAM Card ( need to use PSAM board )
    RF Card:support ISO14443 TYPE A&B card

    Card dimension

    Width:53.92~54.18mm,Length:85.47~85.90mm
    Thickness:0.76~1mm(Factory standard 0.76mm)

    Power supply

    DC5V±5%

    Communication interface

    RS-232

    Lifetime

    IC card contact: 300,000 times min
    Lock mechanism: 500,000 times min

    Micro switch: 500,000 times min

    M.T.B.F

    >100,000 hours (Electronic components only)

    Environmental conditions

    Operation:0℃~50℃/0 ~ 90% RH (Non condensing)
    Storage:-25℃~80℃/0 ~ 95% RH (Non condensing)

    Weight

    About 240g


    Applications:


    Fuel dispensing, gaming, government, parking system, transportation AFC, utility
