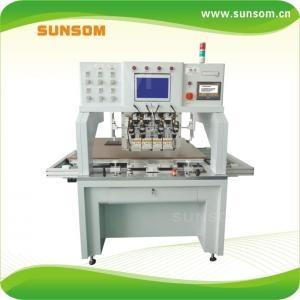

1、About the definition of Double-headed constant temperature hot
press machine equipment(the pre-press) XCH80-B2
Double-headed constant temperature hot press machine equipment(the
pre-press) XCH80-B2referred to as "hot press-press", "bonding
machine equipments" ,it using heat pipe and pulse to heat , mainly
applicable to capacitive touch screen (CTP), LCD module production
and maintenance processes FPC, COF, TAB bonding combination with
the LCD and PCB after attached a ACF. use head pressure, head
temperature, bonding time, optical alignment system bonding with
LCD FPC, ACF glue which is between the PCB so that it can conduct.
2 、About the basic parameters of Double-headed constant temperature
hot press press machine equipment(the pre-press) XCH80-B2
Input Power: AC220V 50-60Hz
Rated power: thermostatic 3.5KW, pulse 6-7.5KW
Working pressure :0.4-0 .8 Mpa
Operating modes: 7-inch HMI
Heating mode: temperature heating or pulse heating (optional)
Fixture quantity: 2 group X-Y-θ micrometer adjustable
Temperature range: RT-500 ℃ adjustable
Program control: PLC controller
Thermocouple: K type
Body main material: Steel + paint
